22583 - Toro Snow Thrower for TXL 2000 and Tracked Dingo Compact Utility Loader (SN: 320000001 - 320999999) (2020) Frame Assembly Parts Diagram

Snow Thrower for TXL 2000 and Tracked Dingo Compact Utility Loader

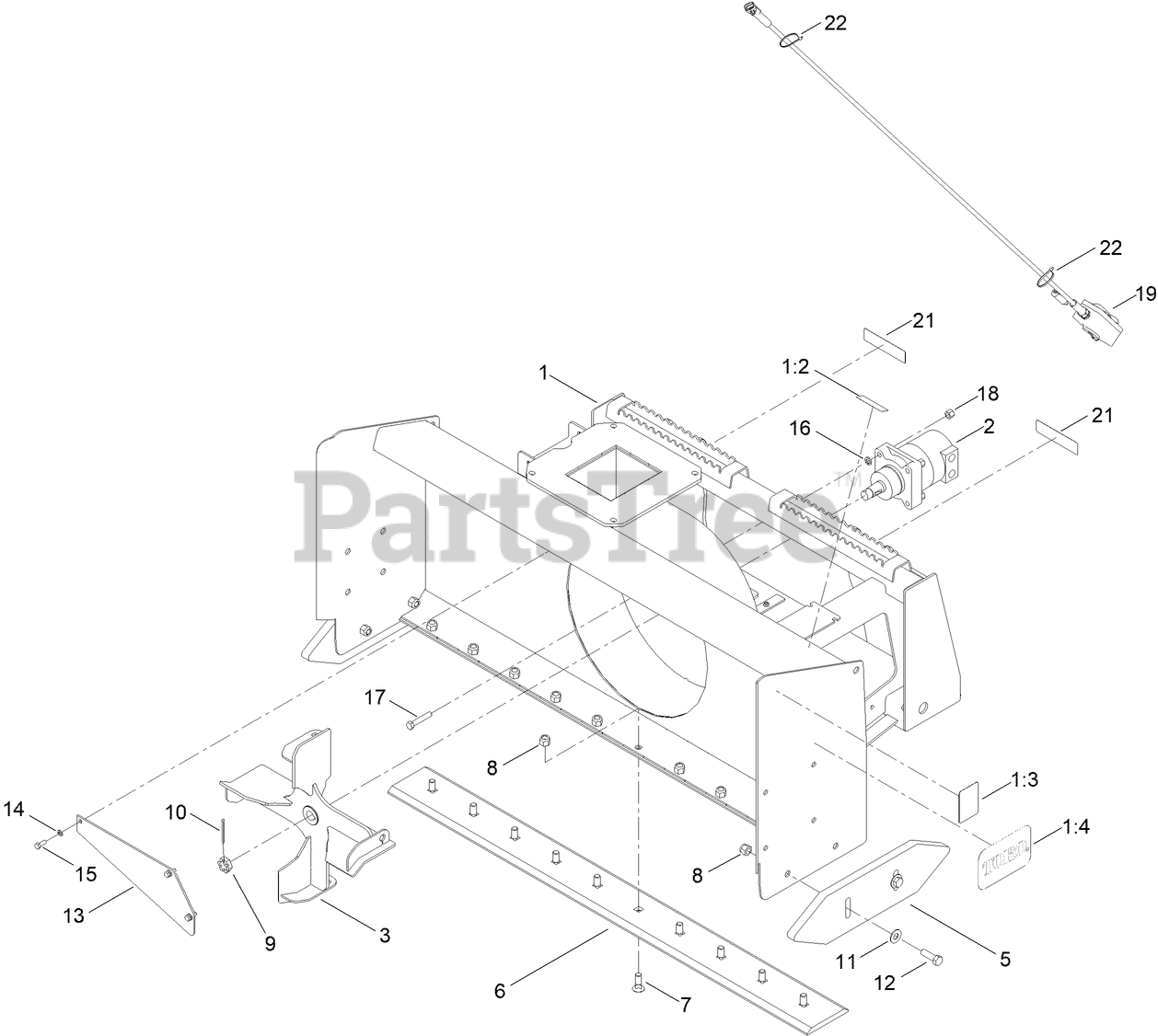

Frame Assembly Parts Diagram

  • Title

1

Toro 139-4727

FRAME-SNOWBLOWER,

$

$

Currently unavailable

1:2

Toro 139-8895

DECAL-WARNING

$

$

Currently unavailable

1:3

Toro 139-8896

DECAL-AUGER,DANGER

$

$

Currently unavailable

1:4

Toro 134-0551

DECAL

$16.99

$

Usually ships in 3-6 days

0

2

Toro 138-5171

MOTOR-HYD

$2833.99

$

Usually ships in 3-6 days

0

3

Toro 138-5172

FAN

$514.99

$

Usually ships in 3-6 days

0

4

Toro 138-5173

KEY-WOODRUFF

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0

5

Toro 138-5176

SKID-SNOW BLOWER

$183.99

$

Usually ships in 3-6 days

0

6

Toro 138-0468

EDGE

$430.99

$

Usually ships in 3-6 days

0

7

Toro 138-1364

BOLT-PLOW

$3.99

$

Usually ships in 3-6 days

0

8

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 13

0

9

Toro 138-5189

NUT-HEX, SLOTTED

$14.99

$

Usually ships in 3-6 days

0

10

Toro 138-5190

PIN-COTTER

$1.49

$

Usually ships in 3-6 days

0

11

Toro HDW14028

WASHER,5/8 FLAT,ST/ST 18-8

$6.99

$

Usually ships in 3-6 days

0

12

Toro 327-6

SCREW-HH

$14.99

$

Usually ships in 3-6 days

0

13

Toro 138-5197

COVER-FAN

$37.99

$

Usually ships in 3-6 days

0

14

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

15

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

17

Toro 325-11

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

18

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 144-2509

TORO ELC BOX 2 SWITCH ASM

$670.99

$

Usually ships in 3-6 days

0

21

Toro 131-9290

TAPE-REFLECTIVE

$18.99

$

Usually ships in 3-6 days

0

22

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 6

0
