22585 - Toro Snow Thrower for Dingo Compact Utility Loader (SN: 320000001 - 320999999) (2020) Hydraulic Assembly Parts Diagram

Snow Thrower for Dingo Compact Utility Loader

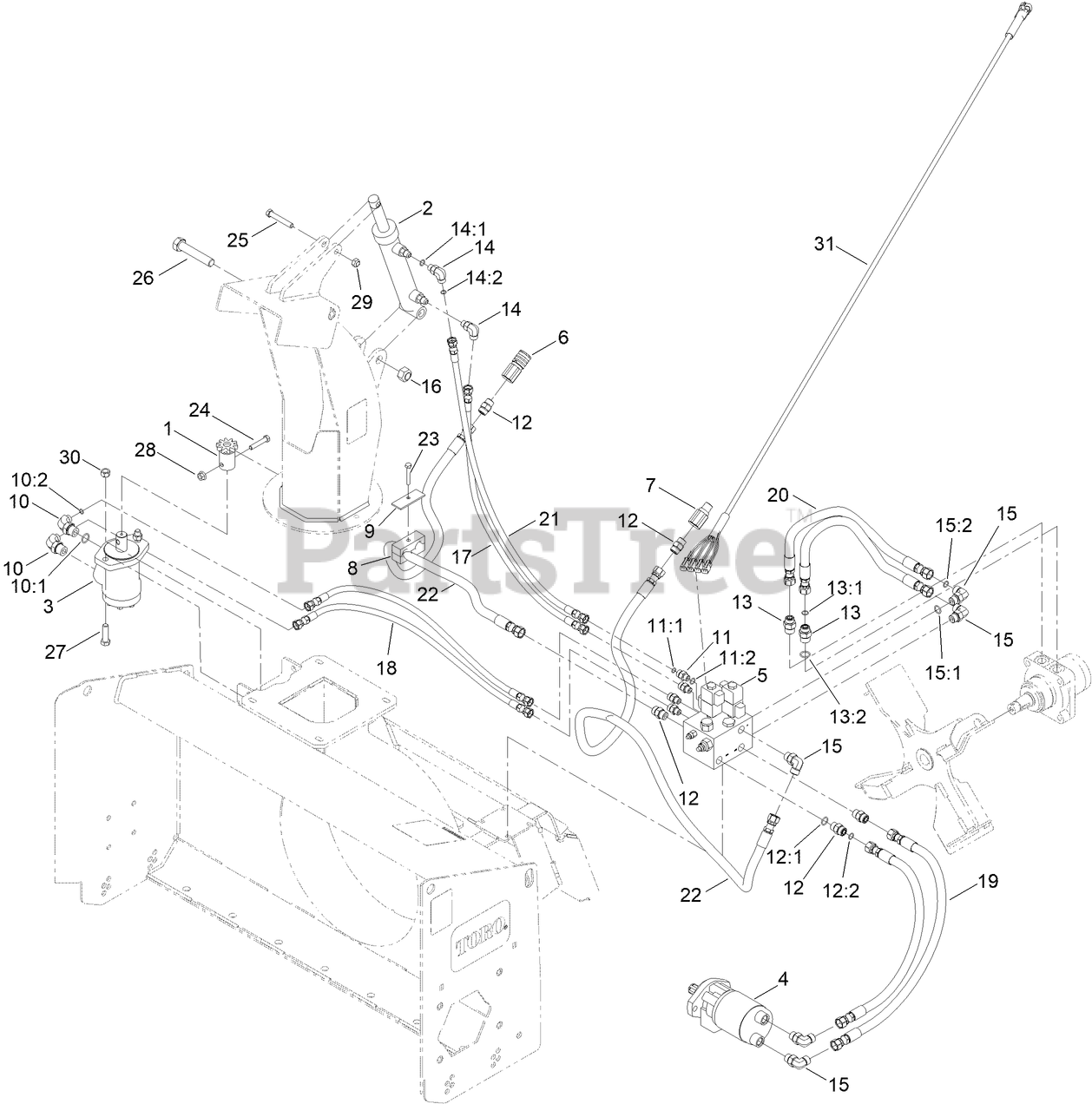

Hydraulic Assembly Parts Diagram

  • Title

1

Toro 144-1254

GEAR

$122.99

$

Usually ships in 3-6 days

0

2

Toro 144-1260

CYLINDER - ASM

$942.99

$

Usually ships in 3-6 days

0

3

Toro 144-1267

MOTOR-CHUTE

$1495.99

$

Usually ships in 3-6 days

0

4

Toro 144-1271

MOTOR-PADDLE ASM

$2826.99

$

Usually ships in 3-6 days

0

5

Toro 144-1273

VALVE ASM

$2233.99

$

Usually ships in 3-6 days

0

6

Toro 131-6058

FITTING-QUICK COUPLING

$328.99

$

Usually ships in 3-6 days

0

7

Toro 131-6057

FITTING-QUICK COUPLING

$223.99

$

Usually ships in 3-6 days

0

8

Toro 137-3896

CLAMP

$12.99

$

Usually ships in 3-6 days

0

9

Toro 137-3898

BRACKET-CLAMP

$3.99

$

Usually ships in 3-6 days

0

10

Toro 340-130

FITTING-ELBOW 90

$128.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

10:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

11

Toro 340-2

FITTING-STRAIGHT

$11.99

$

In Stock, only 2 left!

0

11:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

11:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

12

Toro 340-4

FITTING-STRAIGHT

$11.99

$

In Stock, only 3 left!

0

12:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

12:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

13

Toro 340-6

FITTING-STRAIGHT

$19.99

$

In Stock, only 2 left!

0

13:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

13:2

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 5

0

14

Toro 340-77

FITTING-ELBOW, 90 DEG

$26.99

$

In Stock, only 1 left!

0

14:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 20+

0

14:2

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

15

Toro 340-98

FITTING-ELBOW, 90 DEG

$32.99

$

In Stock, only 1 left!

0

15:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

15:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 20+

0

16

Toro 120-7252

NUT-LOCK

$3.49

$

Usually ships in 3-6 days

0

17

Toro 144-1276

HOSE ASM - HYD

$111.99

$

Usually ships in 3-6 days

0

18

Toro 144-1277

HOSE ASM - HYD

$97.99

$

Usually ships in 3-6 days

0

19

Toro 144-1278

HOSE ASM - HYD

$103.99

$

Usually ships in 3-6 days

0

20

Toro 144-1279

HOSE ASM - HYD

$99.99

$

Usually ships in 3-6 days

0

21

Toro 144-1295

HOSE ASM - HYD

$117.99

$

Usually ships in 3-6 days

0

22

Toro 144-1296

HOSE ASM - HYD

$139.99

$

Usually ships in 3-6 days

0

23

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 10

0

24

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 324-11

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

26

Toro 328-7

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

27

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 5

0

28

Toro 32128-29

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

29

Toro 32152-9

NUT-HEX

$9.49

$

Usually ships in 3-6 days

0

30

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 18

0

31

Toro 144-2521

HARNESS-WIRE

$367.99

$

Usually ships in 3-6 days

0
