22587 (TX 1000) - Toro Turbo Narrow Track Dingo Compact Utility Loader (SN: 416800000 - 999999999) Controls Assembly Parts Diagram

Turbo Narrow Track Dingo Compact Utility Loader

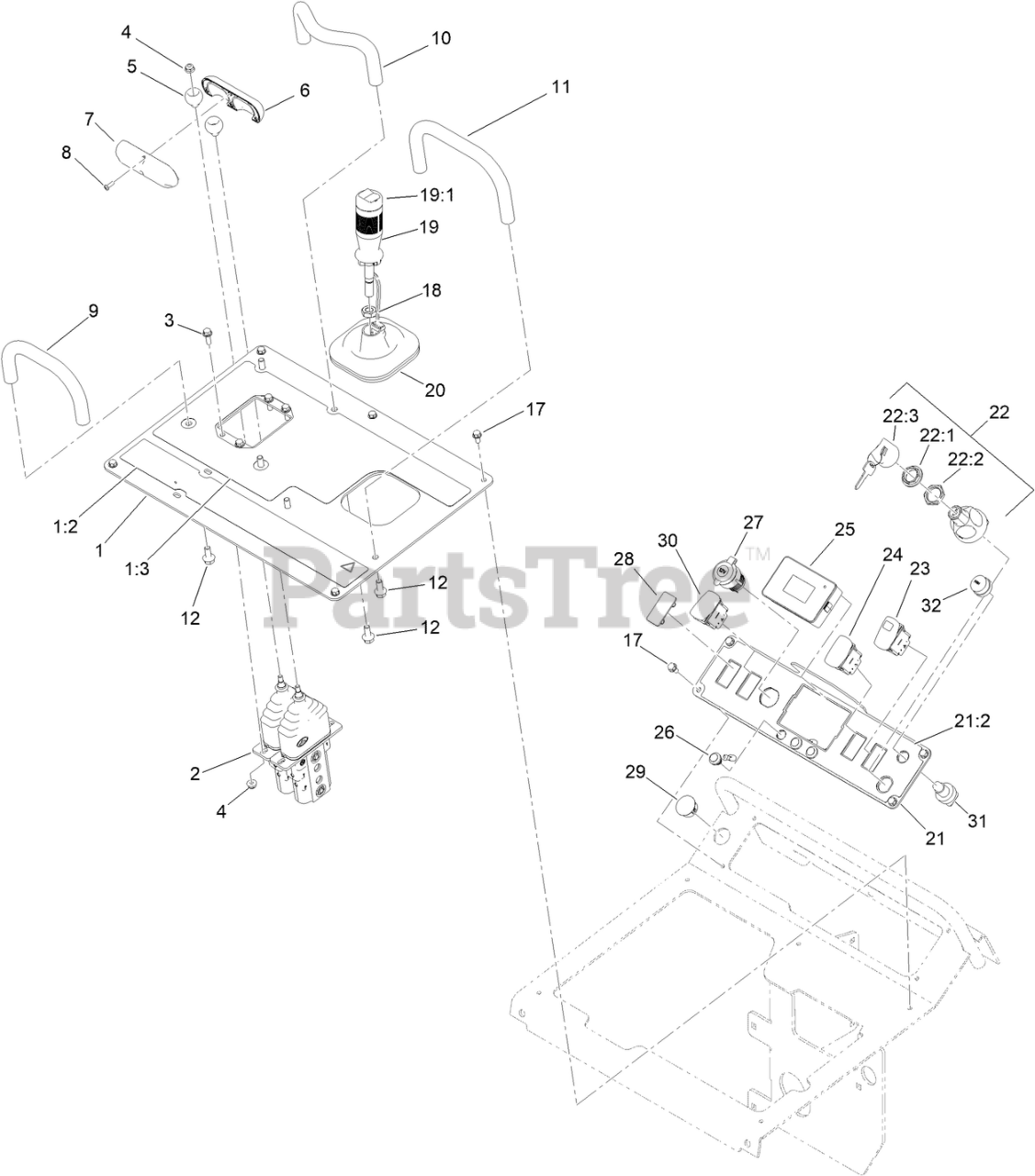

Controls Assembly Parts Diagram

  • Title

1

Toro 145-4479

PLATE ASM-CONTROLS

$197.99

$

Usually ships in 0 days

0

1:2

Toro 147-6765

DECAL-SAFETY

$8.49

$

Usually ships in 0 days

0

1:3

Toro 147-6883

DECAL-CONTROLS

$26.99

$

Usually ships in 0 days

0

2

Toro 145-3279

VALVE-CONTROL (TRACTION)

$1371.99

$

Usually ships in 0 days

0

3

Toro 115-5103

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

4

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Toro 130-7723

BALL-TRACTION

$12.99

$

In Stock, only 4 left!

0

6

Toro 130-7692

HANDLE-CONTROL

$10.99

$

In Stock, only 2 left!

0

7

Toro 131-9162

HANDLE-TRACTION

$10.99

$

In Stock, only 2 left!

0

8

Toro 94-6961

SCREW

$1.49

$

In Stock, Qty 20+

0

9

Toro 112-2620

BAR-REFERENCE

$67.99

$

Usually ships in 3-6 days

0

10

Toro 138-0791

BAR-REFERENCE

$67.99

$

Usually ships in 3-6 days

0

11

Toro 145-4760

BAR-REFERENCE

$90.99

$

Usually ships in 0 days

0

12

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

17

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

18

Toro 51-2070

NUT

$0.99

$

Usually ships in 3-6 days

0

19

Toro 140-5742

HANDLE-AUXILIARY ASM

$804.99

$

Usually ships in 0 days

0

19:1

Toro 147-6873

BOOT-SWITCH, JOYSTICK

$

$

Currently unavailable

20

Toro 145-4746

BOOT-JOYSTICK

$20.99

$

Usually ships in 0 days

0

21

Toro 145-4480

PLATE ASM-CONSOLE

$98.99

$

Usually ships in 0 days

0

21:2

Toro 145-4484

DECAL-CONSOLE

$15.99

$

Usually ships in 0 days

0

22

Toro 121-5159

IGNITION SWITCH ASM

$129.99

$

In Stock, only 1 left!

0

22:1

Toro 121-5160

NUT-HEX

$121.99

$

Usually ships in 3-6 days

0

22:2

Toro 122-2704

NUT-FACE, M22 (PLASTIC)

$2.49

$

Usually ships in 0 days

0

22:3

Toro 121-5162

SET-KEY, IGNITION

$36.99

$

Usually ships in 3-6 days

0

23

Toro 122-2719

SWITCH-ROCKER, ON-NONE-(ON)

$60.99

$

Usually ships in 0 days

0

24

Toro 122-3203

SWITCH-ROCKER,(ON)-OFF-(ON)

$50.99

$

Usually ships in 0 days

0

25

Toro 122-1201

TDM 2002

$222.99

$

Usually ships in 3-6 days

0

26

Toro 136-9678

SWITCH-PUSHBUTTON

$61.99

$

Usually ships in 3-6 days

0

27

Toro 109-9376

RECEPTACLE-12V

$54.99

$

Usually ships in 3-6 days

0

28

Toro 99-7420

PLUG-HOLE

$8.99

$

Usually ships in 3-6 days

0

29

Toro 127-1842

PLUG-DOME

$

$

Currently unavailable

30

Toro 122-3145

SWITCH-ROCKER, ON - NONE - ON

$46.99

$

Usually ships in 0 days

0

31

Toro 112-3324

SWITCH-HORN

$51.99

$

Usually ships in 3-6 days

0

32

Toro 112-3313

NUT-WEATHERPROOF

$7.49

$

Usually ships in 3-6 days

0
