22587 (TX 1000) - Toro Turbo Narrow Track Dingo Compact Utility Loader (SN: 416800000 - 999999999) Frame Assembly Parts Diagram

Turbo Narrow Track Dingo Compact Utility Loader

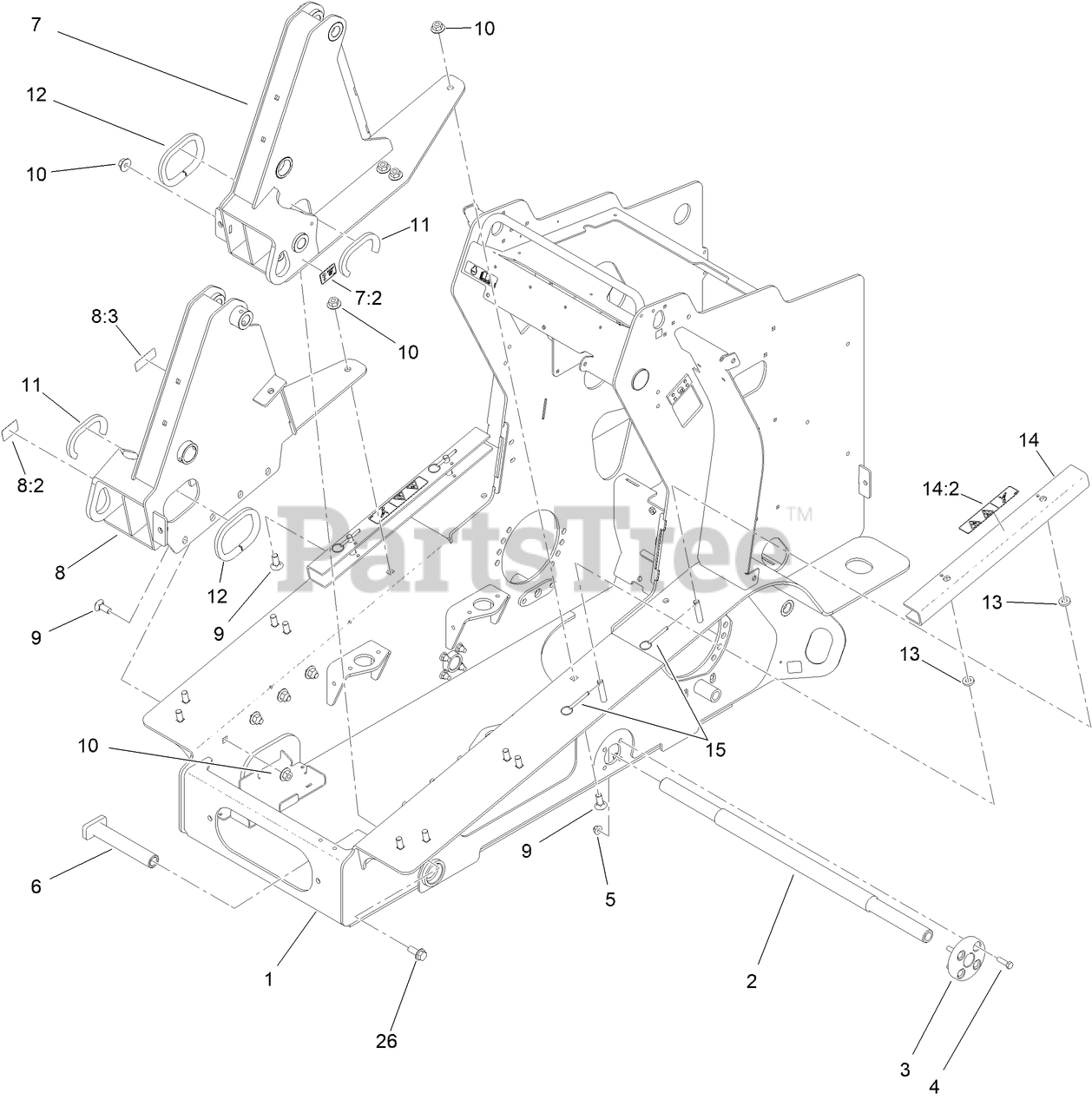

Frame Assembly Parts Diagram

  • Title

1

Toro 145-4421

MAIN FRAME ASM

$

$

Not available

2

Toro 125-0425

SHAFT-TRACK

$348.99

$

Usually ships in 3-6 days

0

3

Toro 132-9074

HUB-SHAFT

$144.99

$

Usually ships in 3-6 days

0

4

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 145-3322

PIN-TRACK

$32.99

$

Usually ships in 0 days

0

7

Toro 145-4471

TOWER ASM-LH

$1189.99

$

Usually ships in 0 days

0

7:2

Toro 147-6707

DECAL-LIFT, TIE DOWN

$1.99

$

Usually ships in 0 days

0

8

Toro 145-4472

TOWER ASM-RH

$1189.99

$

Usually ships in 0 days

0

8:2

Toro 147-6707

DECAL-LIFT, TIE DOWN

$1.99

$

Usually ships in 0 days

0

8:3

Toro 115-2047

DECAL-SURFACE, HOT

$18.99

$

In Stock, only 1 left!

0

9

Toro 3233-1

SCREW-CARR

$7.99

$

Usually ships in 3-6 days

0

10

Toro 32128-52

NUT-LOCK, FLANGE

$2.49

$

Usually ships in 3-6 days

0

11

Toro 133-8571

TRIM-SEAL

$7.99

$

Usually ships in 3-6 days

0

12

Toro 133-8572

TRIM-SEAL

$9.99

$

Usually ships in 3-6 days

0

13

Toro 83-1470

WASHER-NEOPRENE

$3.49

$

Usually ships in 3-6 days

0

14

Toro 130-5315

ARM-LOCKING

$93.99

$

Usually ships in 3-6 days

0

14:2

Toro 115-4858

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

15

Toro 108-0094

PIN-COTTERLESS

$5.49

$

Usually ships in 3-6 days

0

26

Toro 3234-38

SCREW-HHF

$6.49

$

In Stock, only 3 left!

0
