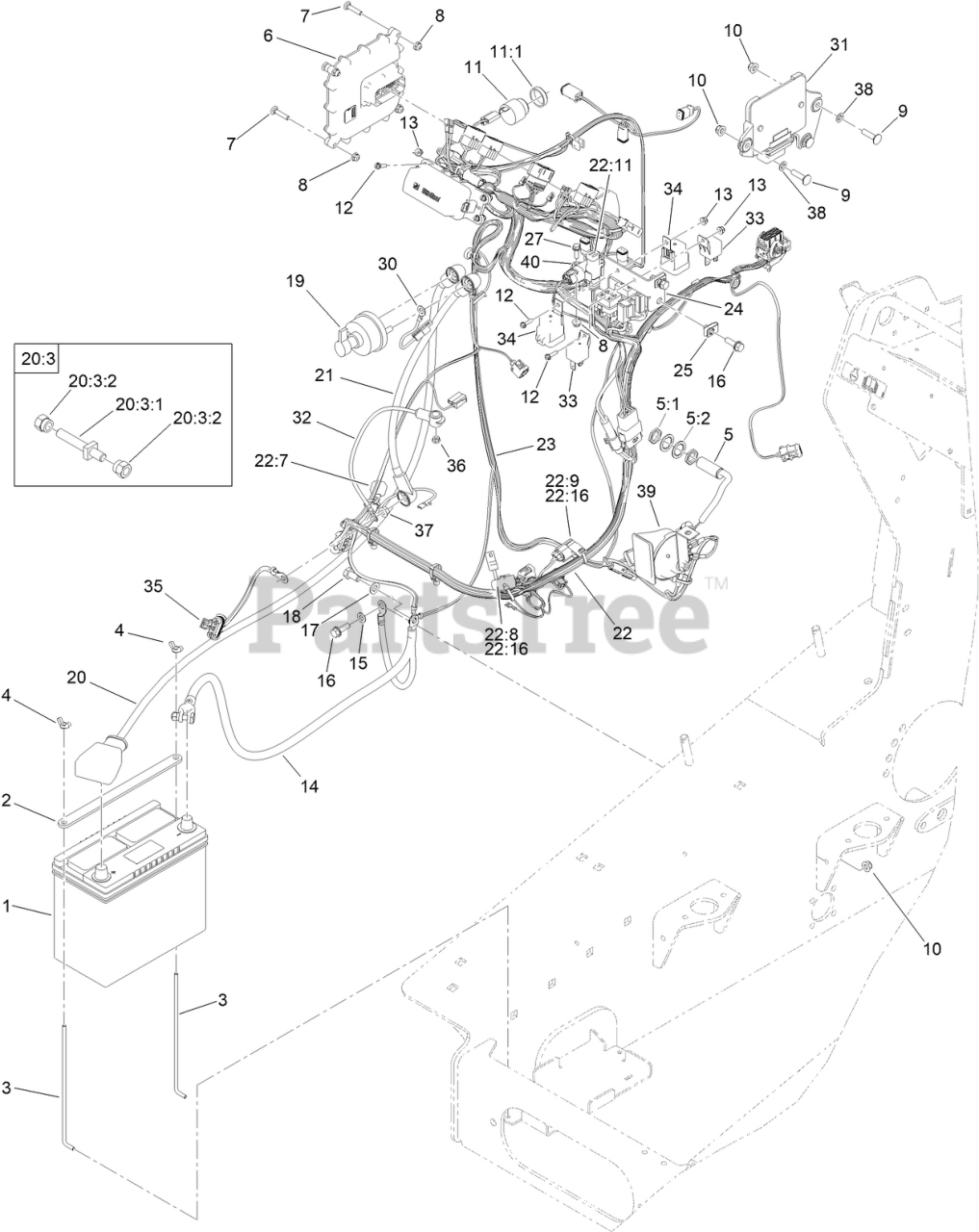

22588 (TX 1000) - Toro Turbo Wide Track Dingo Compact Utility Loader (SN: 415300000 - 416399999) Electrical Assembly Parts Diagram

Turbo Wide Track Dingo Compact Utility Loader

Electrical Assembly Parts Diagram

  • Title

1

Toro 140-5760

BATTERY-GROUP 51

$

$

Currently unavailable

2

Toro 145-4426-03

PLATE-HOLD DOWN, BATTERY

$15.99

$

Usually ships in 0 days

0

3

Toro 136-5756

ROD-HOLD DOWN, BATTERY

$13.99

$

Usually ships in 3-6 days

0

4

Toro 1-803038

NUT-WING

$1.49

$

Usually ships in 3-6 days

0

5

Toro 115-5300

PROXIMITY SWITCH ASM

$161.99

$

In Stock, Qty 15

0

5:1

Toro 117-3207

NUT-HEX

$22.99

$

In Stock, only 2 left!

0

5:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$11.99

$

In Stock, only 4 left!

0

6

Toro 127-2770

CONTROLLER

$1723.99

$

Usually ships in 3-6 days

0

7

Toro 3229-3

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

8

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 80-9330

AUDIO ALARM ASM

$155.99

$

Usually ships in 3-6 days

0

11:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$6.49

$

Usually ships in 3-6 days

0

12

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, only 2 left!

0

13

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

14

Toro 105-0115

CABLE-BATTERY, NEGATIVE

$121.99

$

Usually ships in 3-6 days

0

15

Toro 120-9683

WASHER-PLAIN

$3.49

$

Usually ships in 3-6 days

0

16

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

17

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

18

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

19

Toro AUR52278

SWITCH-DISCONNECT, MASTER

$169.99

$

Usually ships in 3-6 days

0

20

Toro 122-2244

CABLE-BATTERY, RD ASM

$109.99

$

Usually ships in 3-6 days

0

20:3

Toro 112-9921

BOLT ASM

$33.99

$

Usually ships in 3-6 days

0

20:3:1

Toro 32180-107

BOLT-CLAMP, BATTERY

$

$

Currently unavailable

20:3:2

Toro 32180-108

NUT-CLAMP, BATTERY

$

$

Currently unavailable

21

Toro 122-2245

CABLE-BATTERY, RD ASM

$44.99

$

Usually ships in 3-6 days

0

22

Toro 122-2548

HARNESS-WIRE, ENGINE

$570.99

$

Usually ships in 0 days

0

22:7

Toro 100-4918

DIODE

$23.99

$

In Stock, Qty 20+

0

22:8

Toro 121-8861

FUSE-MINI BLADE, 2 AMP

$4.99

$

Usually ships in 3-6 days

0

22:9

Toro 121-8866

FUSE-MINI BLADE, 10 AMP

$5.99

$

Usually ships in 3-6 days

0

22:11

Toro 32160-359

CONNECTOR (6M)

$7.49

$

Usually ships in 0 days

0

22:16

Toro 32180-101

COVER-FUSE, SINGLE

$14.99

$

Usually ships in 3-6 days

0

23

Toro 122-2549

HARNESS-WIRE, MAIN

$1215.99

$

Usually ships in 0 days

0

24

Toro 145-4397-0P

BRACKET-RELAY

$25.99

$

Usually ships in 0 days

0

25

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

27

Toro 115-5103

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

30

Toro 136-4862

HARNESS-WIRE, FUSIBLE LINK

$24.99

$

Usually ships in 3-6 days

0

31

Toro 144-4448

CONTROLLER-ENGINE

$1485.99

$

Usually ships in 0 days

0

32

Toro 100-5552

HARNESS-WIRE

$78.99

$

Usually ships in 3-6 days

0

33

Toro 99-7435

RELAY

$49.99

$

In Stock, only 2 left!

0

34

Toro 99-7430

RELAY-MINI

$26.99

$

In Stock, only 2 left!

0

35

Toro 99-3441

HARNESS-WIRE, FUSIBLE LINK

$172.99

$

Usually ships in 3-6 days

0

36

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

37

Toro 33004-00

NUT-HF

$0.99

$

In Stock, Qty 9

0

38

Toro 109-5667

RING-RETAINING, BOLT

$6.99

$

In Stock, only 2 left!

0

39

Toro 116749

Horn And Bracket Assembly (Inc. Ref.# 44 45)

$148.99

$

Usually ships in 3-6 days

0

40

Toro 126-9261

SENSOR-ATM

$211.99

$

Usually ships in 3-6 days

0
