226 (190-226-000) - Yard-Man Front Bumper Front Bumper I Parts Diagram

Front Bumper

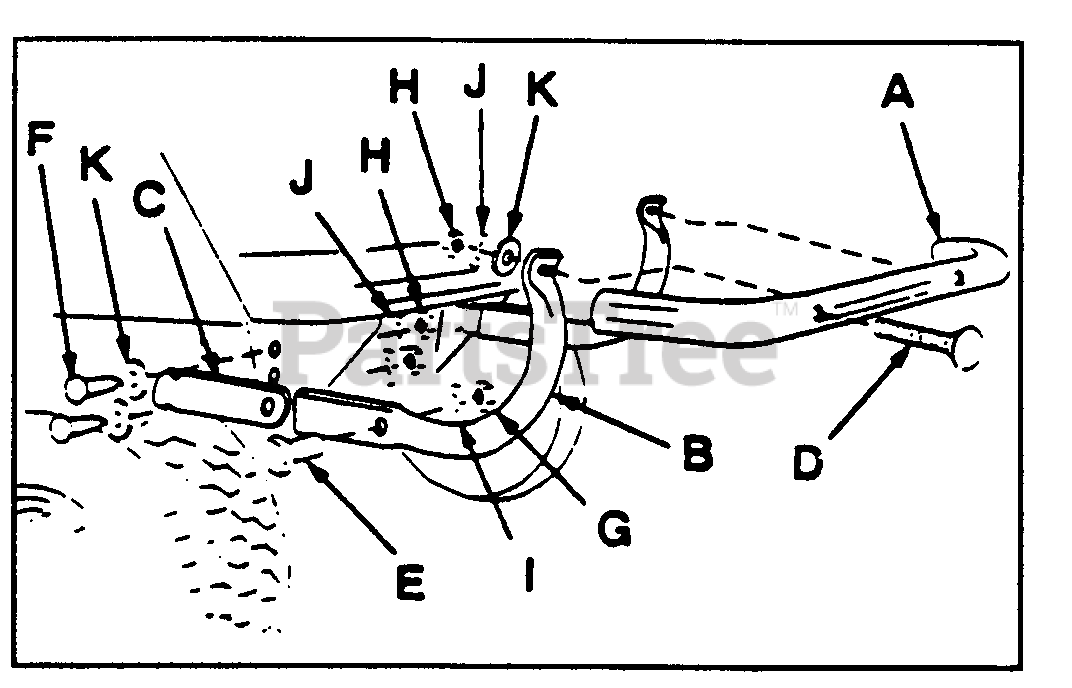

Front Bumper I Parts Diagram

  • Title

A

Cub Cadet 46080

Bumper Tube

Note: (Fig. 2)

$

$

Currently unavailable

B

Cub Cadet 46079

Bumper Leg

Note: (Fig. 2)

$

$

Currently unavailable

C

Cub Cadet 23990

Bumper Mount Bracket

$

$

Currently unavailable

D

Cub Cadet 44261

Carriage Bolt 5/16" x 2" Lg.

$

$

Currently unavailable

E

Cub Cadet 43001

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$3.99

$

In Stock, Qty 20+

0

F

Cub Cadet 44283

Tap Bolt 5/16-18 x 1" Lg.

$

$

Currently unavailable

G

Cub Cadet 43015

Hex Nut 3/8-16 Thd.
(Superseded to 712-0798)

$3.99

$

In Stock, only 2 left!

0

H

Cub Cadet 43083

Hex Nut 5/16-18 Thd.

$

$

Currently unavailable

I

Cub Cadet 43003

Lock Washer 3/8"
(Superseded to 936-0169)

$3.49

$

In Stock, Qty 20+

0

J

Cub Cadet 43086

Lock Washer 5/16"

$

$

Currently unavailable

K

Cub Cadet 43081

Washer, 5/16" Std.

$

$

Currently unavailable
