226 HS 99 S - Husqvarna Hedge Trimmer (SN: 20080500001 - 20130500000) CRANKCASE & CLUTCHDRUM Parts Diagram

Hedge Trimmer

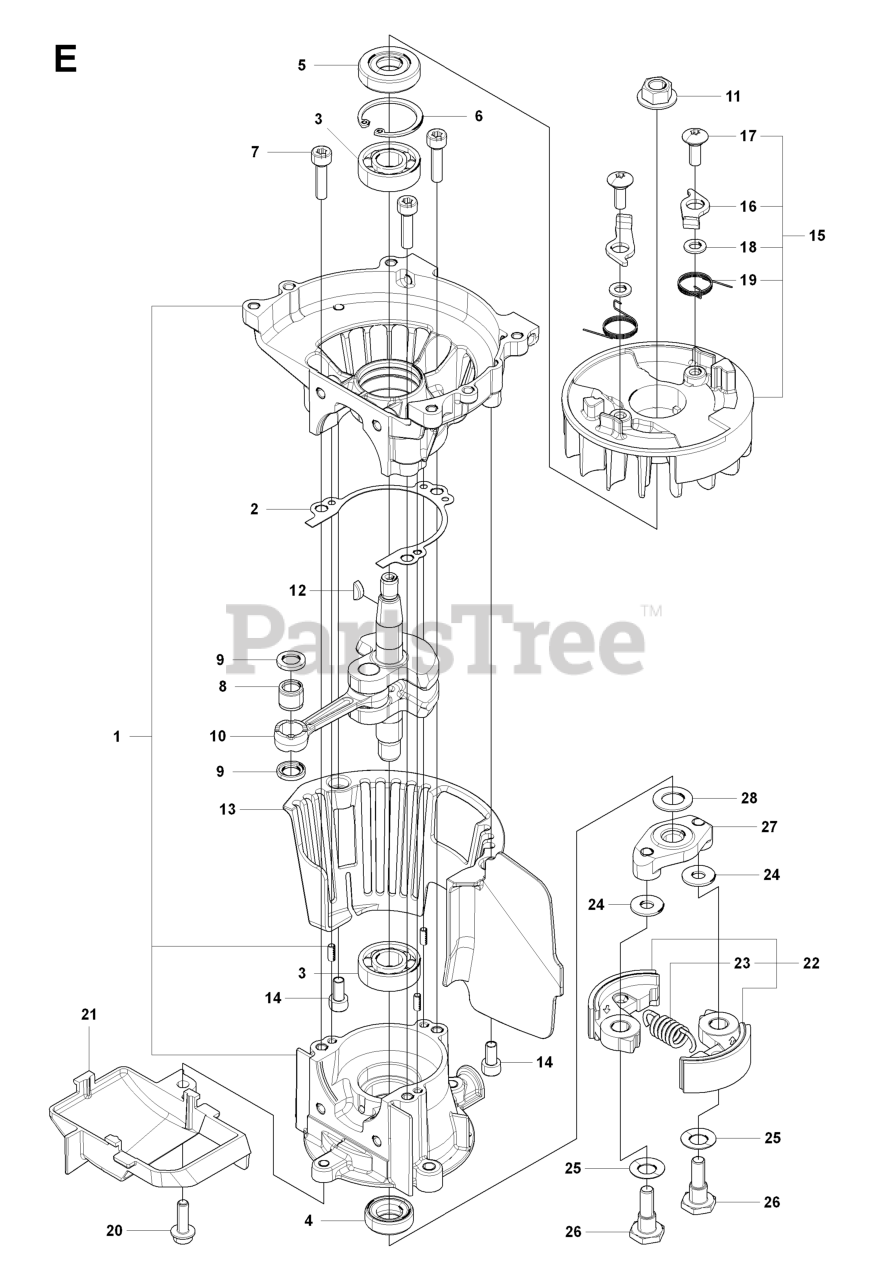

CRANKCASE & CLUTCHDRUM Parts Diagram

  • Title

10

Husqvarna 506651801

CRANKSHAFT COMP

$133.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506612401

NUT M8XP1.0

$

$

Not available

20

Husqvarna 506616501

BOLT TORX
(Superseded to 521346501)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 506656001

ROTOR ASSY

$48.99

$

Usually ships in 3-10 days

0

4

Husqvarna 506615701

SEAL
(Superseded to 521340001)

$10.99

$

In Stock, Qty 5

0

5

Husqvarna 506612901

SEAL

$6.49

$

In Stock, only 2 left!

0

22

Husqvarna 506629401

SHOE COMP

$18.99

$

In Stock, only 1 left!

0

23

Husqvarna 506685801

SPRING

$4.99

$

In Stock, Qty 11

0

27

Husqvarna 506652101

PLATE CLUTCH

$8.99

$

Usually ships in 3-10 days

0

26

Husqvarna 506652201

SCREW

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 506685001

BEARING

$10.99

$

In Stock, only 1 left!

0

24

Husqvarna 506611001

WASHER

$

$

Not available

2

Husqvarna 506684801

GASKET, CASE

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 506614101

PAWL

$8.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506613801

WASHER

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 506610701

KEY

$

$

Not available

9

Husqvarna 506610901

RP WASHER
(Superseded to 505041001)

$4.99

$

In Stock, only 3 left!

0

13

Husqvarna 506629601

PLATE

$7.99

$

In Stock, only 1 left!

0

7

Husqvarna 506616201

RP BOLT TORX M5XL20 T27
(Superseded to 521345401)

$6.49

$

In Stock, Qty 12

0

28

Husqvarna 506614201

WASHER

$6.49

$

In Stock, only 4 left!

0

6

Husqvarna 506609901

RING

$4.99

$

In Stock, only 1 left!

0

3

Husqvarna 506610301

BEARING

$12.99

$

In Stock, Qty 8

0

14

Husqvarna 506616101

BOLT TORX M5XL10 T27

$

$

Not available

21

Husqvarna 506657101

DELFECTOR

$

$

Not available

17

Husqvarna 506614301

SCREW

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 506614401

WASHER 5X10X10

$4.99

$

In Stock, Qty 5

0

1

Husqvarna 506638401

CRANKCASE COMP

$72.99

$

Usually ships in 3-10 days

0

19

Husqvarna 506674301

SPRING

$10.99

$

Usually ships in 3-10 days

0
