22600 (SGR-6) - Toro Stump Grinder (SN: 314000001 - 314999999) (2014) ENGINE AND FRAME ASSEMBLY Parts Diagram

Stump Grinder

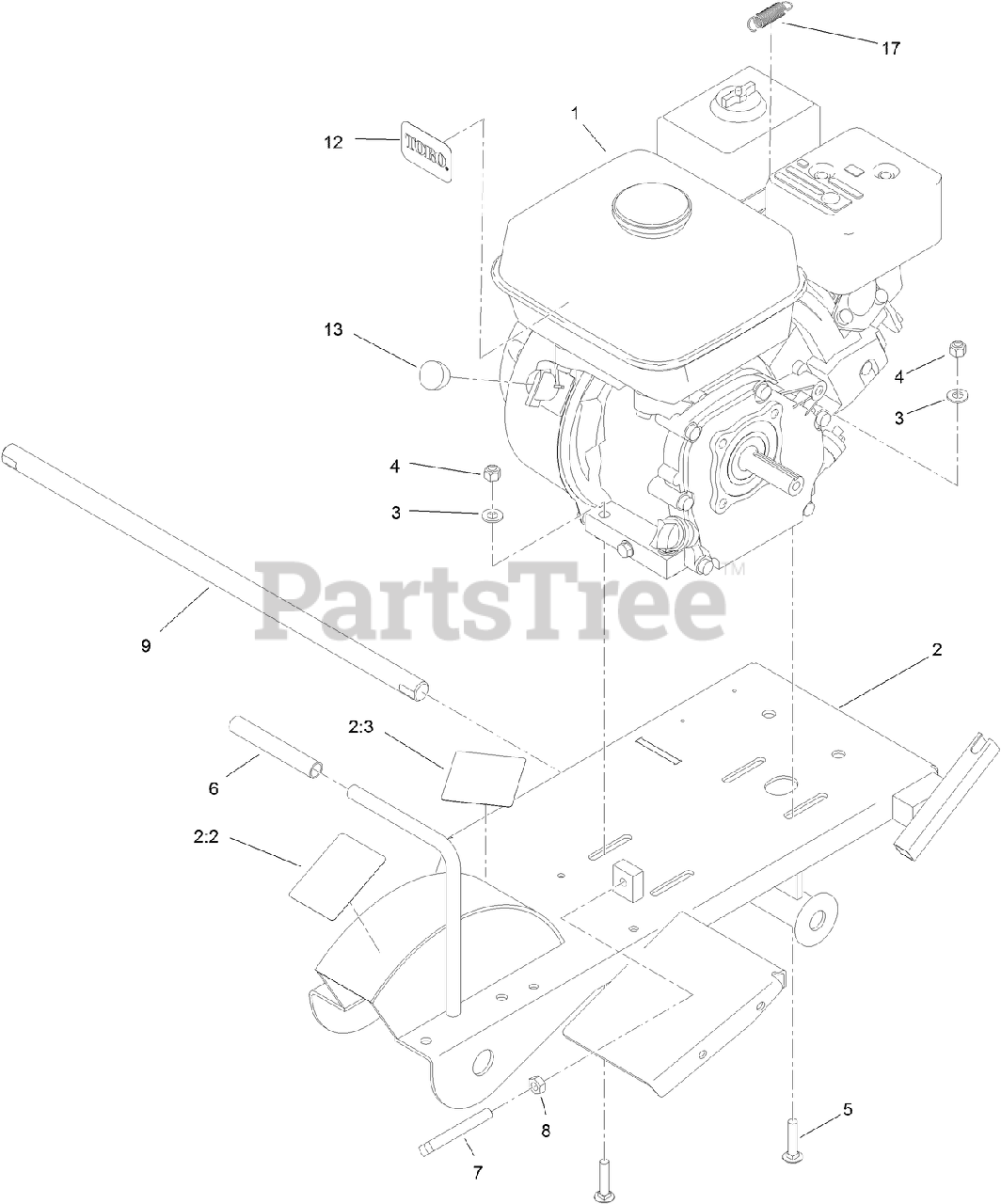

ENGINE AND FRAME ASSEMBLY Parts Diagram

  • Title

1

ENGINE-HONDA, GX200UT QXC9

Note: Not serviced separately

$

$

Not available

1

ENGINE-HONDA, GX200UT QXC9

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Toro 121-4393

FRAME ASM
(Superseded to 132-3965)

$636.99

$

Usually ships in 3-6 days

0

2:2

Toro 119-4690

DECAL-DANGER

$7.99

$

Usually ships in 3-6 days

0

2:3

Toro 119-4693

DECAL-CAUTION

$4.99

$

Usually ships in 3-6 days

0

3

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 3230-4

BOLT-CARR

$4.49

$

Usually ships in 3-6 days

0

6

Toro 112-2605

GRIP-RUBBER

$7.49

$

Usually ships in 3-6 days

0

7

Toro 119-4729

SCREW-SET, SQH

$4.99

$

Usually ships in 3-6 days

0

8

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 19

0

9

Toro 120-1795

BAR-AXLE, WHEEL

$52.99

$

Usually ships in 3-6 days

0

12

Toro 98-3206

Decal

$2.49

$

In Stock, only 2 left!

0

13

Toro 120-1887

PLUG-ENGINE

$19.99

$

Usually ships in 3-6 days

0

17

Toro 119-4609

SPRING-EXTENSION

$11.99

$

Usually ships in 3-6 days

0
