22600 (SGR-6) - Toro Stump Grinder (SN: 316000001 - 316999999) (2016) ENGINE AND FRAME ASSEMBLY Parts Diagram

Stump Grinder

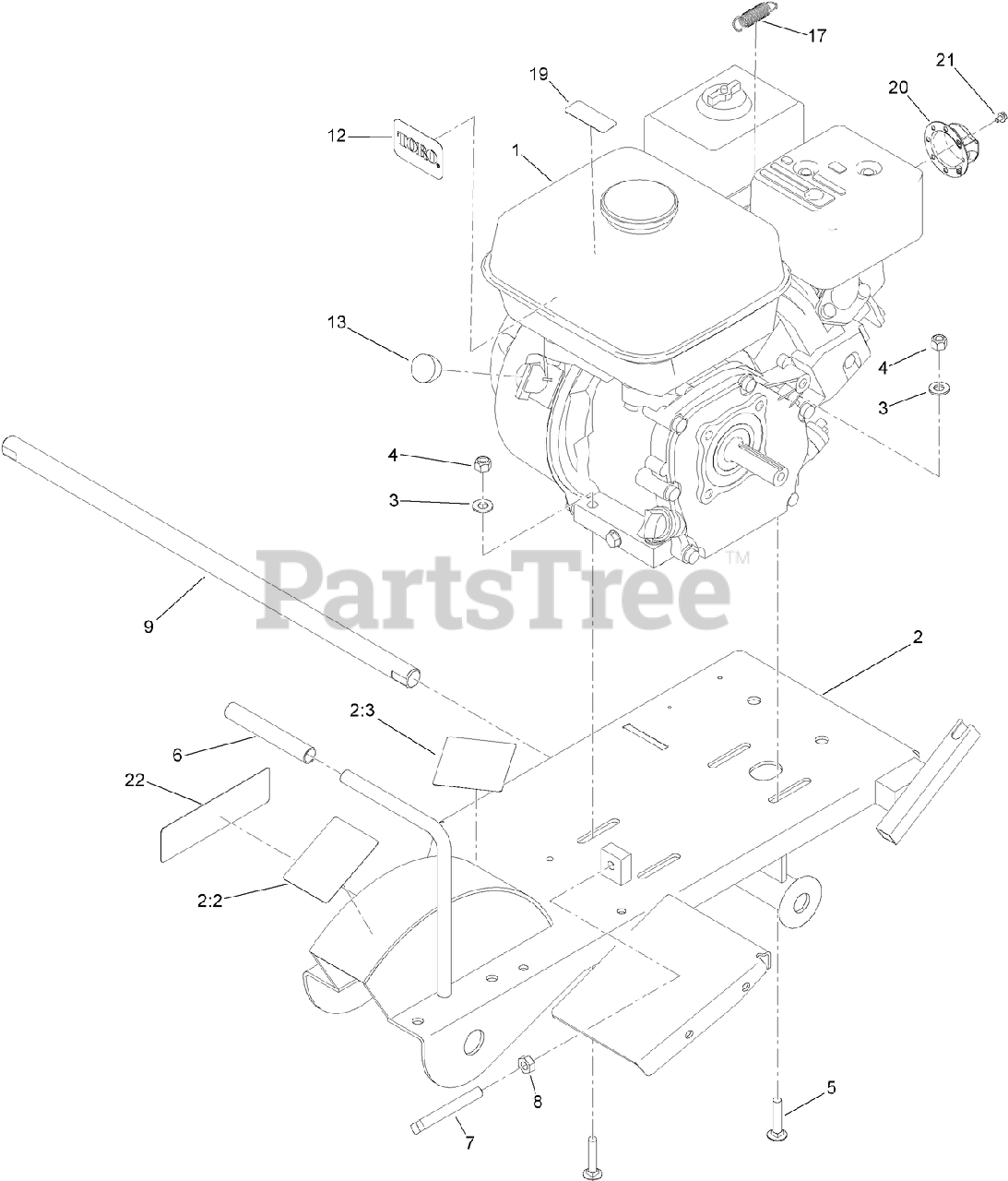

ENGINE AND FRAME ASSEMBLY Parts Diagram

  • Title

1

ENGINE-HONDA, GX200UT QXC9

Note: Not serviced separately

$

$

Not available

1

ENGINE-HONDA, GX200UT QXC9

Note: Obtain parts from www.honda-engines.com

$

$

Not available

2

Toro 132-3965

FRAME ASM

$606.99

$

Usually ships in 3-6 days

0

2:2

Toro 119-4693

DECAL-CAUTION

$5.49

$

Usually ships in 3-6 days

0

2:3

Toro 119-4690

DECAL-DANGER

$7.99

$

Usually ships in 3-6 days

0

3

Toro 3256-45

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 3230-4

BOLT-CARR

$4.49

$

In Stock, Qty 10

0

6

Toro 112-2605

GRIP-RUBBER

$7.49

$

Usually ships in 3-6 days

0

7

Toro 119-4729

SCREW-SET, SQH

$4.99

$

Usually ships in 3-6 days

0

8

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

9

Toro 120-1795

BAR-AXLE, WHEEL

$49.99

$

Usually ships in 3-6 days

0

12

Toro 98-3206

Decal

$2.49

$

In Stock, only 2 left!

0

13

Toro 120-1887

PLUG-ENGINE

$18.99

$

Usually ships in 3-6 days

0

17

Toro 119-4609

SPRING-EXTENSION

$11.99

$

Usually ships in 3-6 days

0

19

Toro 130-8322

DECAL-WARNING, ETHANOL

$2.49

$

Usually ships in 3-6 days

0

20

Toro 125-3866

DEFLECTOR

$47.99

$

Usually ships in 3-6 days

0

21

Toro 127-7578

SCREW-HWH

$4.49

$

Usually ships in 3-6 days

0

22

Toro 132-4004

DECAL-ROTATE TOOTH

$24.99

$

Usually ships in 3-6 days

0
