22604 - Toro Brush Chipper (SN: 310000001 - 310999999) (2010) CUTTER WHEEL ASSEMBLY Parts Diagram

Brush Chipper

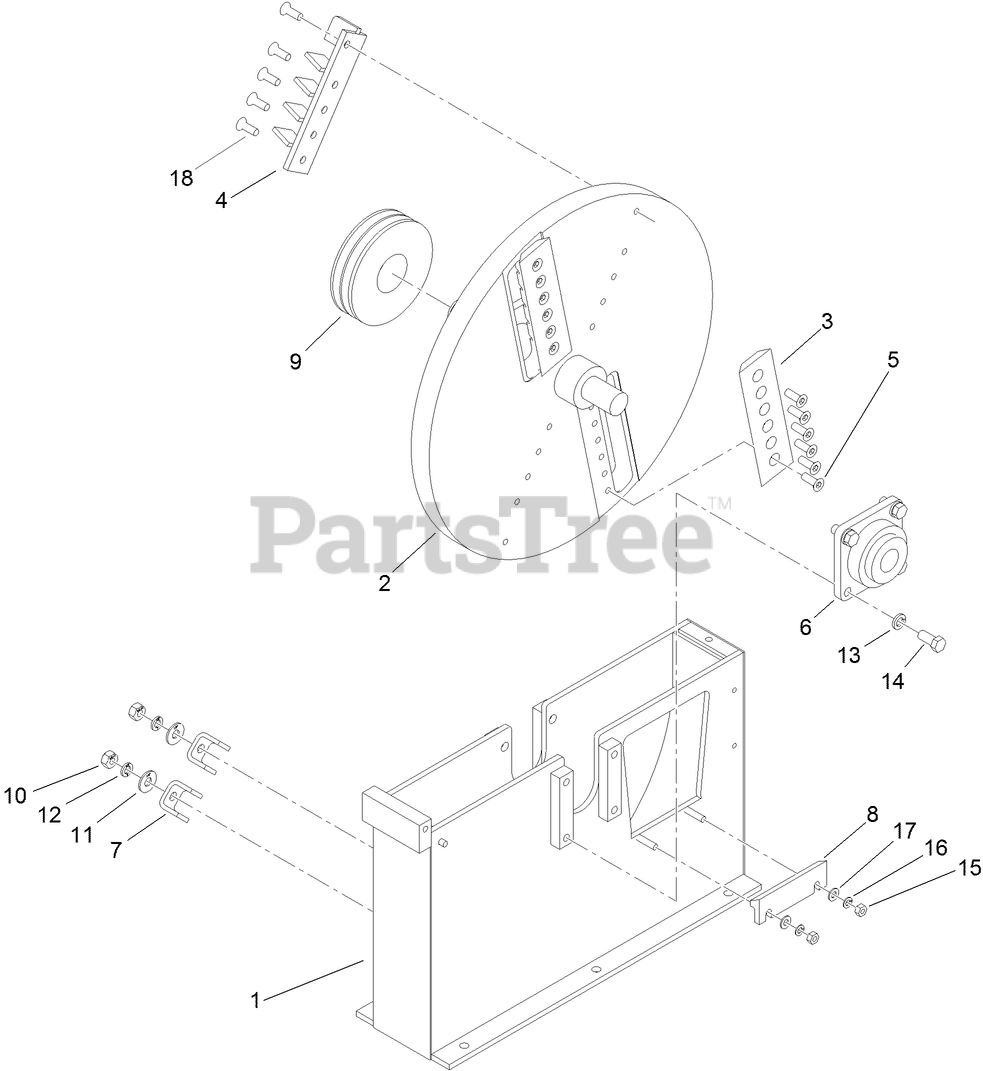

CUTTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro W000052

CHASSIS ASM

$

$

Currently unavailable

2

Toro 120-1554

FLYWHEEL ASM

$

$

Not available

3

Toro FS000219

BLADE-CHIPPER

$325.99

$

Usually ships in 3-6 days

0

4

Toro W000051

CHOPPER ASM

$

$

Not available

5

Toro 120-1882

SCREW-HSFH

$

$

Not available

6

Toro 120-1538

BEARING ASM

$108.99

$

Usually ships in 3-6 days

0

7

Toro FS000202

PLATE-CHOPPER, STATIONARY
(Superseded to 120-1465)

$

$

Not available

8

Toro 120-1483

BLOCK-CUTTER

$181.99

$

Usually ships in 3-6 days

0

9

Toro A000031

PULLEY ASM

$

$

Not available

10

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 10

0

11

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

13

Toro 3253-23

WASHER-LOCK/SP

$5.49

$

In Stock, only 3 left!

0

14

Toro 120-3739

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

15

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

16

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0

17

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

18

Toro 120-1881

BOLT-HSFH

$5.99

$

Usually ships in 3-6 days

0
