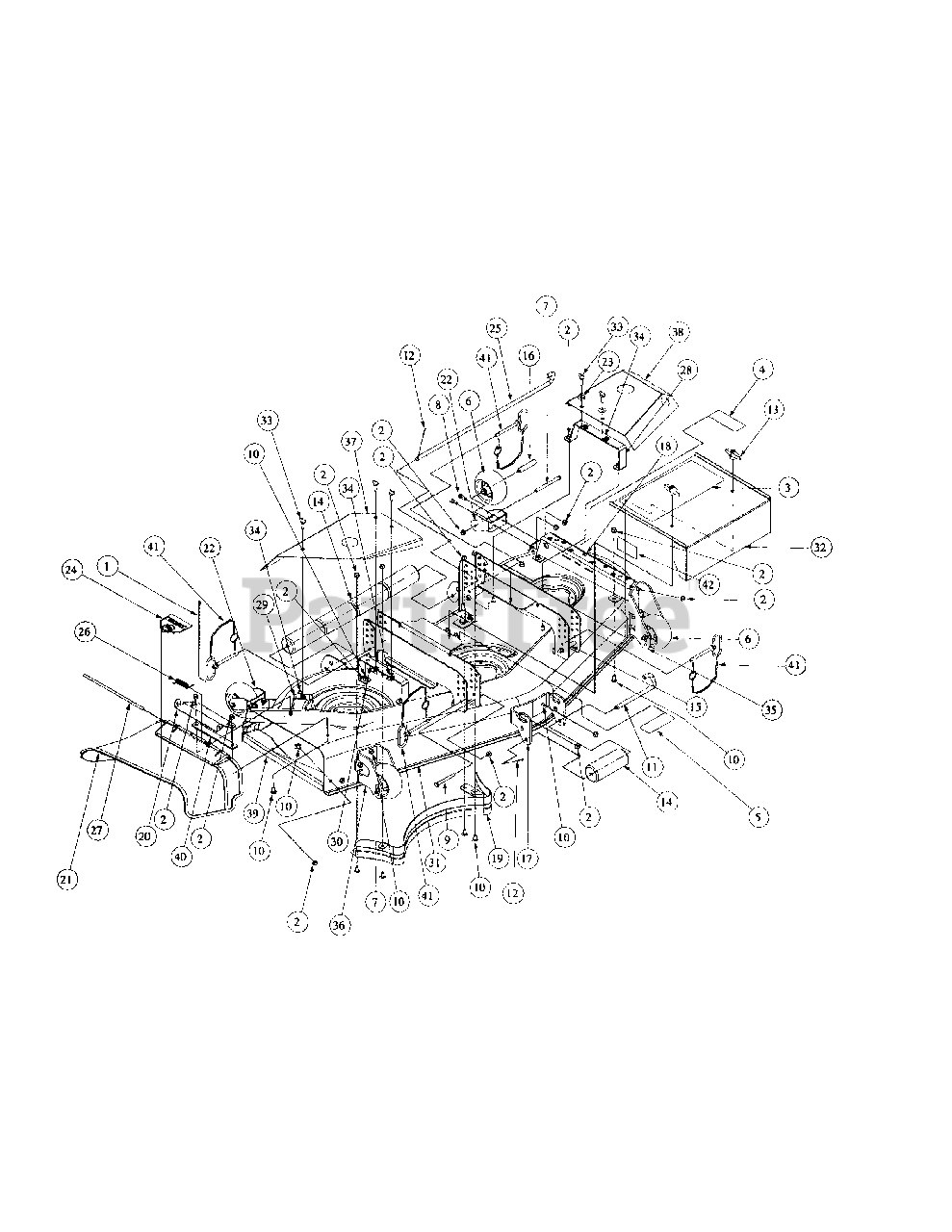

2260F - MTD Pro Walk-Behind Mower Deck Assembly Parts Diagram

Pro Walk-Behind Mower

Deck Assembly Parts Diagram

  • Title

1

MTD 725-0157

Cable Tie, 3/16 x 05 x 7.4

$3.99

$

In Stock, Qty 20+

0

2

MTD 00022560

Hex, Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

3

MTD 01002128

Label, MTD Pro 60

Note: NLA

$

$

Not available

4

MTD 00030633

Decal, Rotating Blade

$

$

Not available

5

MTD 00030635

Decal, Warning Shield Missing
(Superseded to 777S33782)

$8.49

$

Usually ships in 3-6 days

0

6

MTD 634-3159

Complete Wheel, 5 00 Dia

$36.99

$

In Stock, Qty 20+

0

7

MTD 710-0944

Hex, Cap, Screw, 3/8-16, 4.25

$11.99

$

In Stock, Qty 11

0

8

MTD 710-3001

Hex, Cap, Screw, 3/8-16, 88

$7.49

$

In Stock, Qty 5

0

9

MTD 710-3130

Hex, Cap, Screw, 3/8-16, 3.25

$10.99

$

In Stock, Qty 20+

0

10

MTD 710-3178

Carriage Bolt, 3/8-16 x 75 Long

$4.49

$

In Stock, Qty 20+

0

11

MTD 911-3314

Roller Pin, 1/2" Dia. x 7.31 Long
(Superseded to 711-3314A)

$27.99

$

In Stock, Qty 20+

0

12

MTD 914-0115

Cotter Pin, 1/8 x 1.0
(Superseded to 714-0115)

$4.49

$

In Stock, Qty 20+

0

13

MTD 720-04072A

Knob Assembly, Wingnut, 5/16-18

$7.49

$

In Stock, Qty 20+

0

14

MTD 731-3005

Front Roller

$30.99

$

In Stock, Qty 20+

0

15

MTD 01000395

Deck, Stop, Spacer

$

$

Not available

16

MTD 750-3193

Wheel, Spacer

$19.99

$

In Stock, Qty 20+

0

17

MTD 703-3043A-0637

Front 54, Roller Bracket
(Superseded to 703-3043A-4021)

$73.99

$

Usually ships in 3-6 days

0

18

MTD 01001788

60" Deck, Brace Assembly

$

$

Not available

19

MTD 01005743

Rear, Deck, Baffle
(Superseded to 703-3248-0637)

$167.99

$

Usually ships in 3-6 days

0

20

MTD 01001800

Chute, Deflector, Bracket

$

$

Not available

21

MTD 731-3257

60" Deck, Chute Deflector

$88.99

$

Usually ships in 3-6 days

0

22

MTD 703-2410-0637

Caster Bracket

$

$

Not available

23

MTD 936-0425

Belle Washer, .325 x .930 x 045
(Superseded to 736-0425)

$

$

Not available

24

MTD 01002166

Decal, Danger Hands and Feet

$12.99

$

Usually ships in 3-6 days

0

25

MTD 02002799

Roller, Pin
(Superseded to 711-05664)

$23.99

$

In Stock, Qty 6

0

26

MTD 732-04797

Torsion, Spacer, 0.4 ID x 2.16 Long

$12.99

$

In Stock, Qty 8

0

27

MTD 747-3384

Chute, Deflector, Rod

$29.99

$

In Stock, Qty 7

0

28

MTD 01003397

60 Left Hand, Belt Cover, Support Bracket

Note: NLA

$

$

Currently unavailable

29

MTD 01003402

60 Right Hand, Belt Cover, Support Bracket

$

$

Not available

30

MTD 01003399

60 Center Belt Cover, Support Bracket

Note: NLA

$

$

Currently unavailable

31

MTD 01003862

Mower, Deck Assembly

$

$

Not available

32

MTD 01003975

60 Center, Belt, Cover

Note: NLA

$

$

Not available

33

MTD 01003560

Thumb Screw, 5/16-18 x 1.0 Long
(Superseded to 710-3232)

$10.99

$

In Stock, Qty 5

0

34

MTD 01003563

U-Nut, 5/16-18
(Superseded to 926-0211)

$4.99

$

In Stock, only 2 left!

0

35

MTD 01003255

Front Left Hand, Deck, Bracket

$

$

Not available

36

MTD 01003257

Front Right, Support Bracket

$

$

Not available

37

MTD 01003979

60 Deck, Right Hand, Belt Cover

$

$

Not available

38

MTD 01003981

60 Deck, Left Hand, Belt Cover

$

$

Not available

39

MTD 01004988

Toe Guard Assembly

$

$

Not available

40

MTD 01004328

Strip Spacer, 0.1875 Thick

$

$

Not available

41

MTD 01004402

Deck Pin, 3/8" Dia

$

$

Not available

42

MTD 01004522

Label, Height of Cut

$

$

Not available
