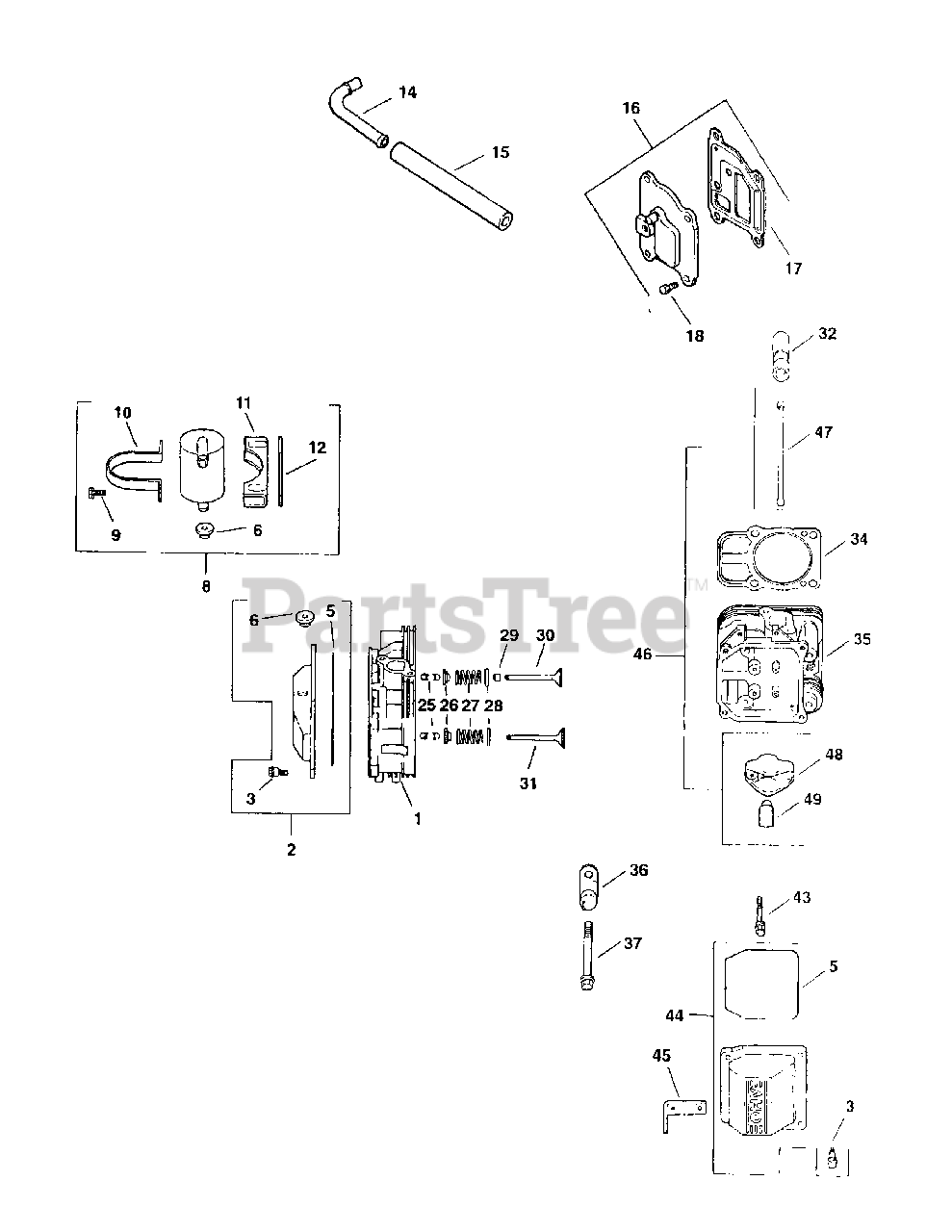

2260F - MTD Pro Walk-Behind Mower Kohler Engine Head,Valve & Breather Parts Diagram

Pro Walk-Behind Mower

Kohler Engine Head,Valve & Breather Parts Diagram

  • Title

1

MTD KH-24-318-105-S

Head Assembly, #1 Cylinder
(Superseded to KH-24-318-194-S)

$246.99

$

Usually ships in 3-6 days

0

2

MTD KH-24-755-142-S

Kit, Valve Cover-Breather

$42.99

$

In Stock, Qty 7

0

3

MTD KH-24-086-32

Screw, Hex Cap Shoulder

$

$

Not available

5

MTD KH-24-153-23-S

O-Ring

$18.99

$

In Stock, Qty 12

0

6

MTD KH-25-313-03-S

Grommet, Rubber

$11.99

$

In Stock, Qty 20+

0

8

MTD KH-24-755-57-S

Kit, Breather Separator
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 6

0

9

MTD KH-M-545016-S

Screw, Hex Flange
(Superseded to KH-25-086-398-S)

$4.49

$

In Stock, Qty 20+

0

10

MTD KH-24-445-02

Strap, Breather
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 6

0

11

MTD KH-24-126-44

Bracket, Breather Separator

$

$

Not available

12

MTD KH-24-112-12

Spacer

$

$

Not available

14

MTD KH-24-294-01

Fitting

$

$

Not available

15

MTD KH-24-326-03

Hose, Breather
(Superseded to KH-24-326-63-S)

$6.99

$

In Stock, Qty 12

0

16

MTD KH-24-033-03

Kit, Breather Cover w/Gasket

$

$

Not available

16

MTD KH-24-033-01

Breather, Cover

$

$

Not available

17

MTD KH-24-041-67-S

Gasket, Breather

$13.99

$

In Stock, Qty 20+

0

18

MTD KH-M-645020-S

Screw, Hex Flange
(Superseded to KH-25-086-396-S)

$2.99

$

In Stock, Qty 20+

0

25

MTD KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, Qty 19

0

26

MTD KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 9

0

27

MTD KH-24-089-02

Spring, Valve

$

$

Not available

28

MTD KH-235011-S

Retainer, Spring

$6.49

$

In Stock, Qty 11

0

29

MTD KH-66-032-05-S

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

30

MTD KH-24-017-01

Valve, Intake (Std.)

$

$

Not available

30

MTD KH-24-017-02

Valve, Intake (.25)

$

$

Not available

31

MTD KH-24-016-01

Valve, Exhaust (Std.)
(Superseded to KH-32-016-01-S)

$21.99

$

In Stock, Qty 20+

0

31

MTD KH-24-016-02

Valve, Exhaust (.25)

$

$

Not available

32

MTD KH-25-351-10-S

Lifter, Valve
(Superseded to KH-25-351-11-S)

$32.99

$

In Stock, Qty 20+

0

34

MTD KH-24-841-02-S

Gasket, Cylinder Head

$45.99

$

In Stock, Qty 7

0

35

MTD KH-24-318-113-S

Head Assembly, #2 Cylinder
(Superseded to KH-24-318-195-S)

$

$

Not available

37

MTD KH-24-086-44-S

Screw, Hex Flange

Note: NLA

$

$

Not available

43

MTD KH-M-0640034

Screw, Hex Flange

$

$

Not available

44

MTD KH-24-755-141-S

Kit, Valve Cover-Plain

$39.99

$

In Stock, Qty 19

0

45

MTD KH-25-445-01-S

Strap, Lifting
(Superseded to KH-25-445-03-S)

$

$

Not available

46

MTD KH-24-755-66

Kit, Valve Train

$

$

Not available

47

MTD KH-24-411-05

Rod, Push

$

$

Not available

48

MTD KH-25-186-01

Arm, Rocker

$

$

Not available

49

MTD KH-24-599-02-S

Pivot, Cylindrical Rocker Arm

$2.49

$

In Stock, Qty 20+

0
