22611 (SGR-13) - Toro Stump Grinder (SN: 311000001 - 311000155) (2011) HANDLE ASSEMBLY Parts Diagram

Stump Grinder

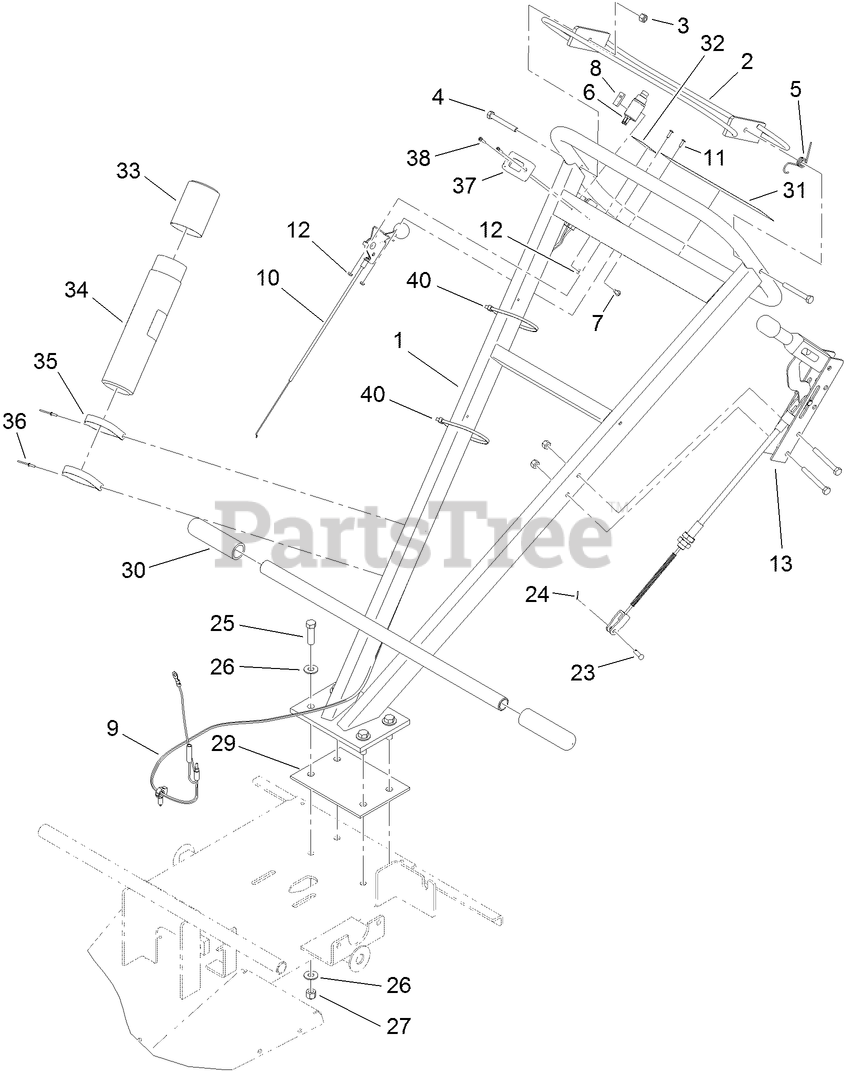

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 120-1230-01

OPERATOR HANDLE ASM

$

$

Not available

2

Toro 119-4711-01

HANDLE-SAFETY

$50.99

$

Usually ships in 3-6 days

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 9

0

5

Toro 120-1291

SPRING-RETURN

$7.49

$

Usually ships in 3-6 days

0

6

Toro 120-1292

SWITCH-PLUNGER, NC (W/COVER)

$45.99

$

In Stock, only 1 left!

0

7

Toro 1-803071

SCREW

$1.49

$

In Stock, Qty 13

0

8

Toro 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 17

0

9

Toro 120-1293

HARNESS-WIRE

$

$

Not available

10

Toro 120-1285

CABLE-THROTTLE

$36.99

$

In Stock, only 4 left!

0

11

Toro 3249-3

SCREW-PRH

$0.99

$

Usually ships in 3-6 days

0

12

Toro 3296-9

NUT-HEX

$0.99

$

In Stock, only 2 left!

0

13

Toro 120-1797

BRAKE LEVER ASM

$327.99

$

Usually ships in 3-6 days

0

23

Toro 1-808265

PIN-CLEVIS

$3.99

$

In Stock, only 2 left!

0

24

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 15

0

25

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

26

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

27

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

29

Toro 120-1248

GASKET-HANDLE

$12.99

$

Usually ships in 3-6 days

0

30

Toro 120-1333

GRIP-HANDLE

$9.99

$

In Stock, only 4 left!

0

31

Toro 119-4701

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

32

Toro 119-4721

DECAL-ENGAGE

$5.49

$

Usually ships in 3-6 days

0

33

Toro 104-7048

CAP-HOUSING

$6.49

$

Usually ships in 3-6 days

0

34

Toro 104-7050

TUBE-MANUAL

$9.99

$

Usually ships in 3-6 days

0

35

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

36

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

37

Toro 120-1218

HOURMETER-INDUCTIVE

$128.99

$

Usually ships in 3-6 days

0

38

Toro 3250-39

SCREW-PPH

$2.49

$

Usually ships in 3-6 days

0

40

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
