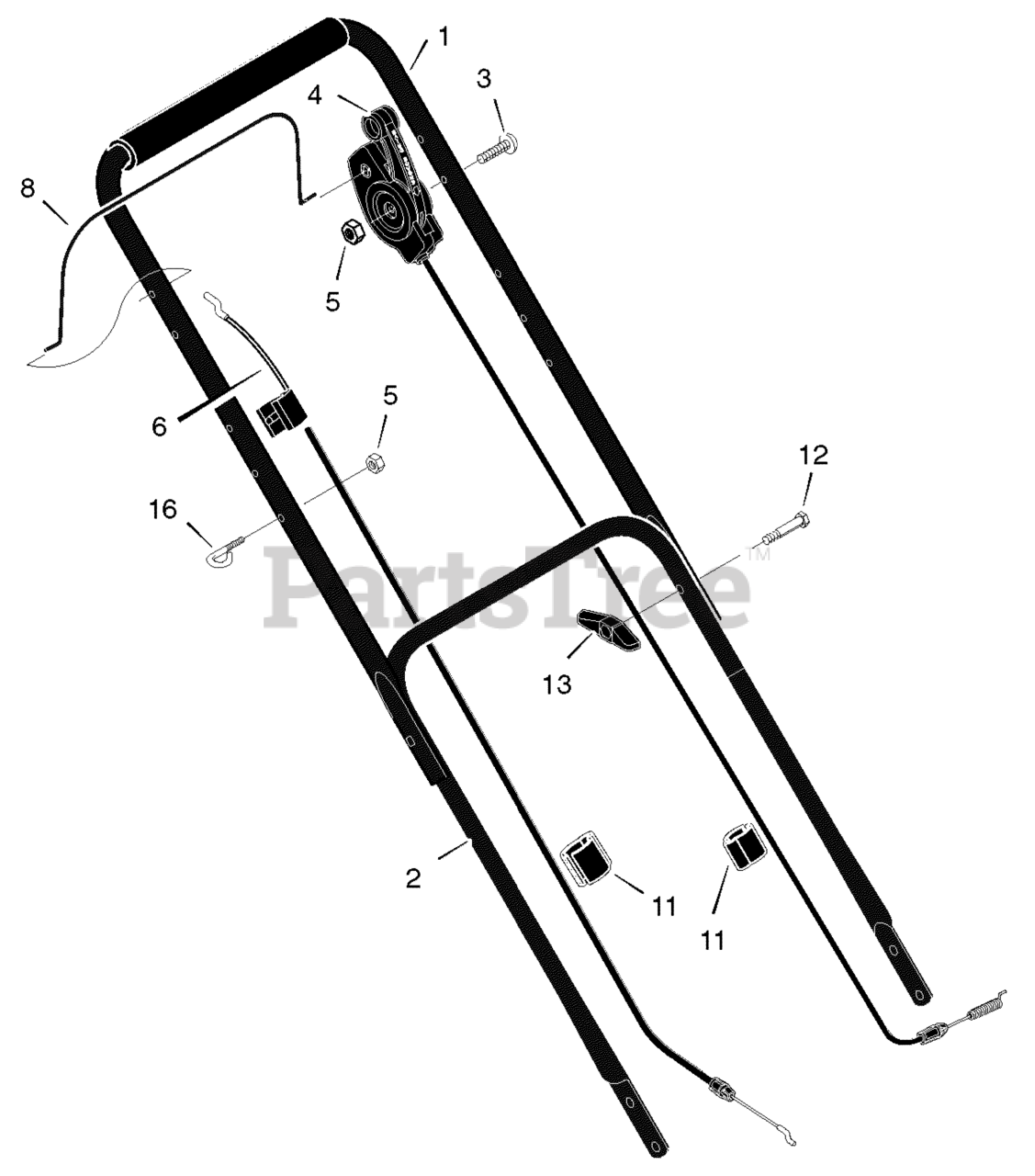

226110x24C - Briggs & Stratton 22" Walk-Behind Mower (2005) (Meijer) Handle & Bag Assembly Parts Diagram

22" Walk-Behind Mower

Handle & Bag Assembly Parts Diagram

  • Title

1

Murray 1101557E701

Handle, Upper (Black)

$106.99

$

Usually ships in 2-12 days

0

1

Murray 1107557E724

Handle, Upper (Gray)

$

$

Currently unavailable

2

Murray 1102089E701

Handle, Lower (Black)

$

$

Not available

2

Murray 1102089E724

Handle, Lower (Gray)

$

$

Currently unavailable

3

Murray 025X14

Bolt

$3.99

$

Usually ships in 2-12 days

0

4

Murray 1101670

Control, Drive

$54.99

$

Usually ships in 2-12 days

0

5

Murray 15X116

Locknut

$4.49

$

In Stock, Qty 20+

0

6

Murray 1101365

Cable, Stop *

$27.99

$

In Stock, Qty 9

0

8

Murray 1101076E701

Lever, Stop

$

$

Not available

11

Murray 1101353

Fastener, Cable

$5.99

$

In Stock, only 2 left!

0

12

Murray 002X77

Bolt

$3.99

$

In Stock, Qty 6

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

16

Murray 071530

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0
