226110x24C - Briggs & Stratton 22" Walk-Behind Mower (2005) (Meijer) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

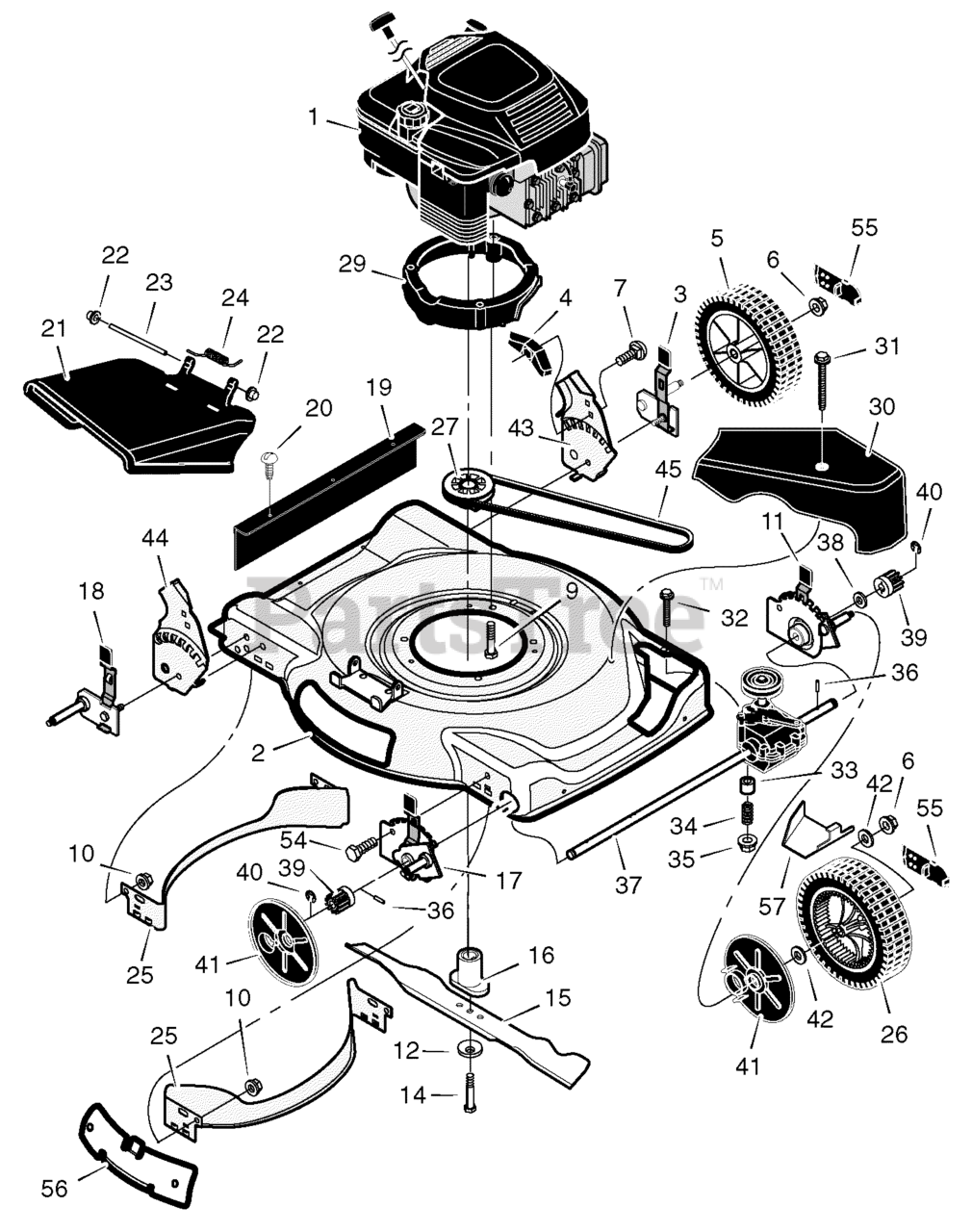

Mower Housing Assembly Parts Diagram

  • Title

1

Engine*

$

$

Not available

2

Murray 7501039

Housing

$130.99

$

Usually ships in 2-12 days

0

3

Murray 672641

Height Adjuster, Left Rear

$72.99

$

Usually ships in 2-12 days

0

4

Murray 071495

Knob

$4.99

$

In Stock, only 3 left!

0

5

Murray 071132

Wheel & Tire, Rear

$36.99

$

In Stock, only 2 left!

0

6

Murray 015X84

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 002X81

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

9

Murray 025X11

Bolt, Engine

$6.99

$

Usually ships in 2-12 days

0

10

Murray 015X68

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 672643

Height Adjuster, Left Front

$88.99

$

Usually ships in 2-12 days

0

12

Murray 1101989

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

14

Murray 01X148

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

15

Murray 1101823E701

Blade

$19.99

$

In Stock, Qty 5

0

16

Murray 1101968

Adapter, Blade

$

$

Not available

17

Murray 672642

Height Adjuster, Right Front

$

$

Not available

18

Murray 672640

Height Adjuster, Right Rear

$70.99

$

Usually ships in 2-12 days

0

19

Murray 672738

Guard, Rear

$32.99

$

Usually ships in 2-12 days

0

20

Murray 26X245

Screw

$4.49

$

In Stock, Qty 6

0

21

Murray 672421

Deflector Chute

$

$

Not available

22

Murray 028X42

Push-On Cap

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X11 Z

Pin, Pivot

$

$

Currently unavailable

24

Murray 0166X5

Spring

$3.99

$

Usually ships in 2-12 days

0

25

Murray 672744E701

Baffle

$49.99

$

Usually ships in 2-12 days

0

26

Murray 071133

Wheel & Tire, Drive

$50.99

$

In Stock, only 2 left!

0

27

Murray 1101653

Pulley

$9.99

$

Usually ships in 2-12 days

0

29

Murray 1101786

Base, Engine

Note: (Black)

$26.99

$

Usually ships in 2-12 days

0

29

Murray 1101787

Base, Engine

Note: (Gray)

$26.99

$

Usually ships in 2-12 days

0

30

Murray 1101830

Cover, Belt (Black)

$35.99

$

Usually ships in 2-12 days

0

30

Murray 1101831

Cover, Belt (Gray)

$35.99

$

Usually ships in 2-12 days

0

31

Murray 26X313

Screw

$4.49

$

Usually ships in 2-12 days

0

32

Murray 01X118

Bolt

$4.99

$

Usually ships in 2-12 days

0

33

Murray 043844

Spacer

$12.99

$

Usually ships in 2-12 days

0

34

Murray 164X27

Spring

$

$

Not available

35

Murray 015X88

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

36

Murray 043629

Pin, Drive

$

$

Not available

37

Murray 1101571

Transmission

$101.99

$

Usually ships in 2-12 days

0

38

Murray 17X186

Washer

$

$

Not available

39

Murray 071792

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

40

Murray 011X16

E-Ring

$3.99

$

Usually ships in 2-12 days

0

41

Murray 071780

Cover, Dust

$5.99

$

In Stock, only 2 left!

0

42

Murray 17X169

Washer

$4.49

$

In Stock, only 2 left!

0

43

Murray 1101303E700

Bracket, Left Handle

$

$

Currently unavailable

44

Murray 1101302E700

Bracket, Right Handle

$

$

Currently unavailable

45

Murray 37X123

Belt, B & S

$23.99

$

Usually ships in 2-12 days

0

54

Murray 001X85

Bolt
(Superseded to 001X85MA)

$3.99

$

Usually ships in 2-12 days

0

55

Murray 043615

Hub Cap

$

$

Not available

56

Murray 672422 Z

Plate, Mulcher

Note: (Optional)

$

$

Currently unavailable

57

Murray 1101961

Cover, Transmission

$5.49

$

Usually ships in 2-12 days

0

--

Murray F-050442L

Book, Instruction

$

$

Currently unavailable
