22614 (BC-25) - Toro Brush Chipper (SN: 314000001 - 314999999) (2014) BELT GUARD ASSEMBLY Parts Diagram

Brush Chipper

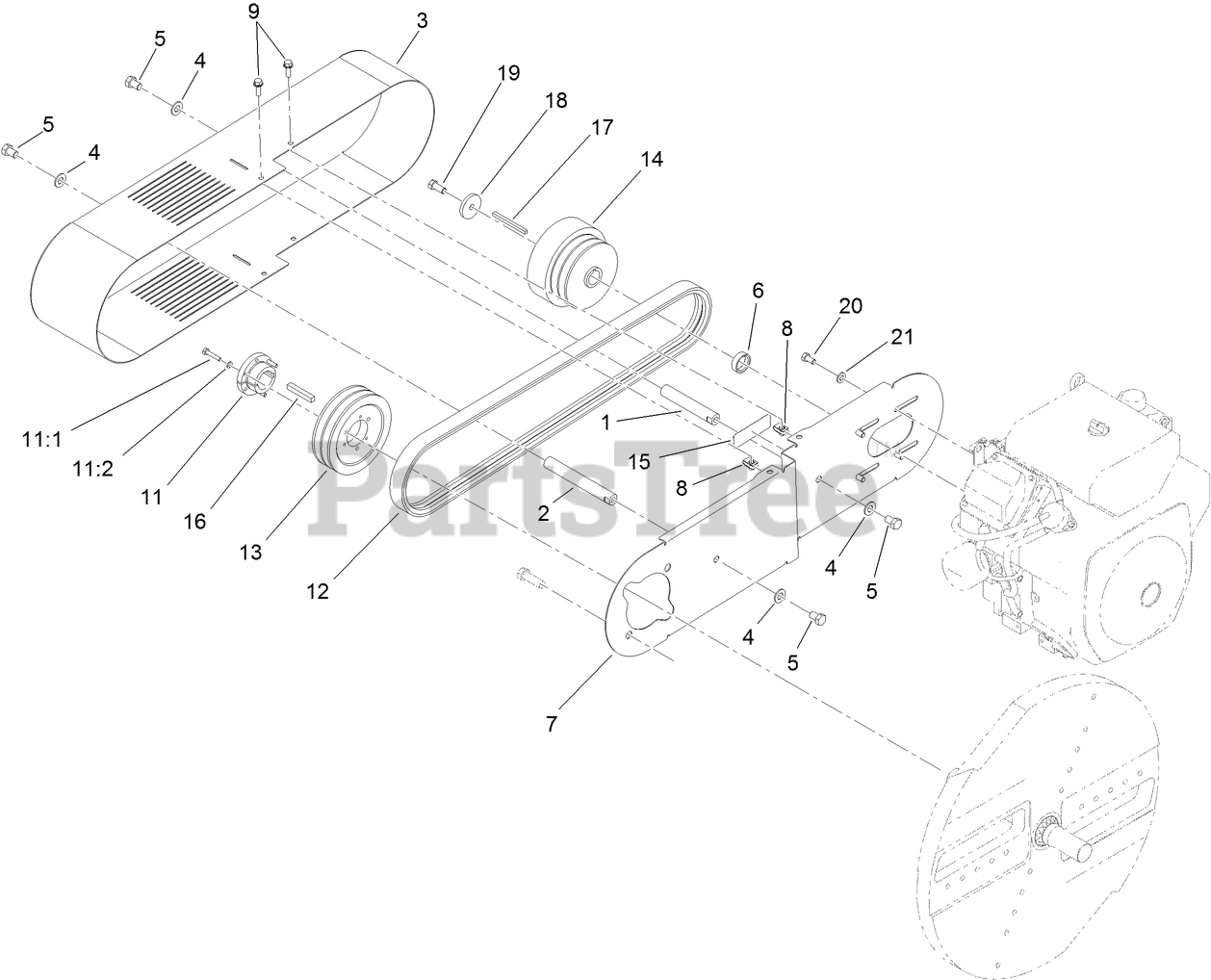

BELT GUARD ASSEMBLY Parts Diagram

  • Title

1

Toro 119-5175

TUBE-STANDOFF, SHORT

$

$

Not available

2

Toro 119-5174

TUBE-STANDOFF, LONG

$

$

Not available

3

Toro 120-1556-01

BELT COVER ASM

$

$

Not available

4

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 325-2

SCREW-HH

$2.99

$

In Stock, only 2 left!

0

6

Toro 117-1769

SPACER

$

$

Not available

7

Toro 120-5359-01

GUARD-BELT, INNER

$

$

Not available

8

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

9

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

11

Toro 120-1865

BUSHING-PULLEY

$

$

Not available

11:1

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

11:2

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 120-1839

BELT-V, BANDED

$108.99

$

Usually ships in 3-6 days

0

13

Toro 120-1864

PULLEY

$120.99

$

Usually ships in 3-6 days

0

14

Toro 120-1217

CLUTCH-CHIPPER

$1317.99

$

Usually ships in 3-6 days

0

15

Toro 117-4979

DECAL-WARNING, SHIELDS

$15.99

$

Usually ships in 3-6 days

0

16

Toro 117-1768

KEY-SQUARE

$

$

Not available

17

Toro 117-1770

KEY-SQUARE

$

$

Not available

18

Toro 109-6919

WASHER-CLUTCH

$5.49

$

In Stock, Qty 20+

0

19

Toro 3212-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

20

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
