22615 (SGR-13) - Toro Stump Grinder (SN: 314000001 - 314999999) (2014) BELT DRIVE ASSEMBLY Parts Diagram

Stump Grinder

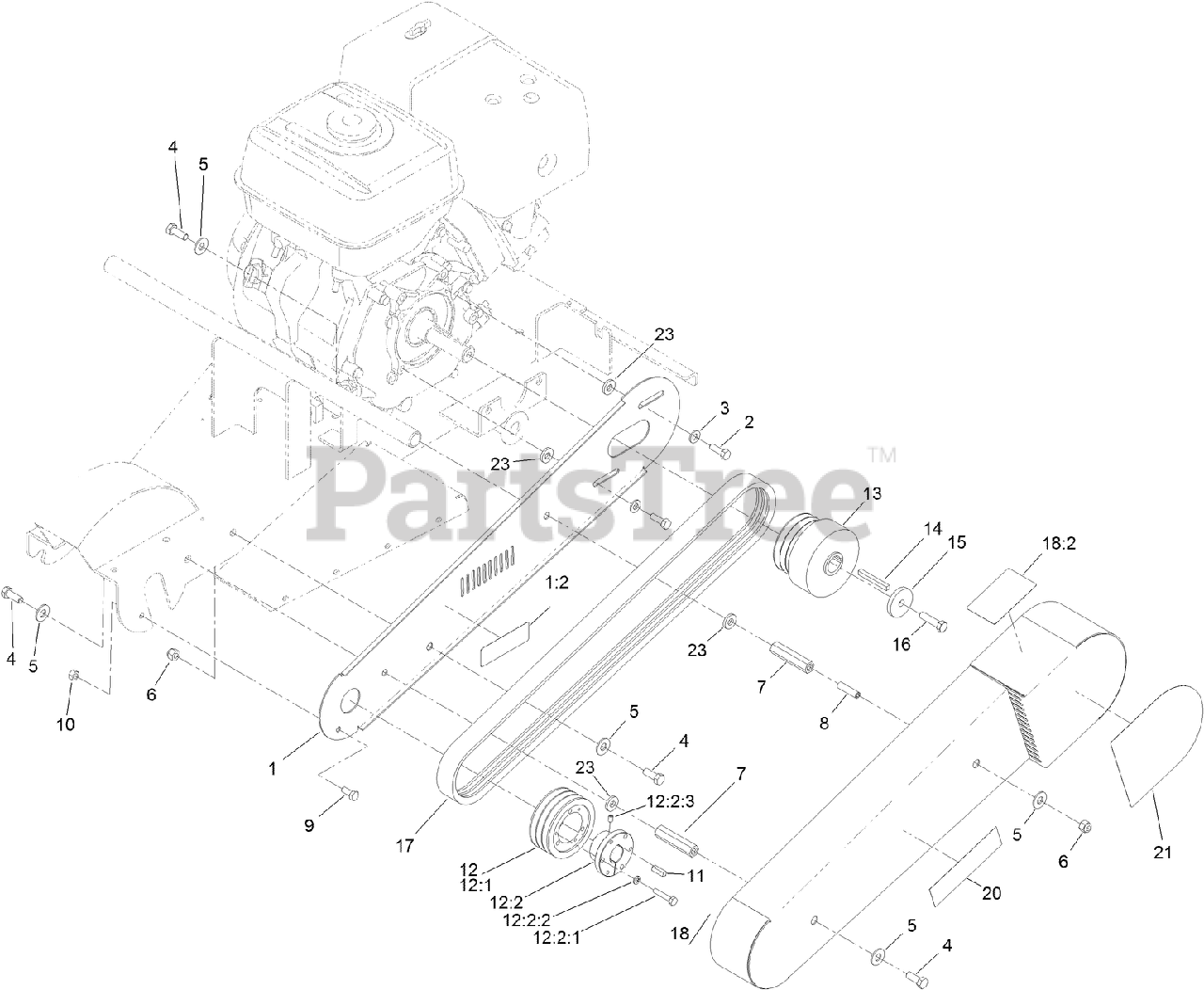

BELT DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 121-4413

PLATE-GUARD

$83.99

$

Usually ships in 3-6 days

0

1:2

Toro 117-4979

DECAL-WARNING, SHIELDS

$15.99

$

Usually ships in 3-6 days

0

2

Toro 3210-5

SCREW-HH

$4.49

$

In Stock, only 4 left!

0

3

Toro 3256-38

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

5

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Toro 120-1234

SPACER-GUARD

$31.99

$

Usually ships in 3-6 days

0

8

Toro 3247-8

SCREW-SET, HSH

$15.99

$

Usually ships in 3-6 days

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 5

0

11

Toro 10-7070

KEY-SQUARE

$1.49

$

In Stock, Qty 7

0

12

Toro 120-1298

SHEAVE ASM

$136.99

$

Usually ships in 3-6 days

0

12:1

Toro 95-0883

PULLEY

$182.99

$

In Stock, only 3 left!

0

12:2

Toro 61-3340

BUSHING

$95.99

$

Usually ships in 3-6 days

0

12:2:1

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 6

0

12:2:2

Toro 3253-2

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12:2:3

Toro 3245-2

SCREW-SET, HSH

$3.49

$

Usually ships in 3-6 days

0

13

Toro 120-1204

CLUTCH

$812.99

$

Usually ships in 3-6 days

0

14

Toro 63-8150

KEY-SQUARE

$10.99

$

Usually ships in 3-6 days

0

15

Toro 110-9981

WASHER-PLAIN

$16.99

$

In Stock, Qty 12

0

16

Toro 3211-6

SCREW-HH

Note: Use Pro-Lock retaining type, Part no. 1-840023 (.5cc tube) on threads.

$4.49

$

Usually ships in 3-6 days

0

17

Toro 120-1203

BELT-3V

$94.99

$

Usually ships in 3-6 days

0

18

Toro 121-4414

BELT GUARD ASM

$173.99

$

Usually ships in 3-6 days

0

18:2

Toro 119-4692

DECAL-CAUTION

$5.49

$

Usually ships in 3-6 days

0

20

Toro 120-1816

DECAL

$10.99

$

Usually ships in 3-6 days

0

21

Toro 119-4724

DECAL

$14.99

$

In Stock, Qty 7

0

23

Toro 43-0940

SPACER

$5.99

$

In Stock, Qty 9

0
