22619 (SGR-13) - Toro Stump Grinder (SN: 400000000 - 402470000)

Stump Grinder

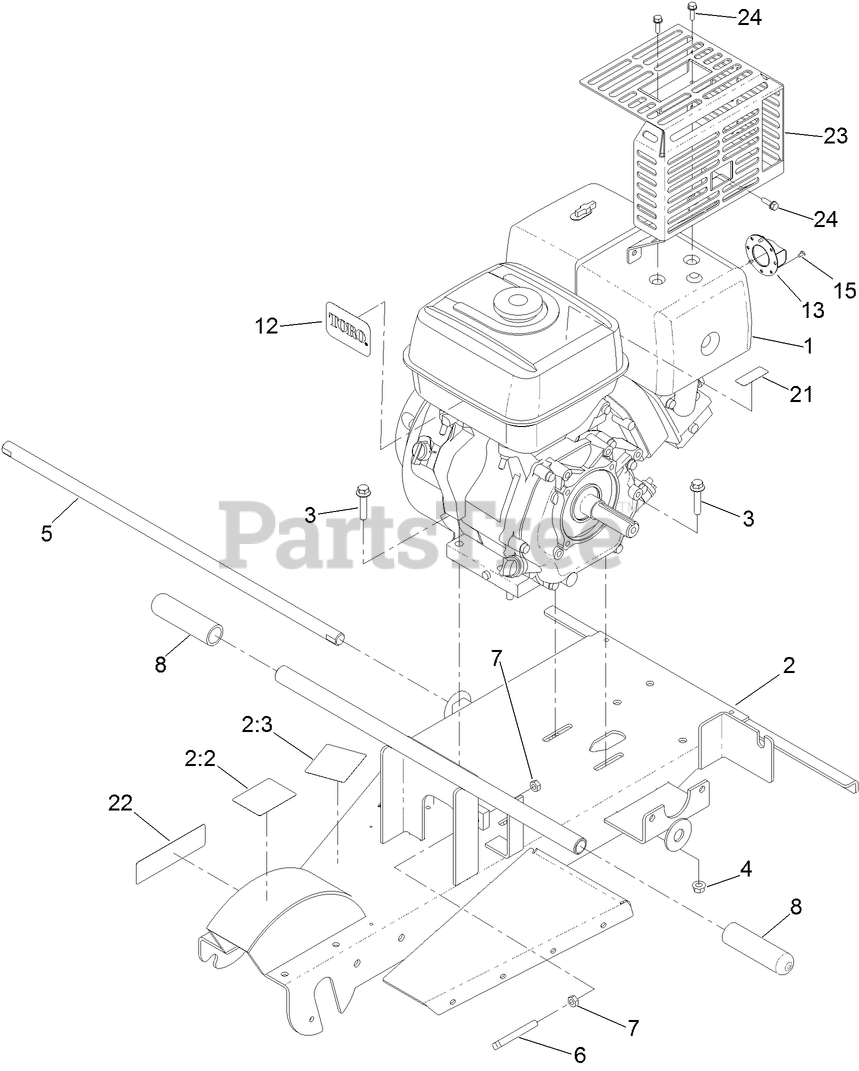

22619 (SGR-13) - Toro Stump Grinder (SN: 400000000 - 402470000) > Parts Diagrams (7) > ENGINE AND FRAME ASSEMBLY

  • Title

1

ENGINE-HONDA, GX390UT2 QXC9

Part#

Note: Not serviced separately

Not available

1

ENGINE-HONDA, GX390UT2 QXC9

Part#

Note: Obtain parts from www.honda-engines.com

Not available

132-3984

2

FRAME ASM

Part# 132-3984

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $574.00

119-4690

2:2

DECAL-DANGER

Part# 119-4690

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.39

119-4693

2:3

DECAL-CAUTION

Part# 119-4693

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.53

3234-19

3

SCREW-HHF

Part# 3234-19

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.27

32128-21

4

NUT-HF

Part# 32128-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.60

120-1252

5

BAR-AXLE

Part# 120-1252

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $39.68

119-4729

6

SCREW-SET, SQH

Part# 119-4729

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.23

3217-7

7

NUT-HEX

Part# 3217-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.27

120-1333

8

GRIP-HANDLE

Part# 120-1333

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.92

99-2385

12

DECAL

Part# 99-2385

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.99

120-1886

13

DEFLECTOR-EXHAUST

Part# 120-1886

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $51.37

125-0519

15

SCREW-SELF TAPPING

Part# 125-0519

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.10

130-8322

21

DECAL-WARNING, ETHANOL

Part# 130-8322

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.45

132-4004

22

DECAL-ROTATE TOOTH

Part# 132-4004

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $16.55

137-0577

23

GUARD-MUFFLER,

Part# 137-0577

OEM Warranty Repair Part for Toro

Currently unavailable

110-3986

24

SCREW

Part# 110-3986

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.73
