22621 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1990) Engine Assembly Parts Diagram

Walk-Behind Mower

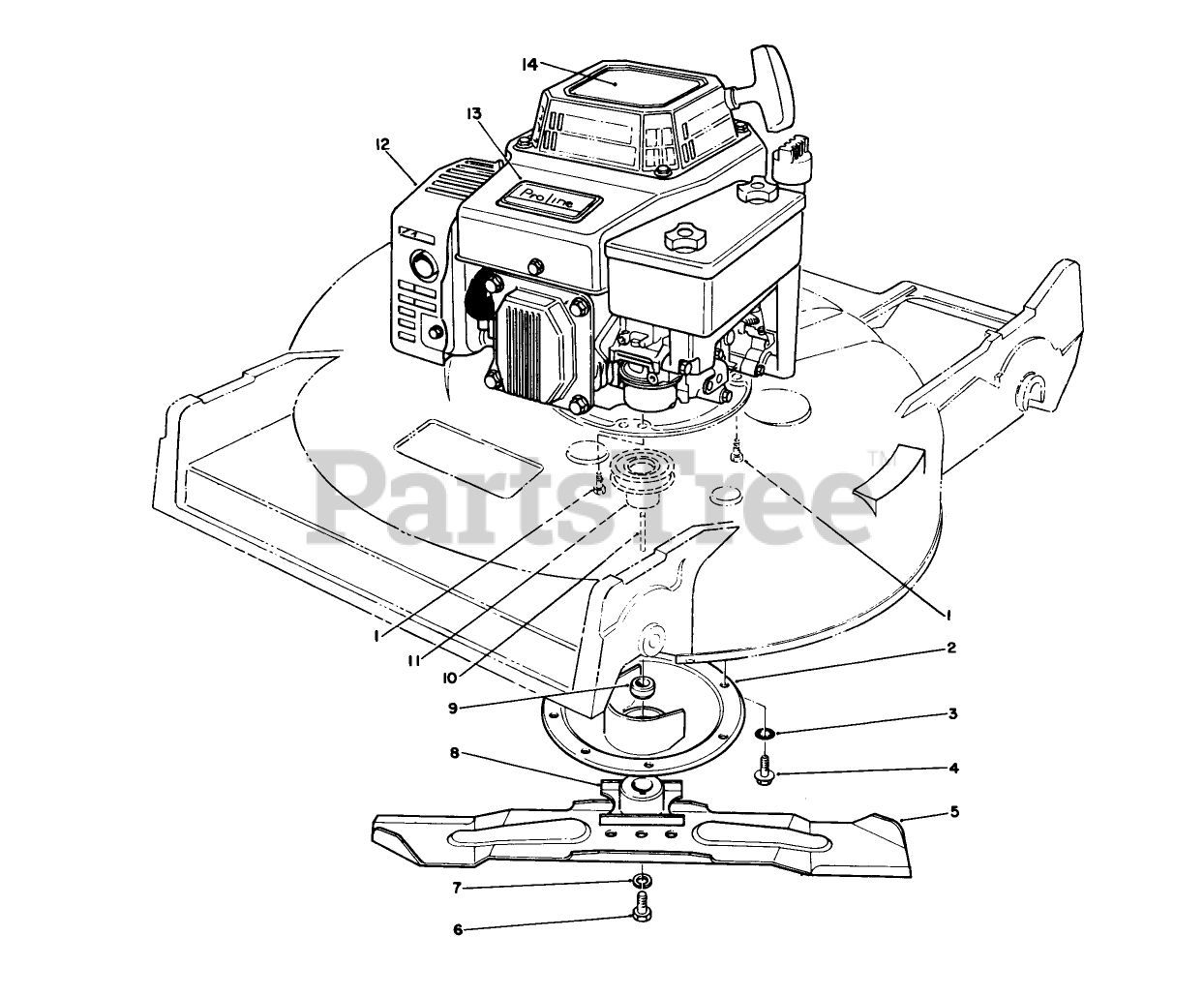

Engine Assembly Parts Diagram

  • Title

1

Toro 11-0590

See Supercession: 32144-102
(Superseded to 32144-102)

$3.99

$

In Stock, Qty 5

0

2

Toro 65-5860

See Supercession: 125-8370
(Superseded to 125-8370)

$115.99

$

In Stock, only 2 left!

0

3

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

4

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

5

Toro 62-7700

See Supercession: 62-7700-03
(Superseded to 62-7700-03)

$36.99

$

In Stock, Qty 9

0

6

Toro 26-0670

SCREW-BLADE

$

$

Not available

7

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

8

Toro 52-2170

See Supercession: 52-2170-03
(Superseded to 52-2170-03)

$82.99

$

In Stock, only 2 left!

0

9

Toro 52-2190

SPACER-BLADE RETAINER

$13.99

$

Usually ships in 3-6 days

0

10

Toro 27-6300

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

11

Toro 46-7910

PULLEY-DRIVER

$38.99

$

In Stock, only 2 left!

0

12

Toro 62-5447

SVCE BULLETIN

$

$

Not available

13

Toro 71-1260

DECAL - PROLINE

$8.49

$

Usually ships in 3-6 days

0

14

Toro 77-0050

DISCONTINUED

$

$

Not available
