22621 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) GEAR CASE ASSEMBLY (MODEL NO. 22621) Parts Diagram

Walk-Behind Mower

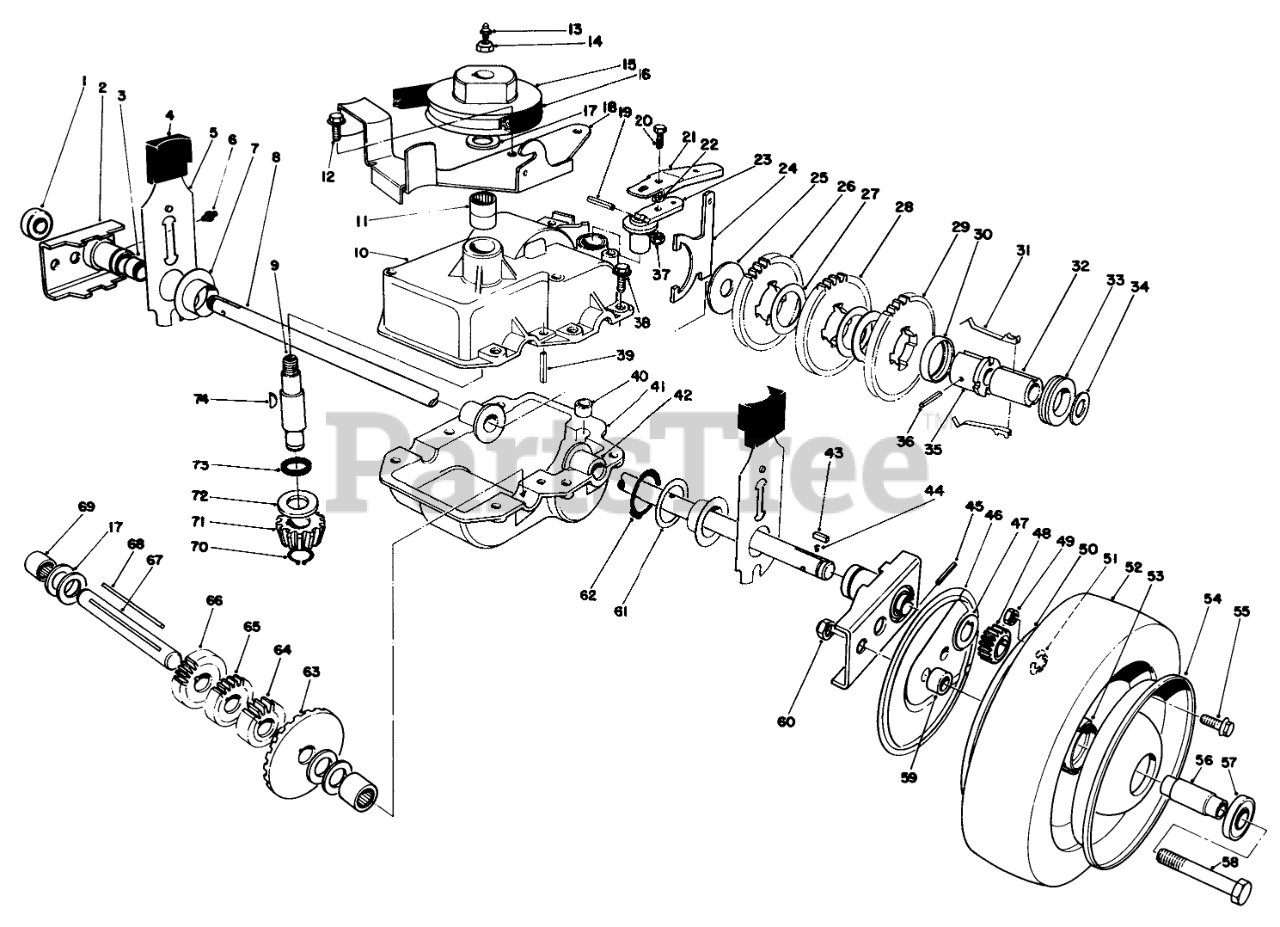

GEAR CASE ASSEMBLY (MODEL NO. 22621) Parts Diagram

  • Title
1

Toro Part# 61-8050

Ball Bearing
(Superseded to 52-2450)
Usually ships in 1 day

$

$15.64

0

2

Toro Part# 61-8200

Pivot Arm Assembly (Incl. Ref. #1, 3 & 6)
(Superseded to 74-1851)
Usually ships in 1 day

$

$74.90

0

3
Usually ships in 1 day

$

$3.34

0

4
Usually ships in 1 day

$

$4.46

0

5

Toro Part# 61-8081

Spring Arm Assembly-Rear
(Superseded to 66-7561)
Usually ships in 1 day

$

$12.29

0

6

Toro Part# 302-56

FITTING-GREASE
Usually ships in 1 day

$

$3.27

0

7
Usually ships in 1 day

$

$7.82

0

8

Toro Part# 61-8040

Shaft-Output
(Superseded to 77-1030)
Usually ships in 5 to 8 days

$

$183.95

0

9

Toro Part# 48-2460

Shaft Input
(Superseded to 13-5149)
Usually ships in 5 to 8 days

$

$58.13

0

10

Toro Part# 11-6029

Upper Case Assembly (Incl. Ref.#11 & 73)
(Superseded to 99-5866)
Usually ships same day

Not available

$

$

11

Toro Part# 47-7270

BEARING-NEEDLE
Usually ships in 1 day

$

$24.59

0

Usually ships in 1 day

$

$2.90

0

13

Toro Part# 302-5

FITTING-GREASE
Usually ships in 1 day

$

$2.81

0

14
Usually ships in 1 day

$

$2.90

0

15
Usually ships in 1 day

$

$45.83

0

16
Usually ships in 1 day

$

$19.00

0

17

Toro Part# 36-4790

WASHER-THRUST
Usually ships in 5 to 8 days

$

$2.24

0

18

Toro Part# 49-8461

Belt Guide Bracket
(Superseded to 49-8461-03)
Usually ships in 5 to 8 days

$

$29.00

0

19
Usually ships in 1 day

$

$1.00

0

Usually ships in 1 day

$

$0.38

0

21

Toro Part# 55-8040

SHIFT LEVER COVER
Usually ships in 5 to 8 days

$

$15.88

0

22

Toro Part# 3256-14

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

23

Toro Part# 29-9560

LEVER-SHIFT
Usually ships in 5 to 8 days

$

$12.89

0

24

Toro Part# 29-9520

Shift Yoke
(Superseded to 60-8870)
Usually ships in 1 day

$

$20.11

0

25
Usually ships in 5 to 8 days

$

$10.05

0

26
Usually ships in 5 to 8 days

$

$67.07

0

27
Usually ships in 1 day

$

$4.35

0

28
Usually ships in 5 to 8 days

$

$70.42

0

Usually ships in 5 to 8 days

$

$62.60

0

30

Toro Part# 55-8020

RETAINER-KEY
Usually ships in 5 to 8 days

$

$7.07

0

31

Toro Part# 29-9330

KEY-SHIFT
Usually ships in 1 day

$

$22.89

0

32
Usually ships in 5 to 8 days

$

$13.01

0

33

Toro Part# 29-9340

COLLAR-SHIFT
Usually ships in 5 to 8 days

$

$32.40

0

34

Toro Part# 36-4780

WASHER-PLAIN
Usually ships in 1 day

$

$5.86

0

35

Toro Part# 55-8010

SLEEVE-GEAR
Usually ships in 1 day

$

$16.39

0

36

Toro Part# 3285-19

PIN-GROOVE
Usually ships in 1 day

$

$1.59

0

37

Toro Part# 3296-2

NUT-LOCK, NI
Usually ships in 1 day

$

$1.33

0

38

Toro Part# 49-2040

SCREW-HWHTF
Usually ships in 1 day

$

$1.67

0

39

Toro Part# 32121-100

ROLL PIN 3/16 X 1 IN
Usually ships in 5 to 8 days

$

$1.39

0

40

Toro Part# 29-9570

BUSHING-YOKE
Usually ships in 5 to 8 days

$

$8.93

0

41

Toro Part# 48-2440

Case-Lower
Usually ships same day

Not available

$

$

42
Usually ships in 5 to 8 days

$

$12.89

0

43

Toro Part# 39-9680

KEY RECTANGULAR
Usually ships in 1 day

$

$4.57

0

44

Toro Part# 39-9650

SPRING-COMPRESSION
Usually ships in 1 day

$

$2.23

0

45

Toro Part# 32121-98

Pin
(Superseded to 32121-88)
Usually ships in 1 day

$

$6.81

0

46

Toro Part# 52-4860

WHEEL COVER
Usually ships in 5 to 8 days

$

$26.59

0

47

Toro Part# 49-7700

WASHER-THRUST, OUTER
Usually ships in 1 day

$

$1.85

0

48

Toro Part# 39-9160

GEAR-PINION
Usually ships in 1 day

$

$12.29

0

49

Toro Part# 3296-56

NUT-LOCK, NI
Usually ships in 1 day

$

$1.55

0

50

Toro Part# 53-7750

Wheel-Half
(Superseded to 121-1378-06)
Usually ships in 1 day

$

$25.70

0

51

Toro Part# 32151-68

RING-RETAINING
Usually ships in 1 day

$

$3.34

0

Usually ships in 1 day

$

$31.29

0

53

Toro Part# 52-2410

HUB-BEARING
Usually ships in 5 to 8 days

$

$25.70

0

54

Toro Part# 53-7780

Wheel-Half
(Superseded to 121-1365-06)
Usually ships in 1 day

$

$16.76

0

55

Toro Part# 3234-26

SCREW-HHF
Usually ships in 1 day

$

$2.34

0

56

Toro Part# 52-2440

SPACER-BEARING
Usually ships in 1 day

$

$7.38

0

57

Toro Part# 52-2450

BEARING-WHEEL
Usually ships in 1 day

$

$15.64

0

58
Usually ships in 1 day

$

$2.24

0

59

Toro Part# 52-2480

SPACER-WHEEL
Usually ships in 1 day

$

$5.58

0

60

Toro Part# 3296-44

NUT-LOCK, NI
Usually ships in 5 to 8 days

$

$2.75

0

62

Toro Part# 32151-36

RING-RETAINING
Usually ships in 1 day

$

$3.87

0

63

Toro Part# 39-6670

BEVEL GEAR
Usually ships same day

Not available

$

$

64
Usually ships in 1 day

$

$10.73

0

65
Usually ships in 5 to 8 days

$

$17.88

0

66
Usually ships in 1 day

$

$10.87

0

67

Toro Part# 53-7950

SHAFT-INTERMEDIATE
Usually ships in 1 day

$

$43.22

0

Usually ships in 1 day

$

$2.05

0

69

Toro Part# 252-103

BEARING-NEEDLE, CLOSED
Usually ships in 1 day

$

$20.11

0

70

Toro Part# 32151-57

RING-RETAINING
Usually ships in 5 to 8 days

$

$2.94

0

71

Toro Part# 39-6660

PINION-BEVEL
Usually ships in 5 to 8 days

$

$32.13

0

72

Toro Part# 47-2910

WASHER-THRUST
Usually ships in 5 to 8 days

$

$10.98

0

Usually ships in 1 day

$

$6.65

0

74

Toro Part# 3257-1

KEY-WOODRUFF
Usually ships in 1 day

$

$1.61

0

Toro Part# 53-7730

Wheel & Tire Assembly (Incl. Ref. #49-56)
(Superseded to 121-1379)
Usually ships in 1 day

$

$100.55

0

Toro Part# 53-7770

Hub Assembly (Inc. Ref. #49, 50 & 53-57)
(Superseded to 121-1379)
Usually ships in 1 day

$

$100.55

0
