22635E - Murray 22" Walk-Behind Mower (1997) Handle Assembly Parts Diagram

22" Walk-Behind Mower

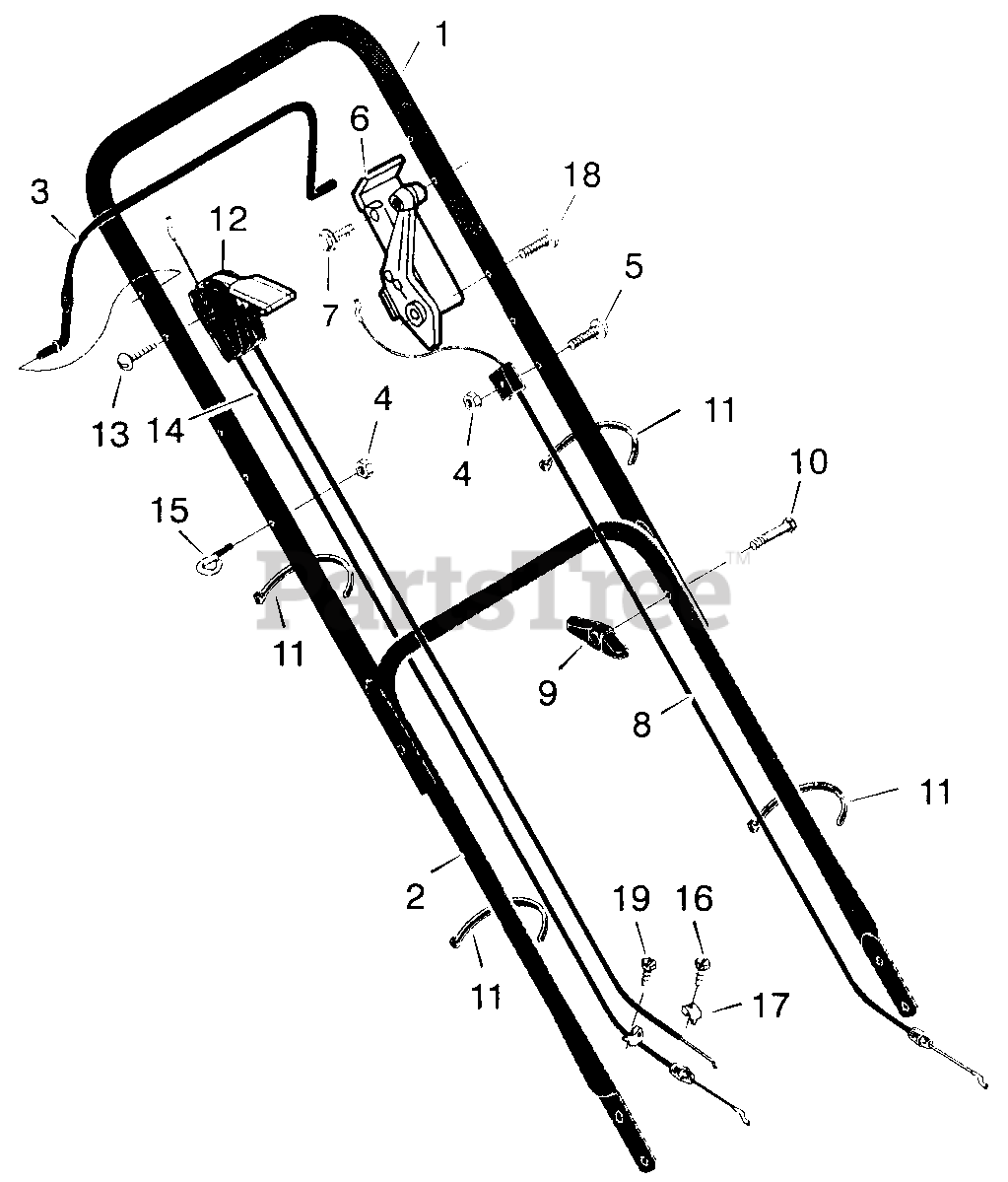

Handle Assembly Parts Diagram

  • Title

1

Murray 071581E701MA

Handle, Upper - (Black)

$159.99

$

Usually ships in 2-12 days

0

--

Murray 71581E724

Handle, Upper - (Gray)

$

$

Currently unavailable

2

Murray 071582E701

Handle, Lower (Black)

$

$

Currently unavailable

--

Murray 71582E724

Handle, Lower (Gray)

$

$

Currently unavailable

3

Murray 043653E701MA

Lever, Stop

$36.99

$

Usually ships in 2-12 days

0

4

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

5

Murray 03X151

Screw

$

$

Currently unavailable

6

Murray 071249

Drive Control

$

$

Currently unavailable

7

Murray 26X220MA

Screw

$

$

Not available

8

Murray 071251MA

Cable, Drive

$23.99

$

Usually ships in 2-12 days

0

9

Murray 071294

Knob
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

10

Murray 002X77MA

Bolt

$3.99

$

In Stock, Qty 11

0

11

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

12

Murray 672149

Throttle Control

$8.49

$

Usually ships in 2-12 days

0

13

Murray 03X144

Bolt

$3.99

$

Usually ships in 2-12 days

0

14

Murray 672170

Engine Stop Cable

$8.99

$

Usually ships in 2-12 days

0

15

Murray 043956MA

GUIDE, ROPE

$6.49

$

Usually ships in 2-12 days

0

16

Murray 26X268MA

Screw

Note: For Models with Briggs & Stratton engines.

$3.99

$

Usually ships in 2-12 days

0

17

Murray 042294

Clamp

Note: (For Models with Briggs & Stratton engines.)

$

$

Not available

18

Murray 003X97 Z

Screw

$

$

Currently unavailable

19

Murray 26X234

Screw

$1.99

$

Usually ships in 2-12 days

0
