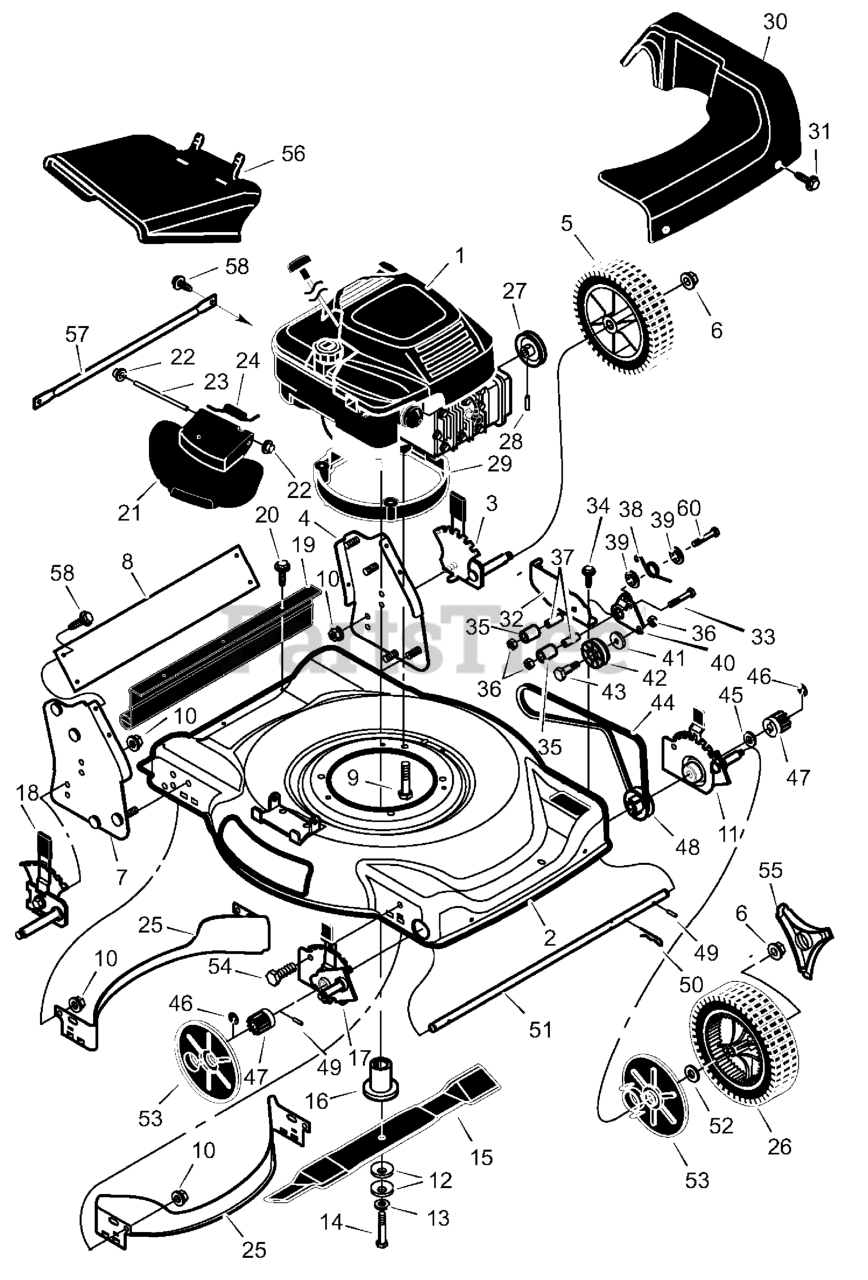

22636x31B - Scotts 22" Walk-Behind Mower (1999) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

Mower Housing Assembly Parts Diagram

  • Title
1

Engine

$

$

Not available

2

Murray 776044

Housing

$253.99

$

Usually ships in 2-12 days

0

3

Murray 672679

Height Adjuster, Left Rear

$11.99

$

Usually ships in 2-12 days

0

4

Murray 672675E700

Bracket, Left Handle

$

$

Currently unavailable

5

Murray 672803MA

Wheel and Tire, Rear

$41.99

$

Usually ships in 2-12 days

0

6

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 672674E700

Bracket, Right Handle

$

$

Currently unavailable

8

Murray 672660E700

Brace, Handle Bracket

$

$

Currently unavailable

9

Murray 025X11MA

Bolt, Engine

$6.99

$

Usually ships in 2-12 days

0

10

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 672681MA

Height Adjuster, Left Front

$125.99

$

Usually ships in 2-12 days

0

12

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

13

$4.49

$

Usually ships in 2-12 days

0

14

Murray 01X153MA

Bolt, Hex

$4.49

$

Usually ships in 2-12 days

0

$

$

Not available

16

Murray 672503MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

17

Murray 672680MA

Height Adjuster, Right Front

$125.99

$

Usually ships in 2-12 days

0

18

Murray 672678

Height Adjuster, Right Rear

$11.99

$

Usually ships in 2-12 days

0

19

Murray 672684

Guard, Rear

$18.99

$

In Stock, only 2 left!

0

20

$4.49

$

In Stock, Qty 6

0

21

Murray 672140

Cover, Mulcher

$

$

Currently unavailable

22

Murray 028X42MA

Push-On Cap

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X19 Z

Pin, Pivot

$

$

Currently unavailable

24

$4.99

$

In Stock, only 2 left!

0

$49.99

$

Usually ships in 2-12 days

0

26

Murray 672441MA

Wheel and Tire, Drive

$54.99

$

In Stock, only 2 left!

0

27

$16.99

$

Usually ships in 2-12 days

0

28

Murray 032X64MA

Pin, Spring

$3.99

$

Usually ships in 2-12 days

0

29

Murray 672671 E700

Base, Engine

$

$

Currently unavailable

30

Murray 672347

Cover, Belt

$

$

Currently unavailable

31

$4.49

$

Usually ships in 2-12 days

0

32

Murray 672751 Z

Bracket, Idler Support

$

$

Currently unavailable

33

$3.49

$

In Stock, only 2 left!

0

34

$4.99

$

In Stock, only 1 left!

0

35

Murray 672754MA

Idler, Backside

$8.49

$

In Stock, Qty 5

0

36

Murray 015X43MA

Locknut
(Superseded to 703164)

$3.49

$

In Stock, Qty 12

0

37

Murray 071793MA

Bearing

$4.99

$

In Stock, Qty 6

0

38

$3.99

$

Usually ships in 2-12 days

0

39

$3.99

$

Usually ships in 2-12 days

0

40

Murray 672753 Z

Arm, Pivot

$

$

Currently unavailable

41

$3.99

$

Usually ships in 2-12 days

0

42

Murray 071779MA

Pulley, Idler

$

$

Not available

43

Murray 009X50MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

44

$20.99

$

In Stock, Qty 9

0

45

$5.49

$

Usually ships in 2-12 days

0

46

Murray 011X16MA

Ring, Retainer

$3.99

$

Usually ships in 2-12 days

0

47

Murray 071792MA

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

48

$16.99

$

Usually ships in 2-12 days

0

49

Murray 043629MA

Pin, Drive

$5.99

$

In Stock, Qty 6

0

50

Murray 0031X9MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

51

$34.99

$

Usually ships in 2-12 days

0

52

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

53

Murray 071780MA

Cover, Dust

$5.99

$

In Stock, only 2 left!

0

54

$3.99

$

Usually ships in 2-12 days

0

55

Murray 672446

Hub Cap

$

$

Not available

56

Murray 672150

Deflector, Chute

$

$

Currently unavailable

$5.99

$

Usually ships in 2-12 days

0

58

$4.99

$

In Stock, only 1 left!

0

60

UNKNOWN

$

$

Not available

--

Murray F-99473

Book, Instruction

$

$

Currently unavailable
