226432-0115-01 - Briggs & Stratton Horizontal Engine Carburetor Assy Parts Diagram

Horizontal Engine

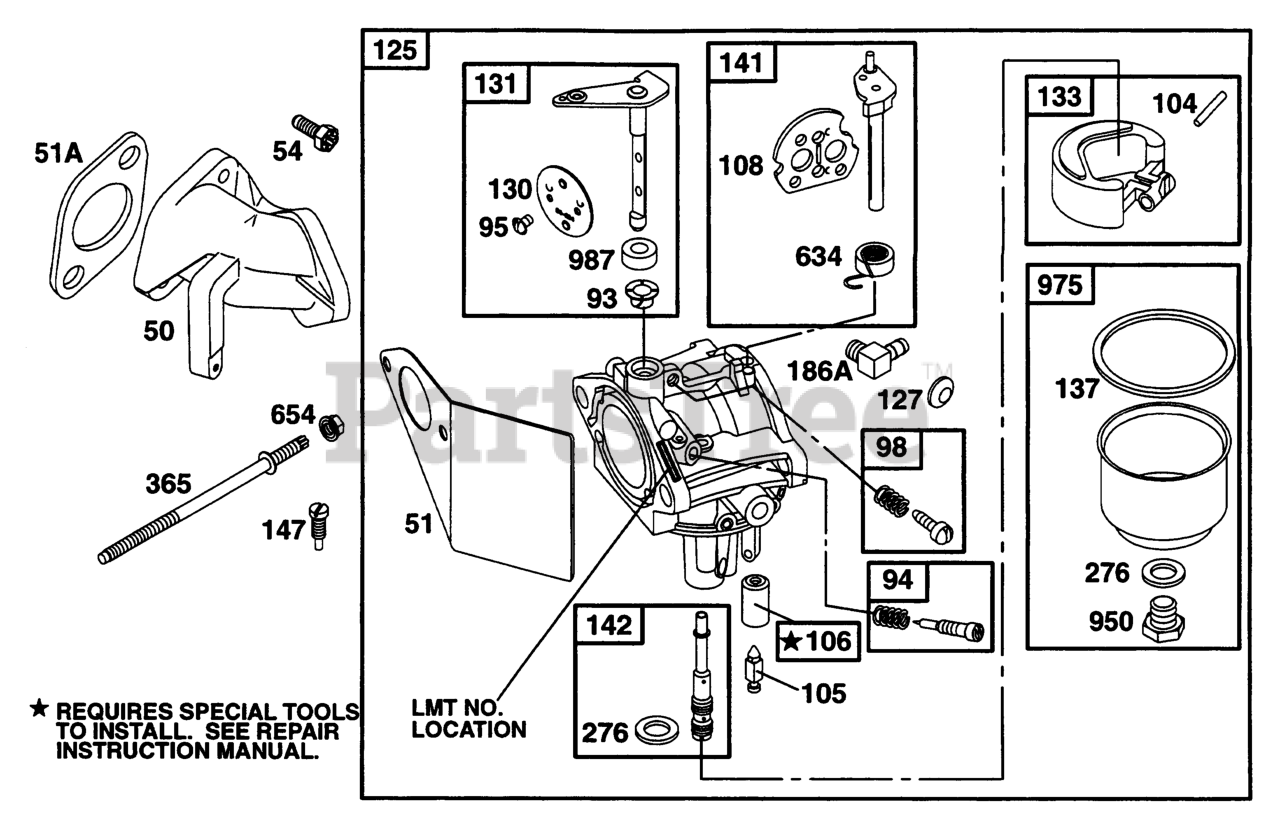

Carburetor Assy Parts Diagram

  • Title

50

Briggs & Stratton 214170

Manifold-Intake
(Superseded to 691157)

$

$

Not available

51A

Briggs & Stratton 272707

Gasket-Intake
(Superseded to 691885)

$4.99

$

In Stock, Qty 15

0

51

Briggs & Stratton 272708

Gasket-Intake
(Superseded to 691886)

$

$

Not available

54

Briggs & Stratton 94616

Screw
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

93

Briggs & Stratton 281346

Bushing-Throttle Shaft
(Superseded to 690602)

$9.49

$

In Stock, only 1 left!

0

94

Briggs & Stratton 494383

Kit-Idle Mixture (Used On Lmt 101)

$13.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 496589

Kit-Idle Mixture (Used On Lmt 175)

$12.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Screw
(Superseded to 691636)

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 495800

Kit-Idle Speed

$10.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231789

Pin-Float Hinge
(Superseded to 690525)

$4.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 231935

Valve-Float Needle
(Superseded to 691782)

$18.99

$

In Stock, only 1 left!

0

106

Briggs & Stratton 231856

Seat-Inlet
(Superseded to 691780)

$10.99

$

In Stock, only 1 left!

0

108

Briggs & Stratton 224666

Valve-Choke
(Superseded to 690467)

$5.49

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 497451

Carburetor Kit
(Superseded to 695501)

$204.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 224539

Valve-Throttle
(Superseded to 691750)

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 497846

Kit-Throttle Shaft

$36.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, Qty 11

0

137

Briggs & Stratton 281165

Gasket-Float Bowl
(Superseded to 281165S)

$4.99

$

In Stock, Qty 20+

0

141

Briggs & Stratton 497160

Kit-Choke Shaft

$15.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497448

Nozzle-Carburetor (High Altitude)(lmt 101)

$30.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497449

Nozzle-Carburetor (High Altitude)(lmt 101)

$30.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 499744

Nozzle-Carburetor (Standard)(used On Lmt 175)

$30.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 499826

Nozzle-Carb. (High Altitude)(used On Lmt 175)

$24.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 497472

Jet-Pilot (Used On Lmt 101)

$22.99

$

Usually ships in 2-12 days

0

186A

Briggs & Stratton 493496

Connector-Hose
(Superseded to 692317)

$6.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 281164

Washer-Sealing
(Superseded to 692255)

$5.49

$

In Stock, Qty 16

0

365

Briggs & Stratton 94778

Stud-Collar
(Superseded to 691672)

$8.49

$

In Stock, Qty 6

0

634

Briggs & Stratton 494455

Spring/Seal Assembly
(Superseded to 690802)

$9.49

$

Usually ships in 2-12 days

0

654

Briggs & Stratton 94010

Nut (Carburetor)
(Superseded to 690958)

$3.49

$

In Stock, Qty 7

0

950

Briggs & Stratton 94642

Screw (Float Bowl)
(Superseded to 691657)

$7.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 495933

Bowl-Float

$10.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 281166

Seal-Throttle Shaft
(Superseded to 691326)

$5.49

$

In Stock, only 1 left!

0
