227 RD - Husqvarna String Trimmer (SN: 20004000001 & Above) CARBURETOR & AIR FILTER Parts Diagram

String Trimmer

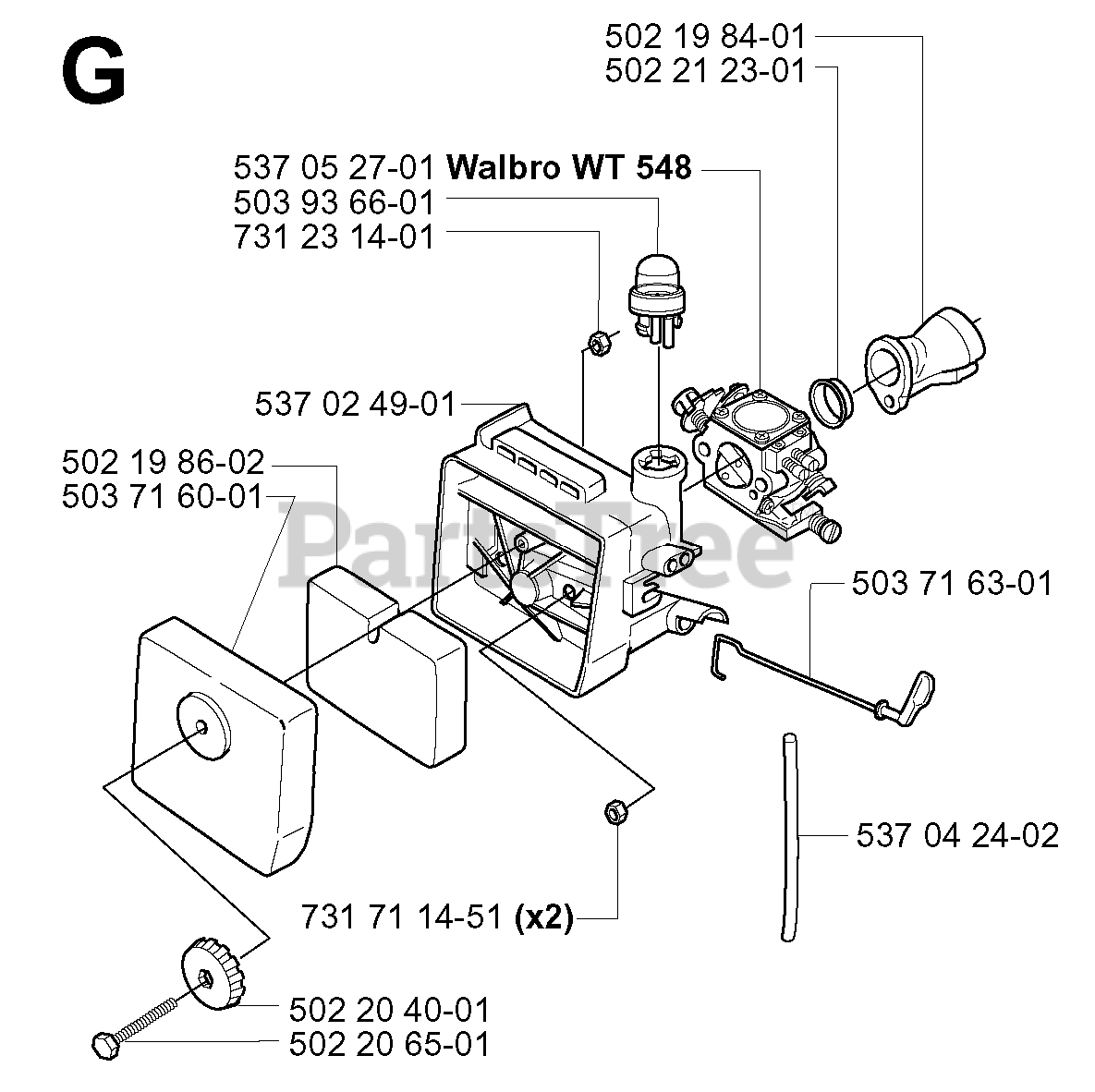

CARBURETOR & AIR FILTER Parts Diagram

  • Title

503 71 63-01

Husqvarna 503716301

CHOKE CONTROL

$

$

Not available

502 20 65-01

Husqvarna 502206501

SCREW 25MM THREAD LENGTH

$6.49

$

In Stock, Qty 6

0

537 05 27-01

Husqvarna 537052701

%CARBURETOR WT548 WALBRO
(Superseded to 577133001)

Note: WALBRO WT 548

$120.99

$

In Stock, Qty 5

0

731 71 14-51

Husqvarna 731711451

NUT

$6.49

$

In Stock, Qty 10

0

731 23 14-01

Husqvarna 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

503 93 66-01

Husqvarna 503936601

AIR PURGE BUBBLE

$24.99

$

In Stock, Qty 20+

0

537 04 24-02

Husqvarna 537042402

FUEL HOSE/38MM

$8.99

$

In Stock, Qty 20+

0

502 19 84-01

Husqvarna 502198401

INDUCTION PIPE

$34.99

$

In Stock, Qty 5

0

502 21 23-01

Husqvarna 502212301

GUIDE

$6.49

$

Usually ships in 3-10 days

0

537 02 49-01

Husqvarna 537024901

FILTER HOLDER

$

$

Not available

503 71 60-01

Husqvarna 503716001

AIR FILTER COVER

$

$

Not available

502 19 86-02

Husqvarna 502198602

AIR FILTER

$9.49

$

In Stock, Qty 7

0

502 20 40-01

Husqvarna 502204001

KNOB

$6.49

$

In Stock, Qty 20+

0
