22700 C - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) Gas Tank Assembly Parts Diagram

Walk-Behind Mower

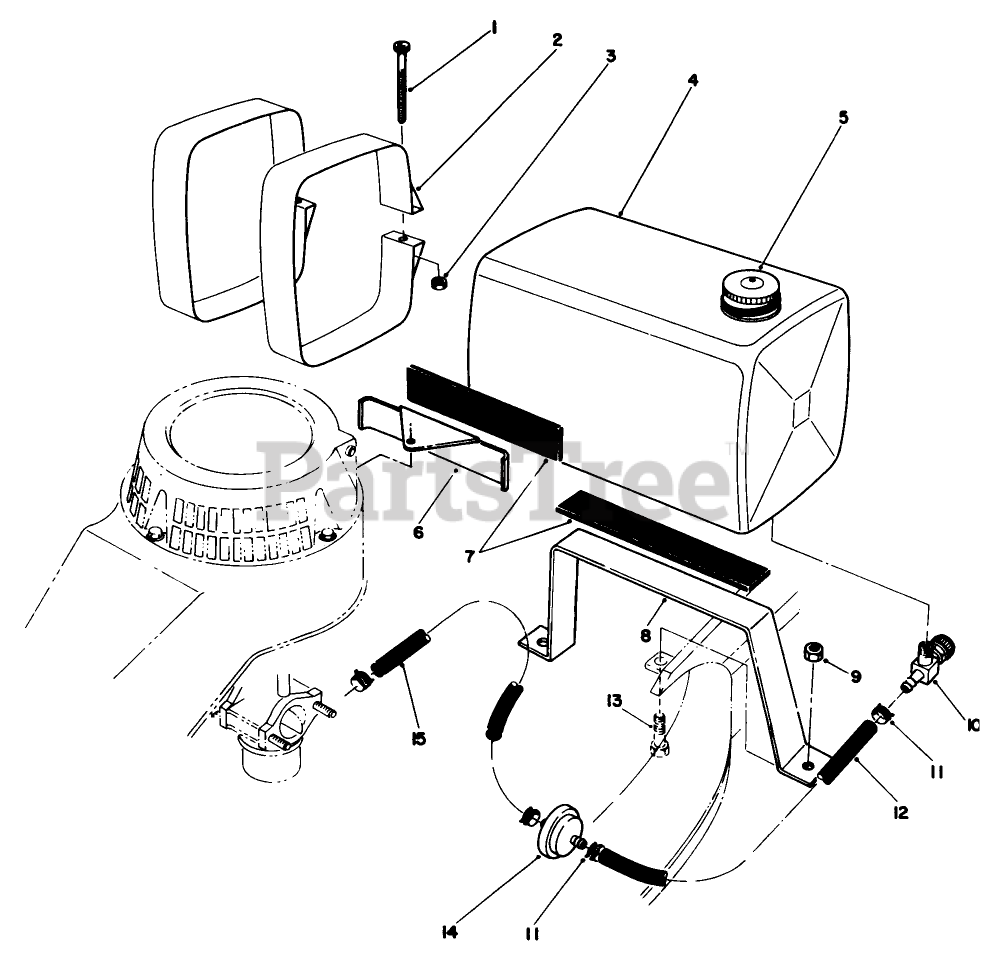

Gas Tank Assembly Parts Diagram

  • Title

1

Toro 3274-62

SCREW-HSH

$

$

Not available

2

Toro 39-0570

TANK STRAP WA

$143.99

$

Usually ships in 3-6 days

0

3

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 6

0

4

Toro 52-2331

5 QT GAS TANK

$475.99

$

Usually ships in 3-6 days

0

5

Toro 55-4700

DISCONTINUED

$

$

Not available

6

Toro 52-2270

FRT TANK MOUNT *

$

$

Not available

7

Toro 52-2290

ISOLATOR PAD

$

$

Not available

8

Toro 66-5950

TANK BOTTOM MOUNT *

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 304-71

DISCONTINUED

$

$

Not available

11

Toro 2412-95

CLAMP-FUEL LINE

$1.99

$

In Stock, Qty 6

0

12

Toro 51-3211

HOSE-FUEL

$7.99

$

In Stock, only 2 left!

0

13

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

15

Toro 51-3213

HOSE-FUEL

$

$

Not available
