22710 C - Toro Walk-Behind Mower (SN: 009900001 - 009999999) (1989) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

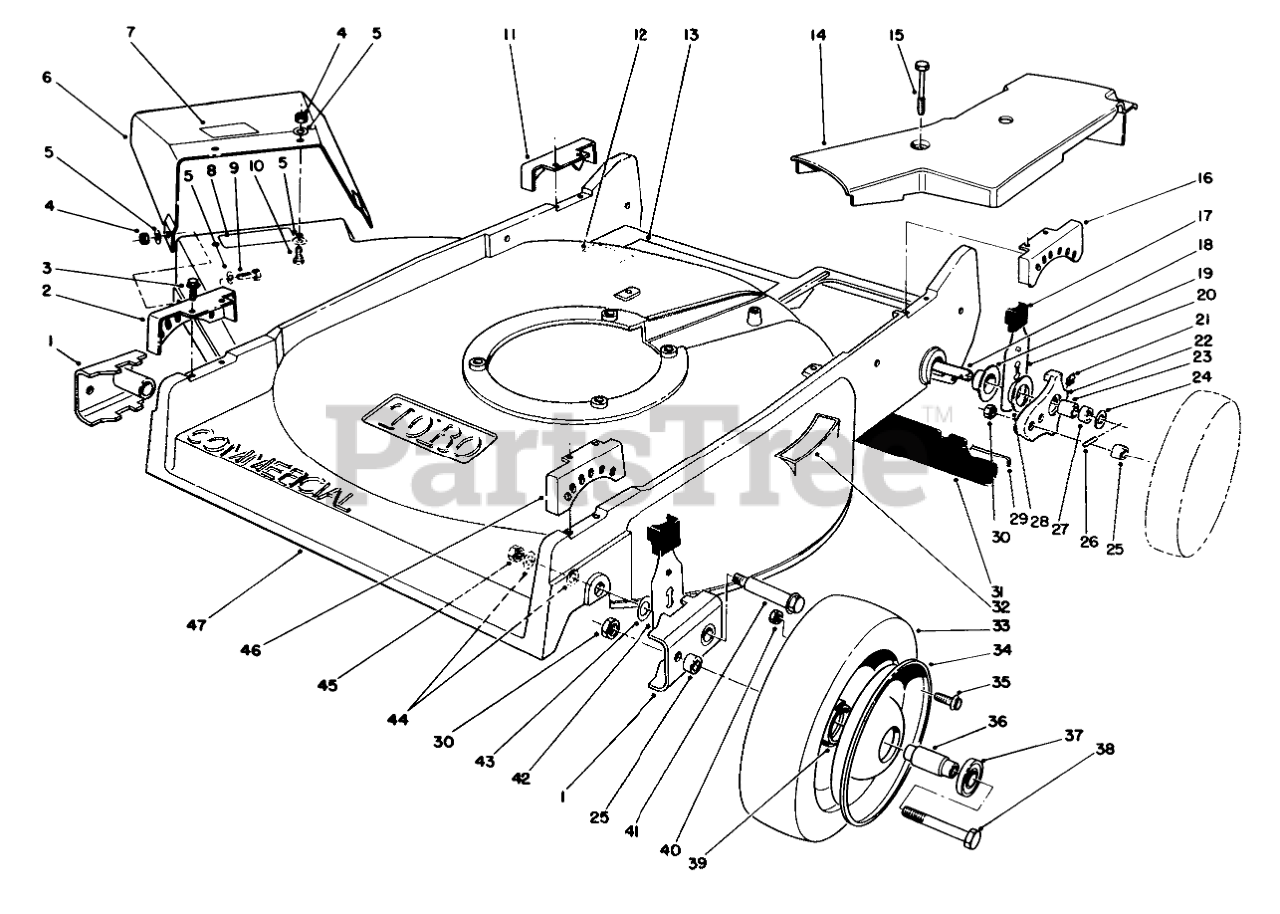

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 61-8300

ARM-PIVOT, FRONT

$28.99

$

In Stock, Qty 7

0

2

Toro 49-8770

QUADRANT-FRONT, RH

$26.99

$

In Stock, only 2 left!

0

3

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

4

Toro 329642

Nut

$

$

Currently unavailable

5

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 66-7040

Deflector Assy. (Incl. Ref. #7)

$

$

Not available

7

Toro 62-3860

Decal Danger
(Superseded to 93-6667)

$

$

Not available

8

Toro 66-7360

DECAL - WARNING/INT'L

$

$

Not available

9

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 49-8750

QUADRANT-REAR, RH

$26.99

$

In Stock, only 4 left!

0

12

Toro 40-2850

Decal

$

$

Not available

13

Toro 66-5100

Decal-Safety Instructions
(Superseded to 93-6657)

$25.99

$

Usually ships in 3-6 days

0

14

Toro 63-9441

COVER-BELT

$51.99

$

Usually ships in 3-6 days

0

15

Toro 37-7260

SCREW-HHFTF

$6.49

$

In Stock, Qty 5

0

16

Toro 49-8740

QUADRANT-REAR, LH

$26.99

$

In Stock, only 4 left!

0

17

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 10

0

18

Toro 49-8790

SHAFT-AXLE, REAR

$56.99

$

Usually ships in 3-6 days

0

19

Toro 48-2170

CAP-END

$10.99

$

In Stock, Qty 5

0

20

Toro 66-7561

REAR SPRING ARM ASM

$13.99

$

In Stock, Qty 8

0

21

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, Qty 8

0

22

Toro 42-3510

Pivot Arm Assembly (Rear)(Incl. Ref. #21, 23 & 27)

$

$

Not available

23

Toro 47-2900

BUSHING

$6.49

$

In Stock, Qty 20+

0

24

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, Qty 20+

0

25

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, Qty 12

0

26

Toro 32121-108

PIN-SPIROL

$6.99

$

Usually ships in 3-6 days

0

27

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

28

Toro 36-4770

WASHER

$6.49

$

Usually ships in 3-6 days

0

29

Toro 33-3208

ROD-SHIELD

$14.99

$

In Stock, Qty 16

0

30

Toro 32152-2

NUT-LOCK, CONE

$2.99

$

In Stock, Qty 20+

0

31

Toro 44-0580

SHIELD-TRAILING
(Superseded to 112-9989)

$27.99

$

In Stock, Qty 16

0

32

Toro 62-3950

DECAL - STEP PAD INT'L

$

$

Not available

33

Toro 53-7740

TIRE

$37.99

$

In Stock, Qty 7

0

34

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$18.99

$

In Stock, only 3 left!

0

35

Toro 3234-26

SCREW-HHF

$2.99

$

In Stock, Qty 16

0

36

Toro 52-2440

SPACER-BEARING

$8.99

$

In Stock, Qty 5

0

37

Toro 52-2450

BEARING-WHEEL

$17.99

$

In Stock, Qty 20+

0

38

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

39

Toro 52-2410

HUB-BEARING

$31.99

$

In Stock, Qty 14

0

40

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

41

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, Qty 12

0

42

Toro 66-7560

FRONT SPRING ARM ASM

$13.99

$

In Stock, Qty 10

0

43

Toro 257-3

WASHER-THRUST

$15.99

$

In Stock, Qty 5

0

44

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

45

Toro 52-3620

Nut
(Superseded to 32153-11)

$4.49

$

In Stock, Qty 17

0

46

Toro 49-8760

QUADRANT-FRONT, LH

$26.99

$

In Stock, Qty 10

0

47

Toro 13-0409

Housing-Commercial (Incl. Ref. #8, 13 & 32)
(Superseded to 16-9119)

$2307.99

$

Usually ships in 3-6 days

0

Toro 53-7720

Wheel & Tire Assembly (Incl. Ref. #33-37 & 39-40)
(Superseded to 121-1380)

$100.99

$

In Stock, only 4 left!

0
