2275 - Poulan Chainsaw, Type 2 (2008-07) Engine - Type 1-2 Parts Diagram

Chainsaw, Type 2

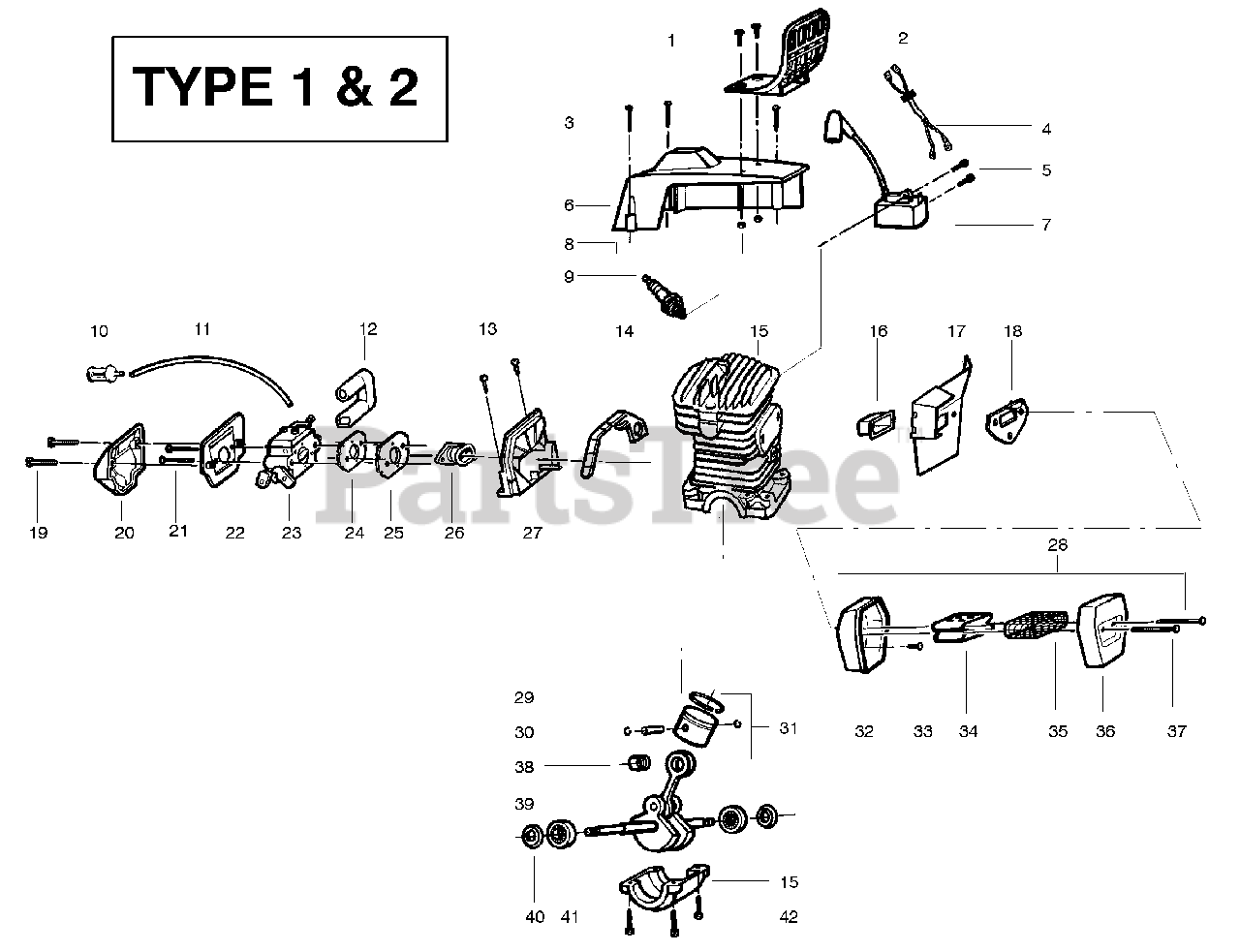

Engine - Type 1-2 Parts Diagram

  • Title

1

Electrolux/AYP 530015871

Screw (Type 1 only)
(Superseded to 530015650)

$

$

Not available

2

Electrolux/AYP 530047382

Handguard (Type 1 only)

$

$

Not available

3

Electrolux/AYP 530016154

Screw

$3.99

$

In Stock, Qty 20+

0

4

Electrolux/AYP 530037467

Switch Wire Ass'y.

$

$

Not available

5

Electrolux/AYP 530015895

Screw

$3.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530069700

Cylinder Shield Kit

$

$

Not available

7

Electrolux/AYP 530039143

Ignition Module
(Superseded to 575803501)

$18.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 534235901

Nut (Type 1 only)
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 952030150

Spark Plug (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

10

Electrolux/AYP 530047004

Fuel Pick-up Assy.
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 530069247

Kit - Line Carb / Purge

$6.49

$

In Stock, Qty 20+

0

12

Electrolux/AYP 530037530

Carb. Grommet
(Superseded to 530037464)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

14

Electrolux/AYP 530019251

Super Clean Seal

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530014943

C'case&Cylinder Assy
(Superseded to 530071490)

$

$

Not available

16

Electrolux/AYP 530037652

Heat Insulator

$

$

Not available

17

Electrolux/AYP 530047801

Muffler Plate
(Superseded to 530056256)

$12.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530019205

Muffler Gasket

$6.49

$

In Stock, only 4 left!

0

19

Electrolux/AYP 530015899

Screw

$6.49

$

In Stock, Qty 15

0

20

Electrolux/AYP 530036141

Air Filter (Top)
(Superseded to 545057701)

$4.99

$

In Stock, Qty 17

0

21

Electrolux/AYP 530015970

Screw

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530037478

Air Filter (Bottom)
(Superseded to 530059738)

$

$

Not available

23

Electrolux/AYP 530071345

Carburetor (WT-529)
(Superseded to 545013503)

$50.99

$

In Stock, Qty 12

0

24

Electrolux/AYP 530019172

Carburetor Gasket

$6.49

$

In Stock, Qty 20+

0

25

Electrolux/AYP 530037872

Carburetor Plate

$6.49

$

In Stock, Qty 7

0

26

Electrolux/AYP 530037668

Intake Boot
(Superseded to 530071654)

$

$

Not available

27

Electrolux/AYP 530053396

Carb. Adaptor

$66.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530069707

Muffler Kit

Note: (Incl. 32,34,36,37)

$

$

Not available

29

Electrolux/AYP 530037380

Piston Ring

$7.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 530015697

Piston Pin Retainer

$6.49

$

In Stock, Qty 6

0

31

Electrolux/AYP 530069548

Piston Kit

Note: (Incl. 29, 30 & 38)

$

$

Not available

32

Electrolux/AYP 530037728

Muffler Body

$

$

Not available

33

Electrolux/AYP 530015902

Bolt

$4.99

$

In Stock, Qty 7

0

34

Electrolux/AYP 530037813

Diffuser

$4.99

$

In Stock, only 2 left!

0

35

Electrolux/AYP 530036103

Spark Screen

$

$

Not available

36

Electrolux/AYP 530037249

Muffler Cover

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 530016170

Muffler Bolt

$

$

Not available

38

Electrolux/AYP 530032117

Piston Pin Bearing

$

$

Not available

39

Electrolux/AYP 530029794

C'shaft & Rod Ass'y.
(Superseded to 503920801)

$

$

Not available

40

C'shaft Seal

Note: (Refer to Service Reference)

$

$

Not available

41

C'shaft Bearing

Note: (Refer to Service Reference)

$

$

Not available

42

Electrolux/AYP 530015897

Screw

$6.49

$

In Stock, Qty 19

0

42

Electrolux/AYP 530087840

Operator Manual Type 1
(Superseded to 530088787)

Note: Not Shown

$4.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530088787

Operator Manual Type 2

Note: Not Shown

$4.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530047658

Decal-Kickback

Note: Not Shown

$

$

Not available

42

Electrolux/AYP 530031135

Scrench
(Superseded to 530031163)

Note: Not Shown

$9.99

$

In Stock, Qty 17

0

42

Electrolux/AYP 530031136

Worm Gear Puller

Note: Not Shown

$

$

Not available

42

Electrolux/AYP 530031112

Clutch Assy. Tool

Note: Not Shown

$14.99

$

In Stock, only 4 left!

0

42

Electrolux/AYP 530055298

Decal-Instruction

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530038653

Decal - On/Stop

Note: Not Shown

$3.99

$

In Stock, only 1 left!

0
