2275 - Poulan Chainsaw, Type 2 (2008-07) Starter - Type 1-2 Parts Diagram

Chainsaw, Type 2

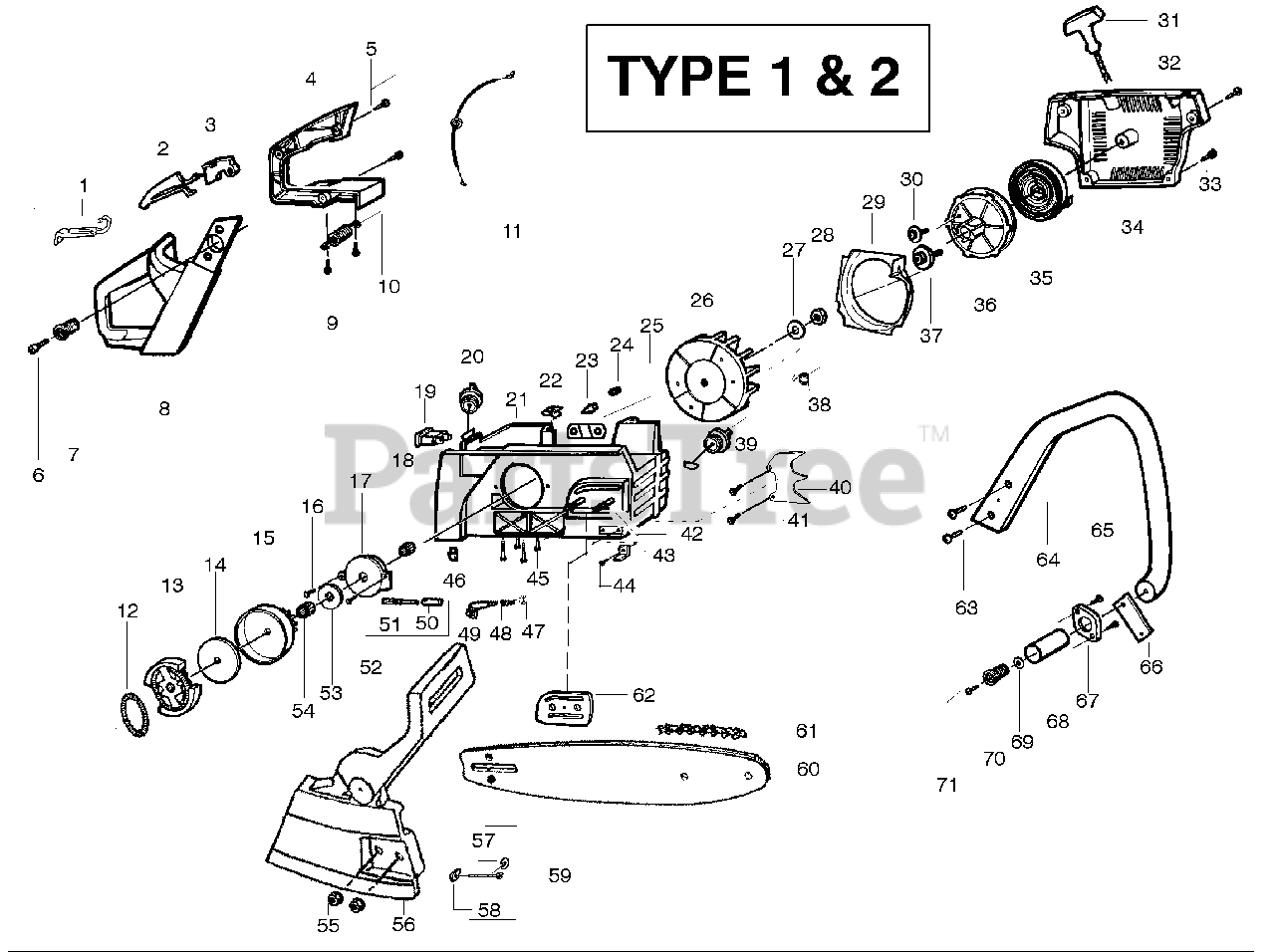

Starter - Type 1-2 Parts Diagram

  • Title

1

Electrolux/AYP 530053443

Choke Lever

$

$

Not available

2

Electrolux/AYP 530036098

Throttle Lockout

$

$

Not available

3

Electrolux/AYP 530036097

Throttle Trigger

$4.99

$

In Stock, only 3 left!

0

4

Electrolux/AYP 530036491

Handle Cover
(Superseded to 530071272)

$

$

Not available

5

Electrolux/AYP 530015957

Screw

$4.99

$

In Stock, Qty 7

0

6

Electrolux/AYP 530015937

Screw

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530038985

Spring - Isolator

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 530036130

Rear Pro Handle
(Superseded to 530071272)

$

$

Not available

9

Electrolux/AYP 530015906

Screw

$6.49

$

In Stock, Qty 7

0

10

Electrolux/AYP 530038986

Isolator Spring

$

$

Not available

11

Electrolux/AYP 530038471

Throttle Cable

$

$

Not available

12

Electrolux/AYP 530094188

Spring - Clutch
(Superseded to 530014949)

$13.99

$

In Stock, Qty 17

0

13

Electrolux/AYP 530014949

Clutch Ass'y.

$13.99

$

In Stock, Qty 17

0

14

Electrolux/AYP 530015611

Clutch Washer

$6.49

$

In Stock, Qty 20+

0

15

Electrolux/AYP 530069342

Kit - Clutch Drum & Bearing

Note: (Incl. 54)

$40.99

$

In Stock, Qty 12

0

16

Electrolux/AYP 530015896

Screw

$6.49

$

In Stock, Qty 13

0

17

Electrolux/AYP 530029835

Oil Pump Hsg.
(Superseded to 545036801)

$18.99

$

In Stock, Qty 20+

0

18

Electrolux/AYP 530029833

Oil Pump Worm

$8.99

$

In Stock, Qty 14

0

19

Electrolux/AYP 530069572

Switch Kit

$8.99

$

In Stock, only 3 left!

0

20

Electrolux/AYP 530010845

Fuel Cap Ass'y.

$

$

Not available

21

Electrolux/AYP 530047005

Chassis Ass'y.
(Superseded to 530037511)

$

$

Not available

22

Electrolux/AYP 530015922

Speed Nut

$6.49

$

In Stock, Qty 5

0

23

Electrolux/AYP 530026119

Check Valve

$4.49

$

In Stock, Qty 14

0

24

Electrolux/AYP 530029868

Vent Plug

$6.49

$

In Stock, Qty 13

0

25

Electrolux/AYP 530036043

Bar Stud Plate

$5.99

$

In Stock, only 4 left!

0

26

Electrolux/AYP 530039147

Flywheel Ass'y.
(Superseded to 575635502)

$17.99

$

In Stock, Qty 7

0

27

Electrolux/AYP 530015127

Washer

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530016071

Nut

$

$

Not available

29

Electrolux/AYP 530047667

Baffle Plate

$3.99

$

In Stock, only 4 left!

0

30

Electrolux/AYP 530016080

Screw

$6.49

$

In Stock, Qty 11

0

31

Electrolux/AYP 530037485

Starter Handle
(Superseded to 530056402)

$6.49

$

In Stock, only 2 left!

0

32

Electrolux/AYP 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

33

Electrolux/AYP 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

34

Electrolux/AYP 530047744

Fan Hsg. Ass'y. Kit

Note: (Incl. 29)

$

$

Not available

35

Electrolux/AYP 530015891

Recoil Spring
(Superseded to 545008005)

$

$

Not available

36

Electrolux/AYP 530069313

Kit - Starter Pulley

$7.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 530015920

Screw

$6.49

$

In Stock, Qty 8

0

38

Electrolux/AYP 530023817

Spring - Starter Dog

$6.49

$

In Stock, Qty 5

0

39

Electrolux/AYP 530010846

Oil Cap Ass'y.
(Superseded to 530057236)

$

$

Not available

40

Electrolux/AYP 530014381

Assy. - Spike

Note: (Incl.41)

$9.99

$

In Stock, Qty 16

0

41

Electrolux/AYP 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

42

Electrolux/AYP 530015877

Bar Bolt

$7.49

$

In Stock, only 1 left!

0

43

Electrolux/AYP 530029850

Chain Catcher

$6.49

$

In Stock, Qty 20+

0

44

Electrolux/AYP 530015906

Screw

$6.49

$

In Stock, Qty 7

0

45

Electrolux/AYP 530016037

Screw

$

$

Not available

46

Electrolux/AYP 530019174

Oil Seal
(Superseded to 545037101)

$10.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 530030189

Plug-Oiler Filter
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 530037821

Oil Filter
(Superseded to 530056533)

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 530037057

Oil Pick-up
(Superseded to 545047801)

$6.49

$

In Stock, Qty 12

0

50

Electrolux/AYP 530029834

Oil Pump Barrel
(Superseded to 545036801)

$18.99

$

In Stock, Qty 20+

0

51

Electrolux/AYP 530029838

Plunger & Gear Ass'y.
(Superseded to 545036801)

$18.99

$

In Stock, Qty 20+

0

52

Electrolux/AYP 530014410

Oil Pump Ass'y.
(Superseded to 545036801)

Note: (Incl. 17, 50, & 51)

$18.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 530015907

Thrust Washer

$

$

Not available

54

Electrolux/AYP 530032119

Clutch Bearing

$9.99

$

In Stock, Qty 9

0

55

Electrolux/AYP 530015917

Bar Mounting Nut

$3.99

$

In Stock, Qty 20+

0

56

Electrolux/AYP 530054803

Assy-Chainbrake

$66.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 530038593

Retainer-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

58

Electrolux/AYP 530015826

Bar Adjusting Pin

$4.99

$

In Stock, Qty 20+

0

59

Electrolux/AYP 530069611

Kit - Bar Adjust

Note: (Incl.57,58)

$4.99

$

In Stock, Qty 20+

0

60

Electrolux/AYP 952044326

Bar

$

$

Not available

61

Electrolux/AYP 952051310

Chain

$

$

Not available

62

Electrolux/AYP 530047855

Bar Plate

$

$

Not available

63

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

64

Electrolux/AYP 530038327

Handle
(Superseded to 530053955)

$15.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

66

Electrolux/AYP 530036113

Front Strap

$6.49

$

In Stock, only 1 left!

0

67

Electrolux/AYP 530036101

Isolator Plate

$

$

Not available

68

Electrolux/AYP 530036142

Spring Sleeve

$

$

Not available

69

Electrolux/AYP 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

70

Electrolux/AYP 530038985

Isolator Spring

$4.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 530015984

Screw

$2.49

$

Usually ships in 3-10 days

0
