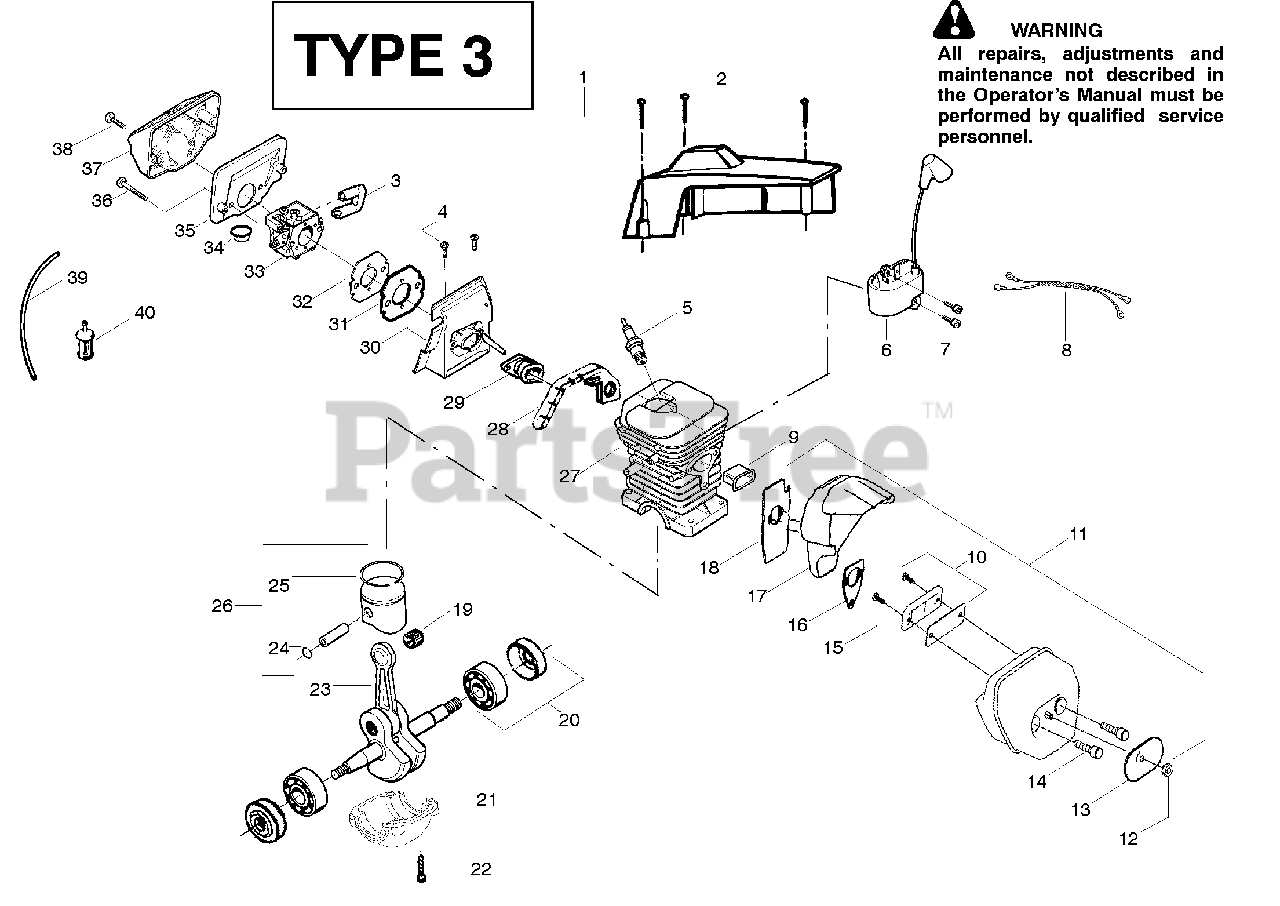

2275 - Poulan Chainsaw, Type 3 (2008-07) Engine - Type 3 Parts Diagram

Chainsaw, Type 3

Engine - Type 3 Parts Diagram

  • Title

1

Electrolux/AYP 530016154

Screw

$3.49

$

In Stock, Qty 20+

0

2

Electrolux/AYP 530069700

Kit-Cylinder Shield

$

$

Not available

3

Electrolux/AYP 530037464

Grommet -Carb.

$

$

Not available

4

Electrolux/AYP 530015814

Screw

$3.49

$

In Stock, only 3 left!

0

5

Electrolux/AYP 952030150

Spark Plug (RCJ-7Y)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 530039143

Module-Ignition
(Superseded to 575803501)

$22.99

$

In Stock, Qty 6

0

7

Electrolux/AYP 530015895

Screw

$

$

Not available

8

Electrolux/AYP 530037467

Assy-Switch Wire

$34.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530037652

Insulator-Heat

$

$

Not available

10

Electrolux/AYP 530071497

Kit-Spark Arrestor

Note: (Incl.# 15)

$

$

Not available

11

Electrolux/AYP 530071495

Kit-Muffler

Note: (Incl.10,12,13,14,16,17,18)

$22.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 530016359

Nut-Brass
(Superseded to 574266401)

$3.49

$

In Stock, only 2 left!

0

13

Electrolux/AYP 530056061

Cover-Bolt

$

$

Not available

14

Electrolux/AYP 530016338

Bolt-Muffler

$3.49

$

In Stock, Qty 8

0

15

Electrolux/AYP 530016351

Screw-Spark Screen

$

$

Not available

16

Electrolux/AYP 530055128

Gasket-Muffler

$4.99

$

In Stock, Qty 7

0

17

Electrolux/AYP 530055765

Assy-Muffler Backplate

$

$

Not available

18

Electrolux/AYP 530055402

Backplate - Alum.

$

$

Not available

19

Electrolux/AYP 530032117

Bearing

$

$

Not available

20

Electrolux/AYP 530056363

Assy-Bearing & Seal

$9.49

$

In Stock, only 2 left!

0

21

Electrolux/AYP 530049794

Cap-Crankcase

$

$

Not available

22

Electrolux/AYP 530015897

Screw

$3.49

$

In Stock, Qty 19

0

23

Electrolux/AYP 530029794

Assy-C’shaft & Rod
(Superseded to 503920801)

$

$

Not available

24

Electrolux/AYP 530015697

Retainer-Piston Pin

$3.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 530037380

Ring-Piston

$6.99

$

In Stock, Qty 11

0

26

Electrolux/AYP 530071496

Kit-Piston

Note: (Incl. 24, 25 )

$

$

Not available

27

Electrolux/AYP 530071491

Assy-Cyl/Crankcase

Note: (Incl.#21)

$

$

Not available

28

Electrolux/AYP 530019251

Seal-Super Clean

$

$

Not available

29

Electrolux/AYP 530037668

Intake Boot
(Superseded to 530071654)

$

$

Not available

30

Electrolux/AYP 530053396

Adapter-Carb.

$74.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530037872

Intake Plate-Carb

$5.99

$

In Stock, only 4 left!

0

32

Electrolux/AYP 530019172

Gasket-Carb.

$5.99

$

In Stock, Qty 18

0

33

Electrolux/AYP 530071492

Kit-Carburetor (WT-610)
(Superseded to 545013503)

$

$

Not available

34

Electrolux/AYP 530036792

Isolator

$

$

Not available

35

Electrolux/AYP 530037478

Filter-Air (Bottom)
(Superseded to 530059738)

$

$

Not available

36

Electrolux/AYP 530015970

Screw

$

$

Not available

37

Electrolux/AYP 530036141

Filter-Air (Top)
(Superseded to 545057701)

$5.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 530015899

Screw

$5.99

$

In Stock, Qty 15

0

39

Electrolux/AYP 530069247

Kit-Fuel Line (Small)

$2.49

$

In Stock, Qty 20+

0

40

Electrolux/AYP 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 530088183

Operator Manual

Note: Not Shown

$

$

Not available

40

Electrolux/AYP 530031135

Scrench
(Superseded to 587417201)

Note: Not Shown

$9.49

$

In Stock, Qty 5

0

40

Electrolux/AYP 530038653

Decal On/Stop

Note: Not Shown

$3.49

$

In Stock, only 1 left!

0

40

Electrolux/AYP 530055298

Decal-Warning/Start Inst.

Note: Not Shown

$

$

Not available
