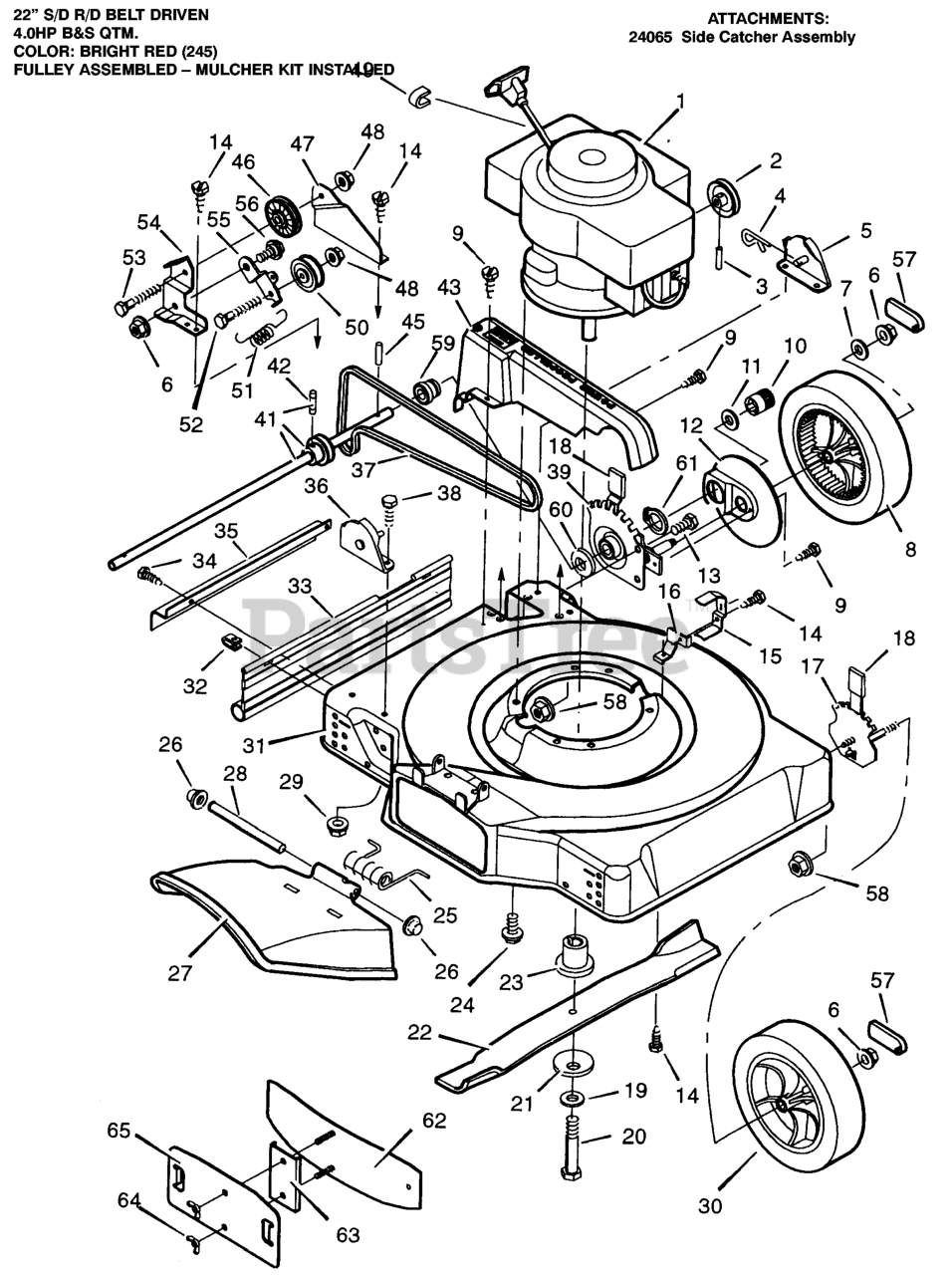

22775x8B - Scotts 22" Walk-Behind Mower (1994) > Parts Diagrams (2) > Mower Housing Assembly

  • Title
122782-3320-01

1

Engine *

Part# 122782-3320-01

OEM Warranty Repair Part for Murray

Currently unavailable

71434

2

Pulley

Part# 71434

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $13.71

032X64MA

3

Pin, Spring

Part# 032X64MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

031X10MA

4

Pin, Hair

Part# 031X10MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.80

42713E700

5

Bracket, Left Handle

Part# 42713E700

OEM Warranty Repair Part for Murray

Not available

015X84MA

6

Nut

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

17X169MA

7

Washer

Part# 17X169MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.96

43617

8

Wheel, Drive

Part# 43617

OEM Warranty Repair Part for Murray

Currently unavailable

26X245MA

9

Screw

Part# 26X245MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.15

43630

10

Gear, Right Pinion

Part# 43630

OEM Warranty Repair Part for Murray

Not available

43631

--

Gear, Left Pinion

Part# 43631

OEM Warranty Repair Part for Murray

Currently unavailable

17X139MA

11

Washer

Part# 17X139MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

71032

12

Cover, Dust

Part# 71032

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $7.41

001X85MA

13

Bolt, Hex

Part# 001X85MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

26X214MA

14

Screw

Part# 26X214MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.21

71051  Z

15

Guide, Belt

Part# 71051 Z

OEM Warranty Repair Part for Murray

Currently unavailable

71049  Z

16

Belt Guide, Briggs

Part# 71049 Z

Note: (For Models with Briggs & Stratton engines)

OEM Warranty Repair Part for Murray

Currently unavailable

71050  Z

--

Belt Guide, Tecumseh

Part# 71050 Z

Note: (For Models with Tecumseh engines)

OEM Warranty Repair Part for Murray

Currently unavailable

401024

17

Height Adjuster, Front

Part# 401024

OEM Warranty Repair Part for Murray

Currently unavailable

43394

18

Grip

Part# 43394

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

17X124MA

19

Washer

Part# 17X124MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

01X143MA

20

Bolt

Part# 01X143MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.03

17X137MA

21

Washer, Belleville

Part# 17X137MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.73

71113E701

22

Blade

Part# 71113E701

OEM Warranty Repair Part for Murray

Not available

71057

23

Adapter, Blade

Part# 71057

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $20.65

0025X6MA

24

Bolt, Engine

Part# 0025X6MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.97

0166X5MA

25

Spring, Torsion

Part# 0166X5MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

028X42MA

26

Push On Cap

Part# 028X42MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

42919

27

Deflector, Chute

Part# 42919

OEM Warranty Repair Part for Murray

Not available

215X11  Z

28

Rod

Part# 215X11 Z

OEM Warranty Repair Part for Murray

Currently unavailable

015X82MA

29

Nut

Part# 015X82MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92

43618

30

Wheel and Tire, Front

Part# 43618

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $26.60

70133

31

Housing

Part# 70133

OEM Warranty Repair Part for Murray

Currently unavailable

42743

32

Retainer

Part# 42743

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.13

71033

33

Deflector, Rear

Part# 71033

OEM Warranty Repair Part for Murray

Not available

26X245MA

34

Screw

Part# 26X245MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.15

71034

35

Guard, Axle

Part# 71034 (Superseded to 703127)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.29

42712E700

36

Bracket, Right Handle

Part# 42712E700

OEM Warranty Repair Part for Murray

Not available

037X72MA

37

Belt, Briggs & Stratton

Part# 037X72MA

Note: (For Models with Briggs & Stratton engines)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $19.08

037X73MA

--

Belt, Tecumseh

Part# 037X73MA

Note: (For Models with Tecumseh engines)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $14.29

001X38MA

38

Bolt

Part# 001X38MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.09

401023MA

39

Height Adjuster, Left

Part# 401023MA

OEM Warranty Repair Part for Murray

Not available

401022MA

--

Height Adjuster, Right

Part# 401022MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $47.31

71466

41

Axle, Pulley & Setscrew

Part# 71466

OEM Warranty Repair Part for Murray

Currently unavailable

023X50

42

Setscrew

Part# 023X50

OEM Warranty Repair Part for Murray

Currently unavailable

71024

43

Belt Guard, Briggs

Part# 71024

Note: (For Models with Briggs & Stratton engines)

OEM Warranty Repair Part for Murray

Not available

71025

--

Belt Guard, Tecumseh

Part# 71025

Note: (For Models with Tecumseh engines)

OEM Warranty Repair Part for Murray

Not available

43629

45

Pin Drive

Part# 43629

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.20

71055

46

Pulley, Idler

Part# 71055

OEM Warranty Repair Part for Murray

Not available

71046  Z

47

Support, Idler

Part# 71046 Z

OEM Warranty Repair Part for Murray

Currently unavailable

015X88MA

48

Nut

Part# 015X88MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.57

42189

49

Stop, Rope

Part# 42189

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.27

71054

50

Pulley, Idler

Part# 71054

OEM Warranty Repair Part for Murray

Not available

165X94MA

51

Spring, Extension

Part# 165X94MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $16.98

01X141MA

52

Bolt, Hex

Part# 01X141MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

01X102

53

Bolt, Hex

Part# 01X102

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

71045  Z

54

Bracket, Idler

Part# 71045 Z

OEM Warranty Repair Part for Murray

Currently unavailable

71026  Z

55

Arm, Idler

Part# 71026 Z

OEM Warranty Repair Part for Murray

Currently unavailable

009X48

56

Bolt, Shoulder

Part# 009X48

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.31

43615

57

Cap, Hub

Part# 43615

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.33

015X68MA

58

Nut, Flange

Part# 015X68MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.87

70250

59

Bearing and Retainer

Part# 70250

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $27.88

17X178MA

60

Washer, Belleville

Part# 17X178MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.33

011X24MA

61

Retainer Ring

Part# 011X24MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.38

71110  Z

62

Baffle

Part# 71110 Z

OEM Warranty Repair Part for Murray

Currently unavailable

71112  Z

63

Spacer

Part# 71112 Z

OEM Warranty Repair Part for Murray

Currently unavailable

014X81MA

64

Wingnut

Part# 014X81MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.83

71108  Z

65

Cover

Part# 71108 Z

OEM Warranty Repair Part for Murray

Currently unavailable

F-94480

--

Book, Instruction

Part# F-94480

OEM Warranty Repair Part for Murray

Currently unavailable
