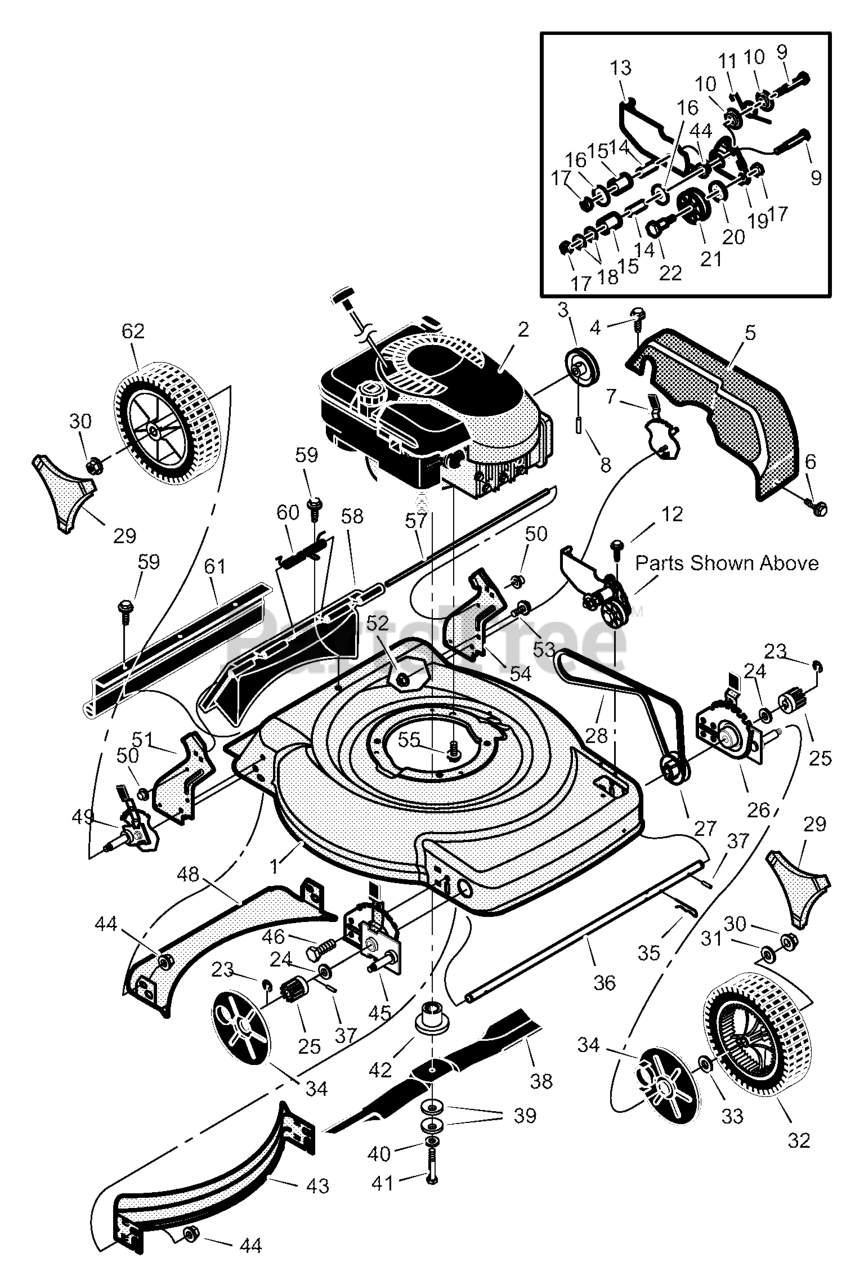

22815x8B - Scotts 22" Walk-Behind Mower (2000) > Parts Diagrams (3) > Mower Housing Assembly

  • Title
7501003

1

Housing

Part# 7501003

OEM Warranty Repair Part for Murray

Currently unavailable

-----

2

Engine

Part# -----

Not available

071434MA

3

Pulley, Drive

Part# 071434MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $13.71

26X256MA

4

Screw

Part# 26X256MA

OEM Warranty Repair Part for Murray

Not available

1101080

5

Cover, Belt (Gray)

Part# 1101080

OEM Warranty Repair Part for Murray

Not available

26X279MA

6

Screw

Part# 26X279MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.86

1101087MA

7

Adjuster, Left Rear Height

Part# 1101087MA (Superseded to 672605MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $17.38

032X64MA

8

Pin, Spring

Part# 032X64MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

01X120MA

9

Bolt

Part# 01X120MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.33

071789MA

10

Spacer, Idler Arm

Part# 071789MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

166X45MA

11

Spring

Part# 166X45MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

26X217MA

12

Screw

Part# 26X217MA (Superseded to 703961)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.74

672751  Z

13

Bracket, Idler Support

Part# 672751 Z

OEM Warranty Repair Part for Murray

Currently unavailable

071793MA

14

Bearing, Idler

Part# 071793MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.85

672754MA

15

Pulley, Idler

Part# 672754MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $6.53

017X45MA

16

Washer

Part# 017X45MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.27

015X43MA

17

Nut

Part# 015X43MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.29

17X102MA

18

Washer

Part# 17X102MA (Superseded to 703128)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.52

1101121  Z

19

Arm, Pivot

Part# 1101121 Z

OEM Warranty Repair Part for Murray

Currently unavailable

071788MA

20

Spacer, Idler

Part# 071788MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.21

071779MA

21

Pulley, Idler

Part# 071779MA

OEM Warranty Repair Part for Murray

Not available

009X50MA

22

Bolt, Shoulder

Part# 009X50MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92

011X16MA

23

E-Ring

Part# 011X16MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.86

17X186MA

24

Washer

Part# 17X186MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.50

071792MA

25

Gear, Pinion

Part# 071792MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $11.20

1101079MA

26

Adjuster, Left Front Height

Part# 1101079MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $42.29

071791MA

27

Pulley, Axle

Part# 071791MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $14.35

37X105MA

28

Belt

Part# 37X105MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $19.08

672805MA

29

Cap, Hub

Part# 672805MA (Superseded to 672446MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.03

015X84MA

30

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

17X169MA

31

Washer

Part# 17X169MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.96

672441MA

32

Wheel & Tire, Front

Part# 672441MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $40.13

17X120MA

33

Washer

Part# 17X120MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.98

071780MA

34

Cover, Dust

Part# 071780MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

0031X9MA

35

Pin, Hair

Part# 0031X9MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.86

672508MA

36

Axle

Part# 672508MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $27.65

043629MA

37

Pin, Drive

Part# 043629MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.20

672573E701MA

38

Blade

Part# 672573E701MA

OEM Warranty Repair Part for Murray

Not available

17X137MA

39

Washer, Belleville

Part# 17X137MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.73

17X124MA

40

Washer

Part# 17X124MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

01X153MA

41

Bolt

Part# 01X153MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.03

672503MA

42

Adapter, Blade

Part# 672503MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $8.69

672915E700

43

Baffle, Front

Part# 672915E700

OEM Warranty Repair Part for Murray

Currently unavailable

015X68MA

44

Nut, Flange

Part# 015X68MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.87

1101078MA

45

Adjuster, Right Front Height

Part# 1101078MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $41.71

001X85MA

46

Bolt

Part# 001X85MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

672916E700

48

Baffle, Rear

Part# 672916E700

OEM Warranty Repair Part for Murray

Currently unavailable

1101086MA

49

Adjuster, Right Rear Height

Part# 1101086MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $45.97

028X49MA

50

Push On Cap

Part# 028X49MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92

1101238E122MA

51

Bracket, Right Handle

Part# 1101238E122MA

OEM Warranty Repair Part for Murray

Not available

015X79MA

52

Nut, Flange

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

001X45MA

53

Bolt

Part# 001X45MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.02

1101239E122MA

54

Bracket, Left Handle

Part# 1101239E122MA (Superseded to 1101239E701MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $11.61

0025X6MA

55

Bolt, Engine

Part# 0025X6MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.97

215X21MA

57

Rod, Pivot

Part# 215X21MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $7.18

1101131

58

Door, Rear (Gray)

Part# 1101131

OEM Warranty Repair Part for Murray

Currently unavailable

26X245MA

59

Screw

Part# 26X245MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.15

166X44MA

60

Spring

Part# 166X44MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.21

1101105MA

61

Guard, Rear

Part# 1101105MA (Superseded to 7103347YP)

OEM Warranty Repair Part for Murray

Not available

1101114MA

62

Wheel & Tire, Rear

Part# 1101114MA (Superseded to 1101433MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $29.93

F-010406J

--

Instruction Book

Part# F-010406J

OEM Warranty Repair Part for Murray

Currently unavailable
