2284 (14A-734-100) - Cub Cadet Super Garden Tractor (SN: 864501 - 899000) Ignition, Electrical And Flywheel Parts Diagram

Super Garden Tractor

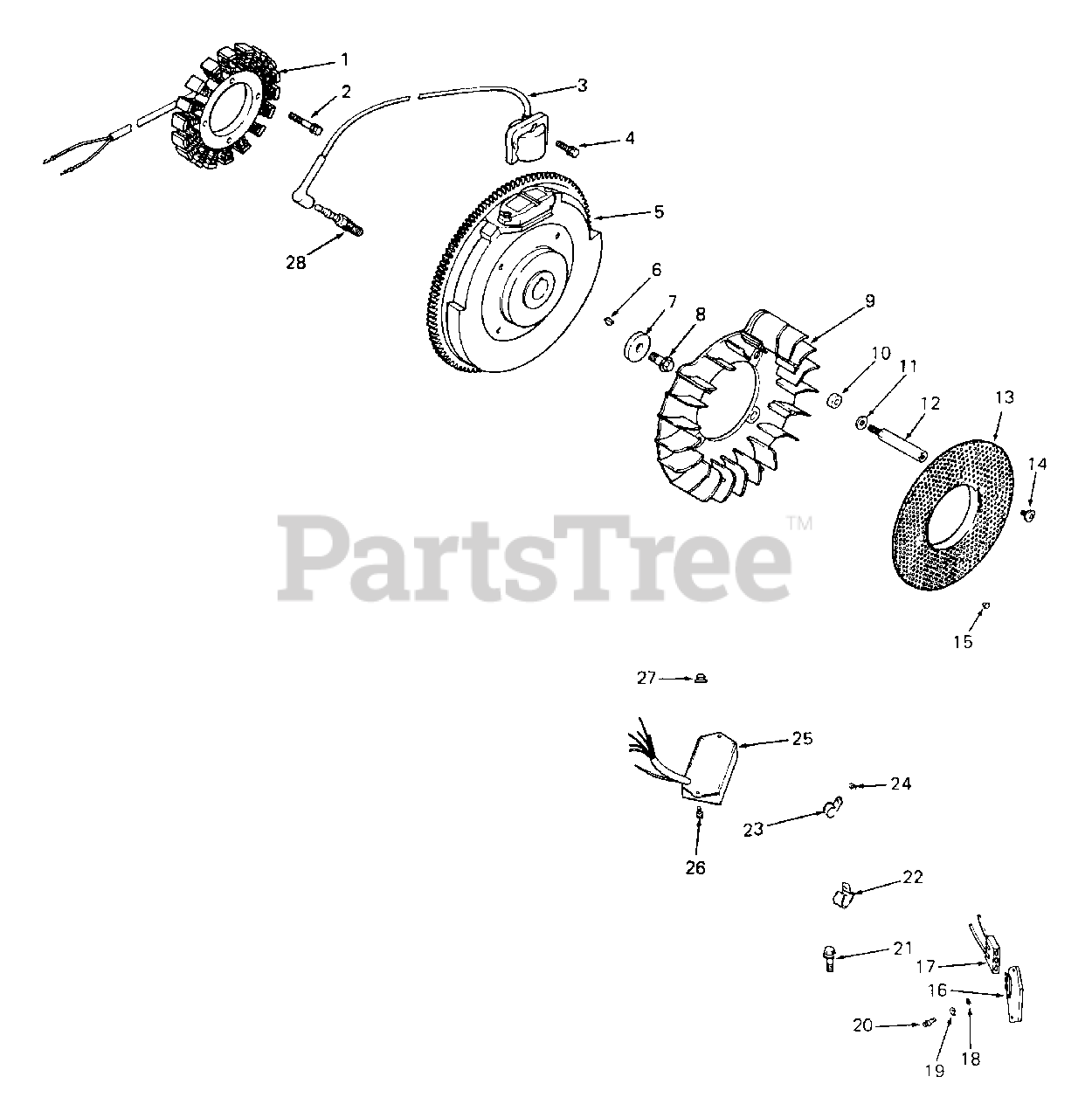

Ignition, Electrical And Flywheel Parts Diagram

  • Title

1

Cub Cadet KH-24-085-01

Stator, 15 Amp
(Superseded to KH-237878)

$

$

Not available

2

Cub Cadet KH-M-0548025

Screw, Stator Mtg, M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$2.99

$

In Stock, Qty 9

0

3

Cub Cadet KH-24-584-03

Module, Ignition
(Superseded to KH-24-584-36-S)

$112.99

$

In Stock, Qty 20+

0

4

Cub Cadet KH-M-0560020

Screw, Ignition Module, M5 x 0.8 x 20

$

$

Currently unavailable

5

Cub Cadet KH-24-025-02

Flywheel Assembly
(Superseded to KH-24-025-56-S)

$372.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KN-X-42-15

Key

$

$

Currently unavailable

7

Cub Cadet KH-12-468-03

Washer, Flywheel Mtg

$

$

Not available

8

Cub Cadet KH-12-086-14

Screw, Flywheel Mtg, M10 x 1.5 x 45.8
(Superseded to KH-25-086-361-S)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet KN-24-157-03

Fan

$

$

Currently unavailable

10

Cub Cadet KH-12-112-01

Spacer, Fan
(Superseded to KH-25-086-47)

$

$

Not available

11

Cub Cadet KH-X-25-53

Washer, Plain, 1/4

$

$

Not available

12

Cub Cadet KH-24-072-01

Stud, Grass Screen
(Superseded to KH-24-755-79)

$

$

Not available

13

Cub Cadet KH-24-162-15

Screen, Grass
(Superseded to KH-24-162-38-S)

$24.99

$

In Stock, only 4 left!

0

14

Cub Cadet KH-M-0657010

Screw, M6 x 1.0 x 10
(Superseded to KH-24-755-79)

$

$

Not available

15

Cub Cadet KH-25-086-43

Screw, Set

$

$

Not available

16

Cub Cadet KH-25-403-03

Regulator-Rectifier, 15 Amp
(Superseded to KH-41-403-10-S)

$126.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-236602

Connector, 3 contact
(Superseded to KH-25-155-41-S)

$29.99

$

In Stock, Qty 17

0

18

Cub Cadet KH-X-25-63

Washer, Plain, 1/4

$

$

Not available

19

Cub Cadet KH-X-25-92

Washer, Plain, 1/2

$

$

Not available

20

Cub Cadet KH-M-0461013

Screw, Phillips

$

$

Not available

21

Cub Cadet KH-M-0839025

Screw, Drive Shaft Adapter, M8 x 1.25 x 25

$

$

Not available

22

Cub Cadet KH-47-154-01

Clip, Cable
(Superseded to KH-47-154-01-S)

$5.49

$

In Stock, only 2 left!

0

23

Cub Cadet KH-48-154-02

Clip, Cable

$

$

Not available

24

Cub Cadet KH-X-25-63

Washer, Plain, 1/4

$

$

Not available

25

Cub Cadet KH-24-584-04

Module, Speed Advance
(Superseded to KH-24-584-09)

$

$

Not available

26

Cub Cadet KH-24-086-18

Screw, Phillips

$

$

Not available

27

Cub Cadet KH-24-100-02

Nut, Plastic

$

$

Not available

28

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$7.49

$

Usually ships in 3-6 days

0

Cub Cadet KH-24-176-42

Harness, Wire
(Superseded to KH-24-176-234-S)

$123.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-518-04

Lead, Green
(Superseded to KH-24-518-12-S)

Note: Rect.-Reg. 4" - 18 gauge - insulated grip barrel eyelets

$5.99

$

In Stock, only 2 left!

0
