228511x24B - Briggs & Stratton 22" Walk-Behind Mower (2005) (Meijer) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

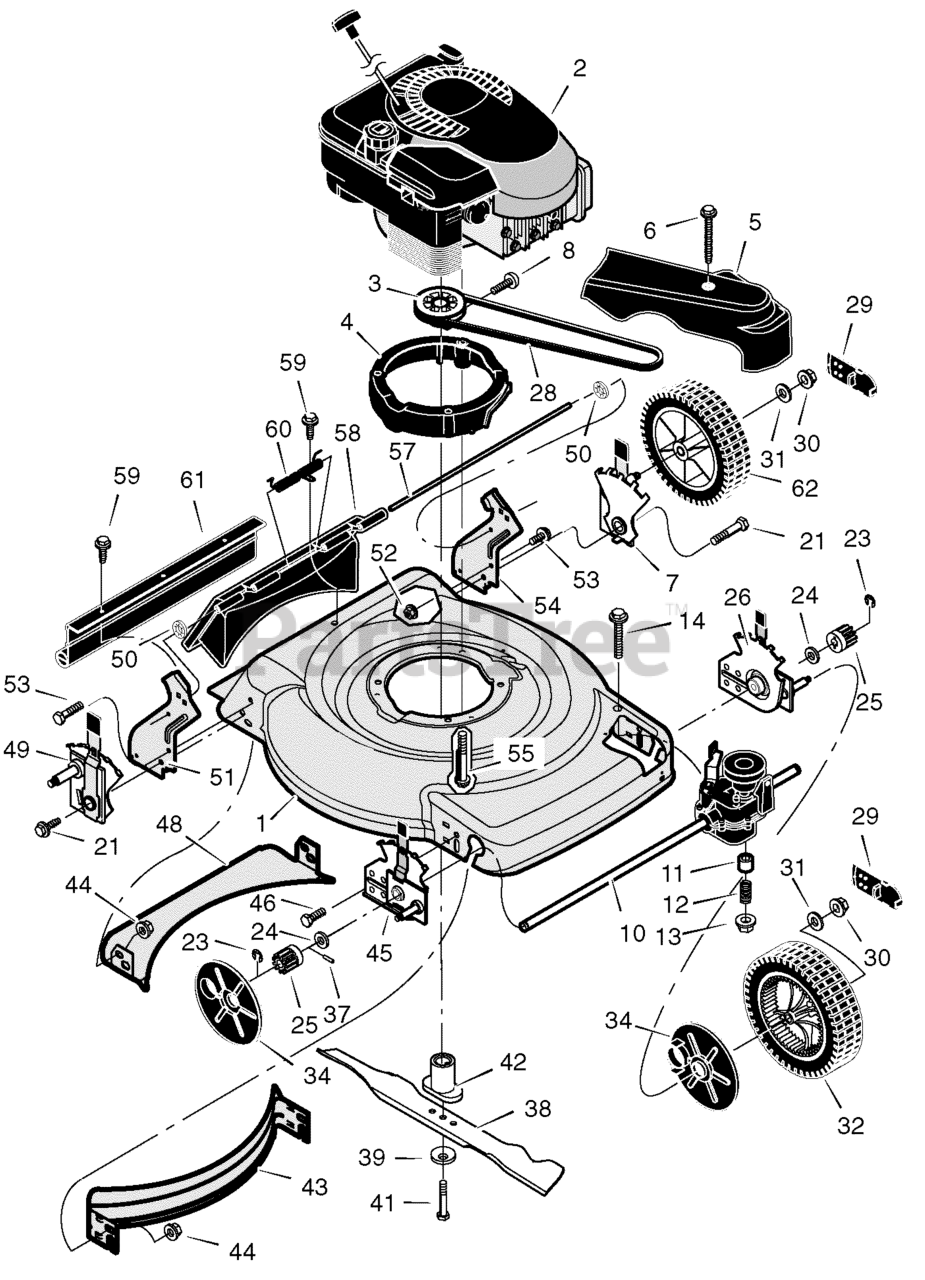

Mower Housing Assembly Parts Diagram

  • Title

1

Murray 7501041

Housing

$

$

Currently unavailable

2

Engine*

$

$

Not available

3

Murray 1101653

Pulley, Drive

$9.99

$

Usually ships in 2-12 days

0

4

Murray 1101639

Spacer, Engine

Note: (Black)

$21.99

$

Usually ships in 2-12 days

0

5

Murray 1101596

Cover, Belt (Black)

$37.99

$

Usually ships in 2-12 days

0

6

Murray 26X304

Screw

$4.49

$

Usually ships in 2-12 days

0

7

Murray 1102201

Adjuster, Left Rear Height

$

$

Currently unavailable

8

Murray 26X303

Screw

$3.99

$

Usually ships in 2-12 days

0

10

Murray 1101571

Transmission *

$101.99

$

Usually ships in 2-12 days

0

11

Murray 43844

Spacer
(Superseded to 7043844YP)

$34.99

$

In Stock, Qty 5

0

12

Murray 164X27

Spring, Compression

$

$

Not available

13

Murray 015X88

Nut
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

14

Murray 01X156

Bolt
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

21

Murray 1X111

Bolt

$4.49

$

In Stock, only 1 left!

0

23

Murray 011X16

E-Ring

$3.99

$

Usually ships in 2-12 days

0

24

Murray 17X186

Washer

$

$

Not available

25

Murray 71792

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

26

Murray 1101029

Adjuster, Left Front Height

$

$

Not available

28

Murray 37X123

Belt

$23.99

$

Usually ships in 2-12 days

0

29

Murray 43615

Cap, Hub

$4.49

$

Usually ships in 2-12 days

0

30

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

31

Murray 17X169

Washer

$4.49

$

In Stock, only 2 left!

0

32

Murray 71133

Wheel & Tire, Front

$50.99

$

In Stock, only 2 left!

0

34

Murray 71780

Cover, Dust

$5.99

$

In Stock, only 2 left!

0

37

Murray 43629

Pin, Drive

$5.99

$

In Stock, Qty 6

0

38

Murray 1101823E701

Blade

$19.99

$

In Stock, Qty 6

0

39

Murray 1101989

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

41

Murray 01X144

Bolt

$5.49

$

In Stock, Qty 5

0

42

Murray 1101826

Adapter, Blade

$

$

Not available

43

Murray 1102244E700

Baffle, Front

Note: (Included with Ref. No. 1)

$

$

Currently unavailable

44

Murray 015X68

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

45

Murray 1101028

Adjuster, Right Front Height

$62.99

$

Usually ships in 2-12 days

0

46

Murray 001X85

Bolt
(Superseded to 001X85MA)

$3.99

$

Usually ships in 2-12 days

0

48

Murray 672916E700

Baffle, Rear

Note: (Included with Ref. No. 1)

$

$

Currently unavailable

49

Murray 1102200

Adjuster, Right Rear Height

$

$

Currently unavailable

50

Murray 028X49

Retainer, Push

Note: (Included with Ref. No. 58.)

$3.99

$

In Stock, Qty 13

0

51

Murray 1101238E701

Bracket, Right Handle

$10.99

$

Usually ships in 2-12 days

0

52

Murray 015X79

Nut, Flange

$5.49

$

In Stock, Qty 20+

0

53

Murray 001X45

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 2 left!

0

54

Murray 1101239E701

Bracket, Left Handle

$12.99

$

Usually ships in 2-12 days

0

55

Murray 025X11

Bolt, Engine

$6.99

$

Usually ships in 2-12 days

0

57

Murray 215X21

Rod, Pivot

Note: (Included with Ref. No. 58.)

$7.99

$

Usually ships in 2-12 days

0

58

Murray 1101070

Door, Rear (Black)

$

$

Not available

59

Murray 26X245

Screw

$4.49

$

In Stock, Qty 6

0

60

Murray 166X44

Spring

Note: (Included with Ref. No. 58.)

$14.99

$

In Stock, only 3 left!

0

61

Murray 1101105

Guard, Rear

$

$

Not available

62

Murray 71132

Wheel & Tire, Rear

$36.99

$

In Stock, only 2 left!

0

--

Murray F-050408L

Book, Instruction

$

$

Currently unavailable
