228511x31B - Scotts 22" Walk-Behind Mower (2003)

22" Walk-Behind Mower

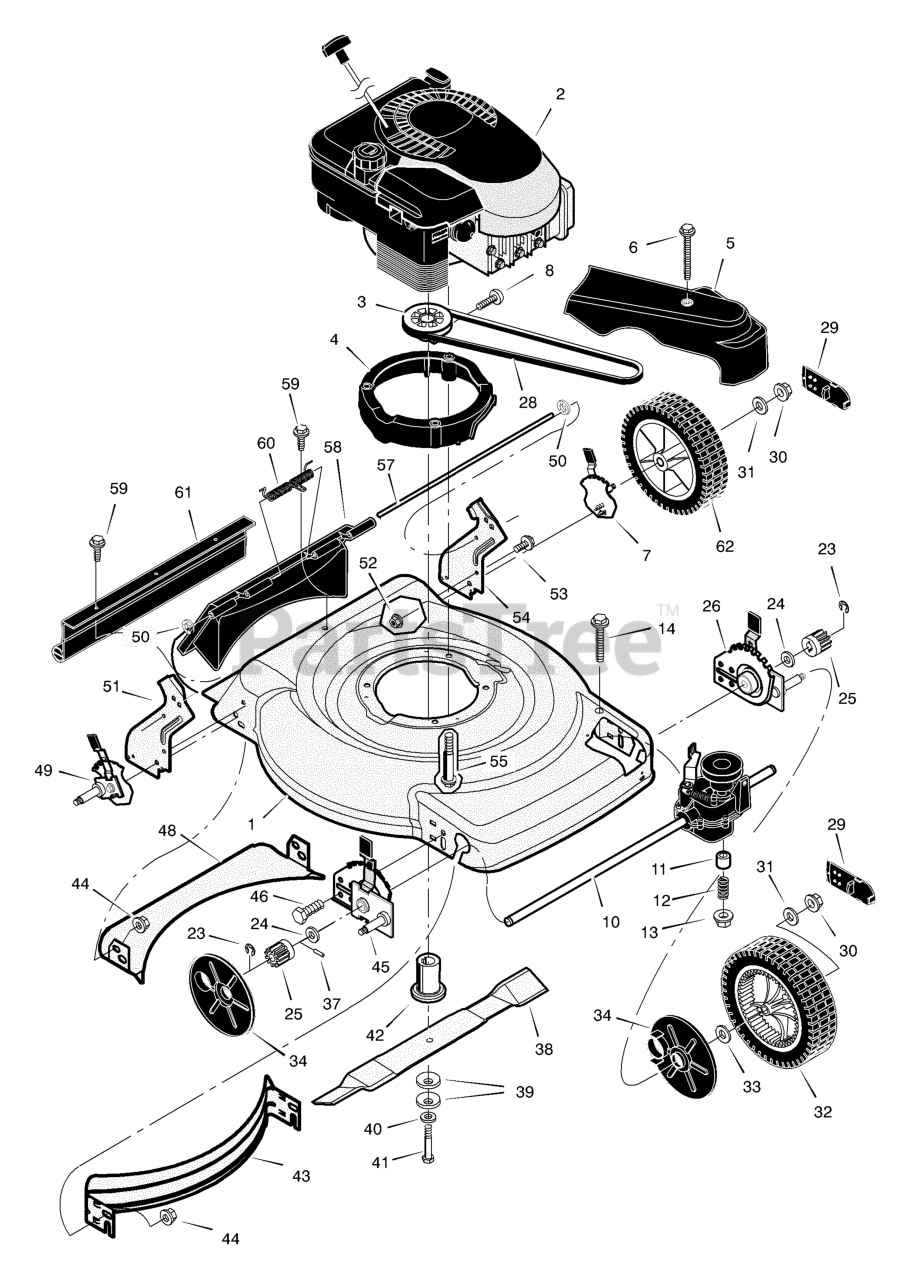

228511x31B - Scotts 22" Walk-Behind Mower (2003) > Parts Diagrams (2) > Housing Assembly

  • Title
7501006

1

Housing

Part# 7501006

OEM Warranty Repair Part for Murray

Currently unavailable

-----

2

Engine - BRIGGS & STRATTON *

Part# -----

Not available

1101436MA

3

Pulley, Drive

Part# 1101436MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $7.18

1101331MA

4

Spacer, Engine

Part# 1101331MA

Note: (Black)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $19.78

1101334MA

5

Cover, Belt (Black)

Part# 1101334MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $28.64

26X304MA

6

Screw

Part# 26X304MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.44

672605MA

7

Adjuster, Left Rear Height

Part# 672605MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $17.38

26X303MA

8

Screw

Part# 26X303MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.15

1101435MA

10

Transmission *

Part# 1101435MA

OEM Warranty Repair Part for Murray

Not available

043844MA

11

Spacer

Part# 043844MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $9.22

164X27MA

12

Spring, Compression

Part# 164X27MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

015X88MA

13

Nut

Part# 015X88MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.57

01X156MA

14

Bolt

Part# 01X156MA

OEM Warranty Repair Part for Murray

Not available

011X16MA

23

E-Ring

Part# 011X16MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.86

17X186MA

24

Washer

Part# 17X186MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.50

071792MA

25

Gear, Pinion

Part# 071792MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $11.20

1101029

26

Adjuster, Left Front Height

Part# 1101029

OEM Warranty Repair Part for Murray

Not available

37X116MA

28

Belt

Part# 37X116MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $19.08

043615MA

29

Cap, Hub

Part# 043615MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.33

015X84MA

30

Nut, Flange

Part# 015X84MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.70

17X169MA

31

Washer

Part# 17X169MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.96

071133MA

32

Drive Wheel & Tire, Front

Part# 071133MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $37.04

017X75MA

33

Washer

Part# 017X75MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

071780MA

34

Cover, Dust

Part# 071780MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

043629MA

37

Pin, Drive

Part# 043629MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.20

1101120E701MA

38

Blade

Part# 1101120E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $21.70

17X137MA

39

Washer, Belleville

Part# 17X137MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.73

17X124MA

40

Washer

Part# 17X124MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

01X144MA

41

Bolt

Part# 01X144MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.73

1101336MA

42

Adapter, Blade

Part# 1101336MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $8.69

672915E700

43

Baffle, Front

Part# 672915E700

Note: (Included with Ref. No. 1)

OEM Warranty Repair Part for Murray

Currently unavailable

015X68MA

44

Nut, Flange

Part# 015X68MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.87

1101028MA

45

Adjuster, Right Front Height

Part# 1101028MA (Superseded to 1101078MA)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $41.71

001X85MA

46

Bolt

Part# 001X85MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

0020X3MA

47

Washer

Part# 0020X3MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $2.98

672916E700

48

Baffle, Rear

Part# 672916E700

Note: (Included with Ref. No. 1)

OEM Warranty Repair Part for Murray

Currently unavailable

672604MA

49

Adjuster, Right Rear Height

Part# 672604MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $17.62

028X49MA

50

Push Retainer

Part# 028X49MA

Note: (Included with Ref. No. 58)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.92

1101238E700

51

Bracket, Right Handle

Part# 1101238E700

OEM Warranty Repair Part for Murray

Not available

015X79MA

52

Nut, Flange

Part# 015X79MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

001X45MA

53

Bolt

Part# 001X45MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.02

1101239E700

54

Bracket, Left Handle

Part# 1101239E700

OEM Warranty Repair Part for Murray

Not available

025X11MA

55

Bolt, Engine

Part# 025X11MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 6 to 12 business days

Your price: $4.78

215X21MA

57

Rod, Pivot

Part# 215X21MA

Note: (Included with Ref. No. 58)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $7.18

1101070MA

58

Door, Rear

Part# 1101070MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $35.76

26X245MA

59

Screw

Part# 26X245MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.15

166X44MA

60

Spring

Part# 166X44MA

Note: (Included with Ref. No. 58)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $10.21

1101105MA

61

Guard, Rear

Part# 1101105MA (Superseded to 7103347YP)

OEM Warranty Repair Part for Murray

Not available

071132MA

62

Wheel & Tire, Rear

Part# 071132MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $26.60

F-030429L

--

Book, Instruction

Part# F-030429L

OEM Warranty Repair Part for Murray

Currently unavailable
