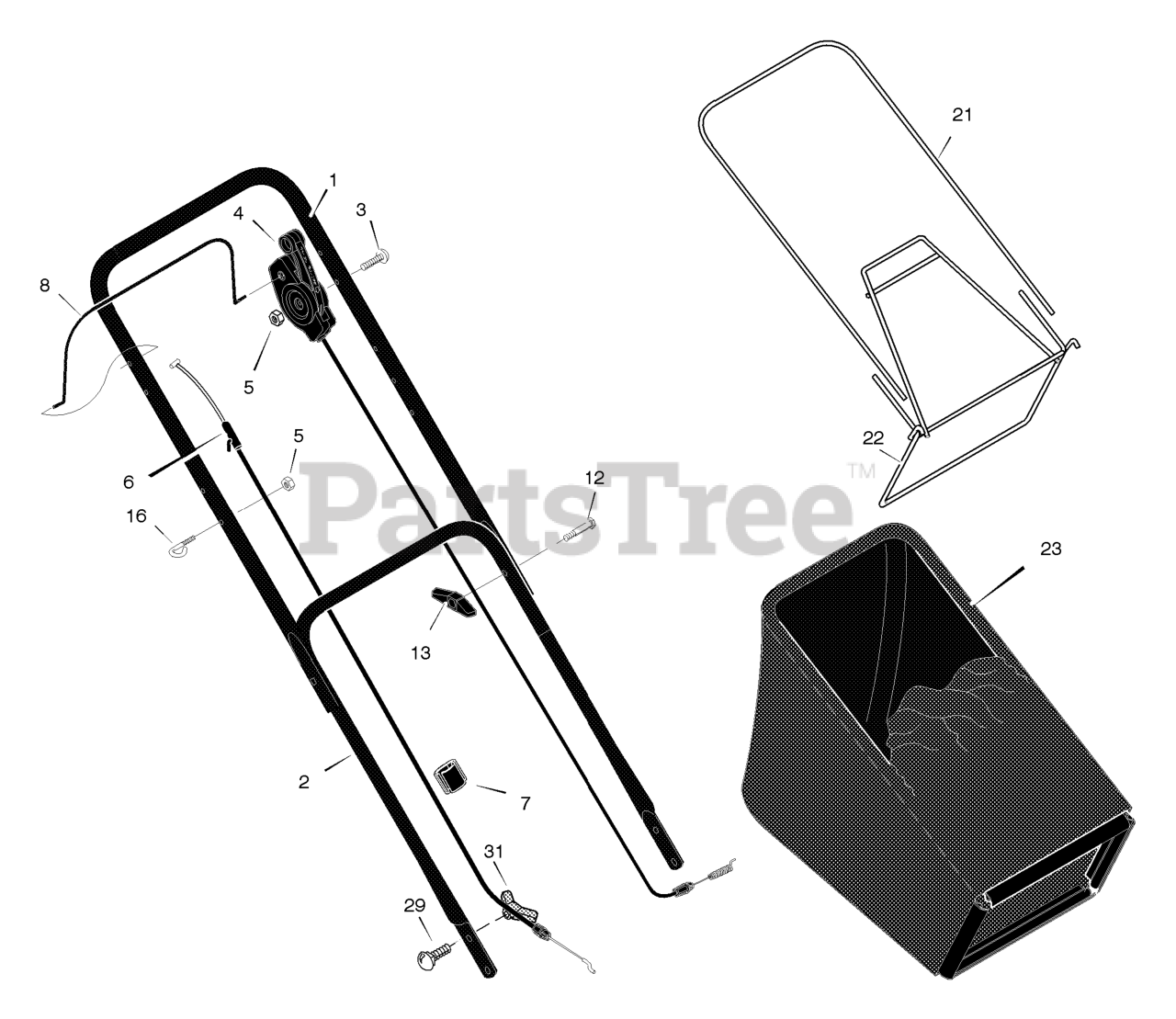

228511x31D - Scotts 22" Walk-Behind Mower (2004) > Parts Diagrams (2) > Handle & Bag Assembly

  • Title
1101099E701MA

1

Handle, Upper (Black)

Part# 1101099E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $94.15

672906E701MA

2

Handle, Lower (Black)

Part# 672906E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $99.58

025X14MA

3

Bolt

Part# 025X14MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.03

1101670MA

4

Control, Drive

Part# 1101670MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $39.96

15X116MA

5

Locknut

Part# 15X116MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.19

1101365MA

6

Cable, Stop

Part# 1101365MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $20.71

1101353MA

7

Fastener, Cable

Part# 1101353MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $4.03

1101076E701MA

8

Lever, Stop

Part# 1101076E701MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $105.35

002X77MA

12

Bolt

Part# 002X77MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

071294

13

Knob

Part# 071294 (Superseded to 703065)

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $5.09

071530MA

16

Guide, Rope

Part# 071530MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.03

1101075MA

21

Frame, Top

Part# 1101075MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $90.42

1101074MA

22

Frame Assembly

Part# 1101074MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $44.68

1101035MA

23

Bag, Cloth

Part# 1101035MA

OEM Warranty Repair Part for Murray

Not available

002X81MA

29

Bolt, Carriage

Part# 002X81MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.74

071495MA

31

Knob, Plastic

Part# 071495MA

OEM Warranty Repair Part for Murray

Usually leaves our warehouse in 1 business day

Your price: $3.44
