228511x8F - Scotts 22" Walk-Behind Mower (2004) Handle Assembly - Electric - Start Models Parts Diagram

22" Walk-Behind Mower

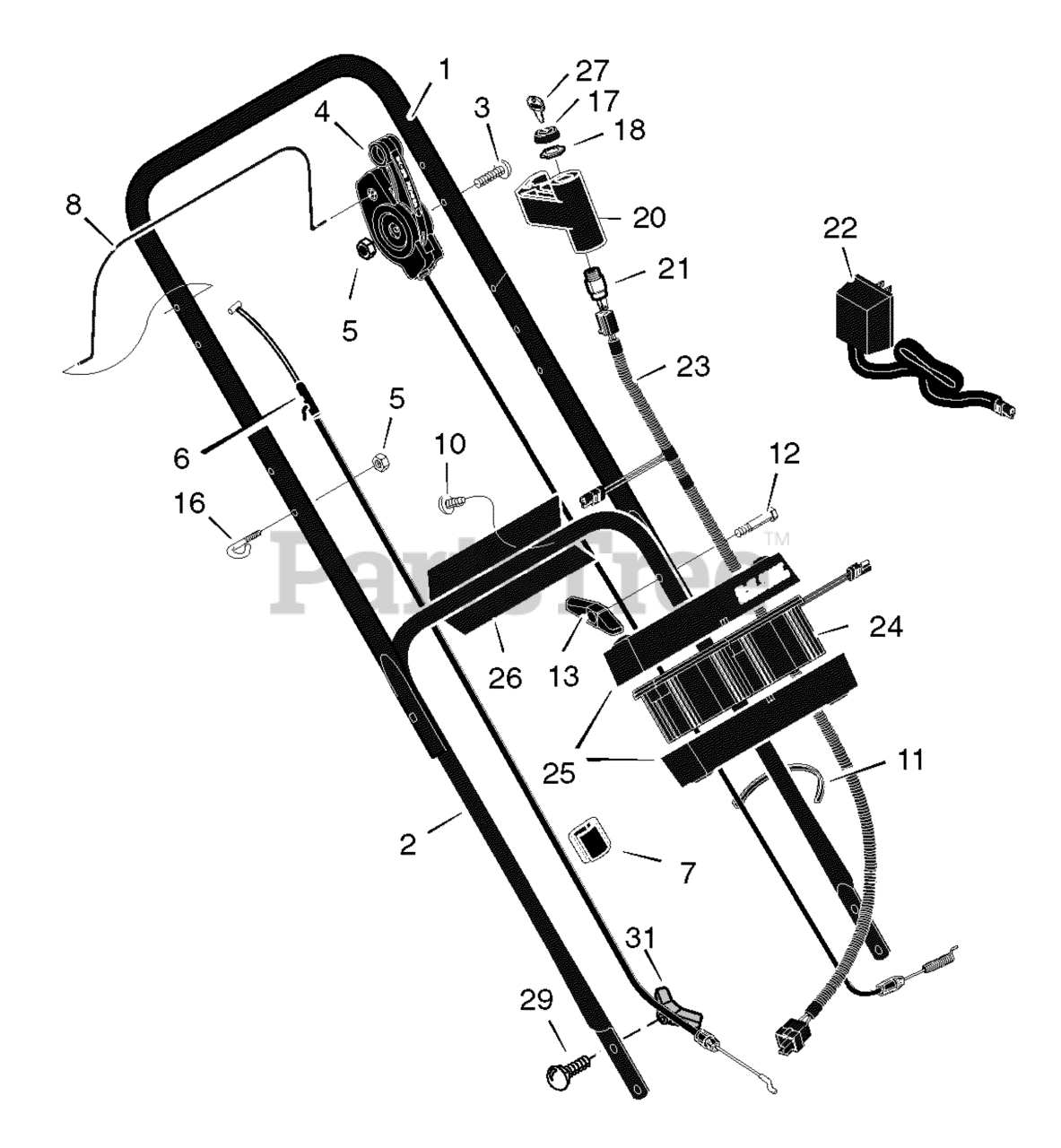

Handle Assembly - Electric - Start Models Parts Diagram

  • Title

1

Murray 1101557E701

Handle, Upper (Black)

$106.99

$

Usually ships in 2-12 days

0

1

Murray 1101557E724

Handle, Upper (Gray)

$106.99

$

Usually ships in 2-12 days

0

2

Murray 672907E701

Handle, Lower (Black)

$

$

Not available

2

Murray 672907E724

Handle, Lower (Gray)

$

$

Not available

3

Murray 025X14

Bolt

$3.99

$

Usually ships in 2-12 days

0

4

Murray 1101670

Control, Drive

$54.99

$

Usually ships in 2-12 days

0

5

Murray 15X116

Locknut

$4.49

$

In Stock, Qty 20+

0

6

Murray 1101365

Cable, Stop (Briggs)

$27.99

$

In Stock, Qty 9

0

6

Murray 1101366

Cable, Stop (Tecumseh)

$12.99

$

In Stock, only 1 left!

0

7

Murray 1101353

Fastener, Double Cable

$5.99

$

In Stock, only 2 left!

0

8

Murray 1101076E701

Lever, Stop

$

$

Not available

10

Murray 26X220

Screw

$

$

Not available

11

Murray 71372

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

12

Murray 002X77

Bolt

$3.99

$

In Stock, Qty 6

0

13

Murray 71294

Knob

$7.99

$

In Stock, only 3 left!

0

16

Murray 71530

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

17

Murray 91488

Cap
(Superseded to 794903)

$5.49

$

In Stock, only 1 left!

0

18

Murray 91489

Nut
(Superseded to 91489GS)

$1.99

$

Usually ships in 2-12 days

0

20

Murray 1101602

Cover, Ignition

$7.99

$

Usually ships in 2-12 days

0

21

Murray 776011

Switch Ignition & Key

$20.99

$

Usually ships in 2-12 days

0

22

Murray 671992

Charger, Battery

$

$

Not available

23

Murray 250X110

Harness, Wiring

$38.99

$

In Stock, only 1 left!

0

24

Murray 776014

Battery

$

$

Not available

25

Murray 776013

Case, Battery

$

$

Currently unavailable

26

Murray 671959E701

Bracket, Battery

$

$

Not available

27

Murray 672220

Key, Ignition

$

$

Not available

29

Murray 002X81

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

31

Murray 71495

Knob, Plastic

$

$

Not available
