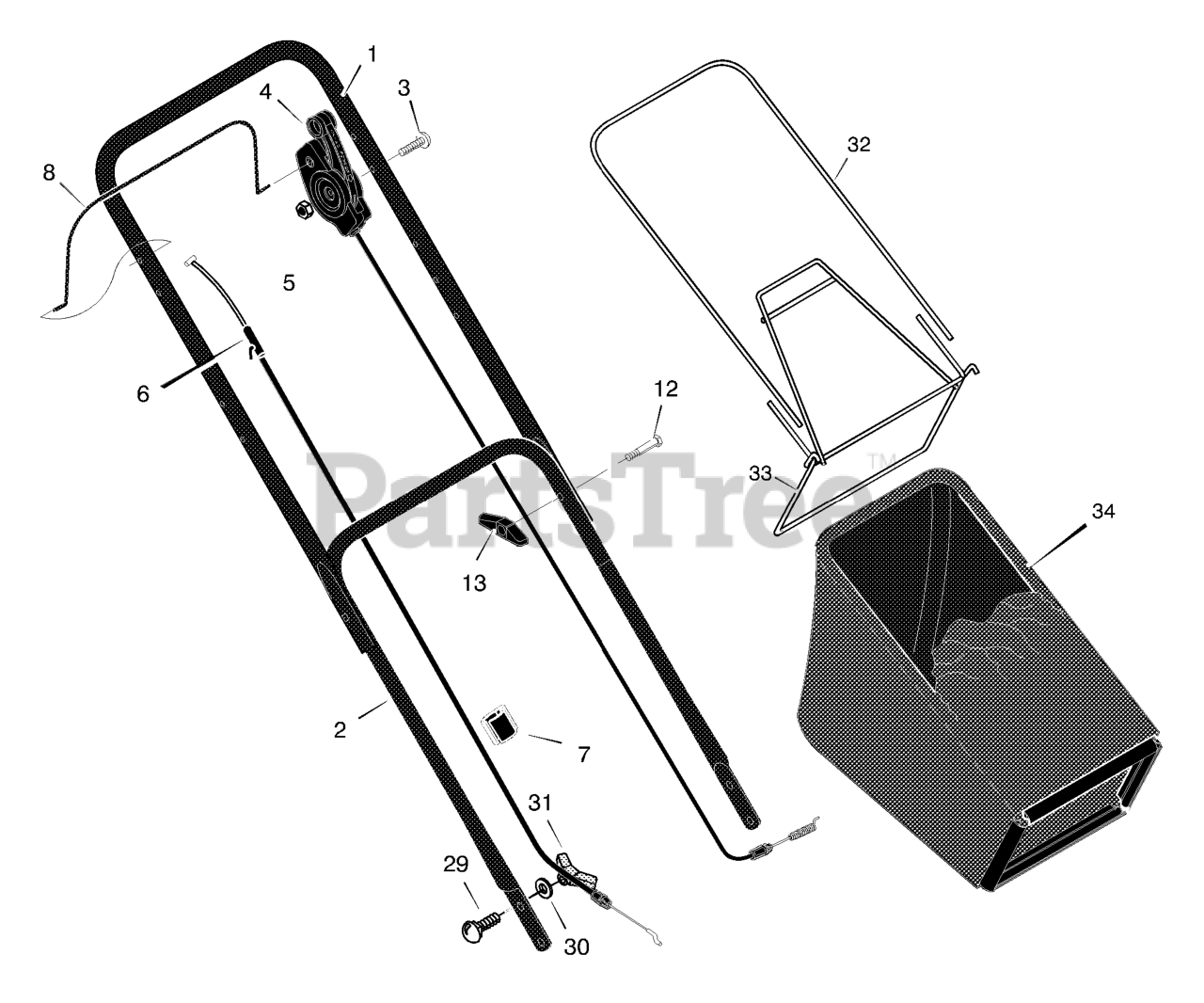

228530x7A - Scotts 22" Walk-Behind Mower (2001) Handle & Bag Assembly Parts Diagram

22" Walk-Behind Mower

Handle & Bag Assembly Parts Diagram

  • Title

1

Murray 1101099E724

Handle, Upper (Gray)

$

$

Not available

2

Murray 672906E724MA

Handle, Lower (Gray)
(Superseded to 672906E701MA)

$142.99

$

Usually ships in 2-12 days

0

3

Murray 025X14MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

4

Murray 1101344MA

Control, Drive

$68.99

$

Usually ships in 2-12 days

0

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 1101365MA

Cable, Stop

$27.99

$

In Stock, Qty 9

0

7

Murray 1101352

Fastener, Single Cable

$5.99

$

In Stock, only 2 left!

0

8

Murray 1101076E701MA

Lever, Stop

$71.99

$

Usually ships in 2-12 days

0

10

Murray 26X220MA

Screw

$3.49

$

Usually ships in 2-12 days

0

12

Murray 002X77MA

Bolt

$3.99

$

In Stock, Qty 7

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

16

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

29

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

30

Murray 17X168ZMA

Washer

$6.49

$

Usually ships in 2-12 days

0

31

Murray 071495MA

Knob, Plastic

$4.99

$

In Stock, only 3 left!

0

32

Murray 1101075MA

Tube, Bag

$113.99

$

Usually ships in 2-12 days

0

33

Murray 1101083

Frame Assembly

$

$

Currently unavailable

34

Murray 1101085MA

Bag, Cloth - Gray
(Superseded to 1101035MA)

$

$

Not available
