22856x50C - Murray 22" Walk-Behind Mower (2000) Handle Assembly Parts Diagram

22" Walk-Behind Mower

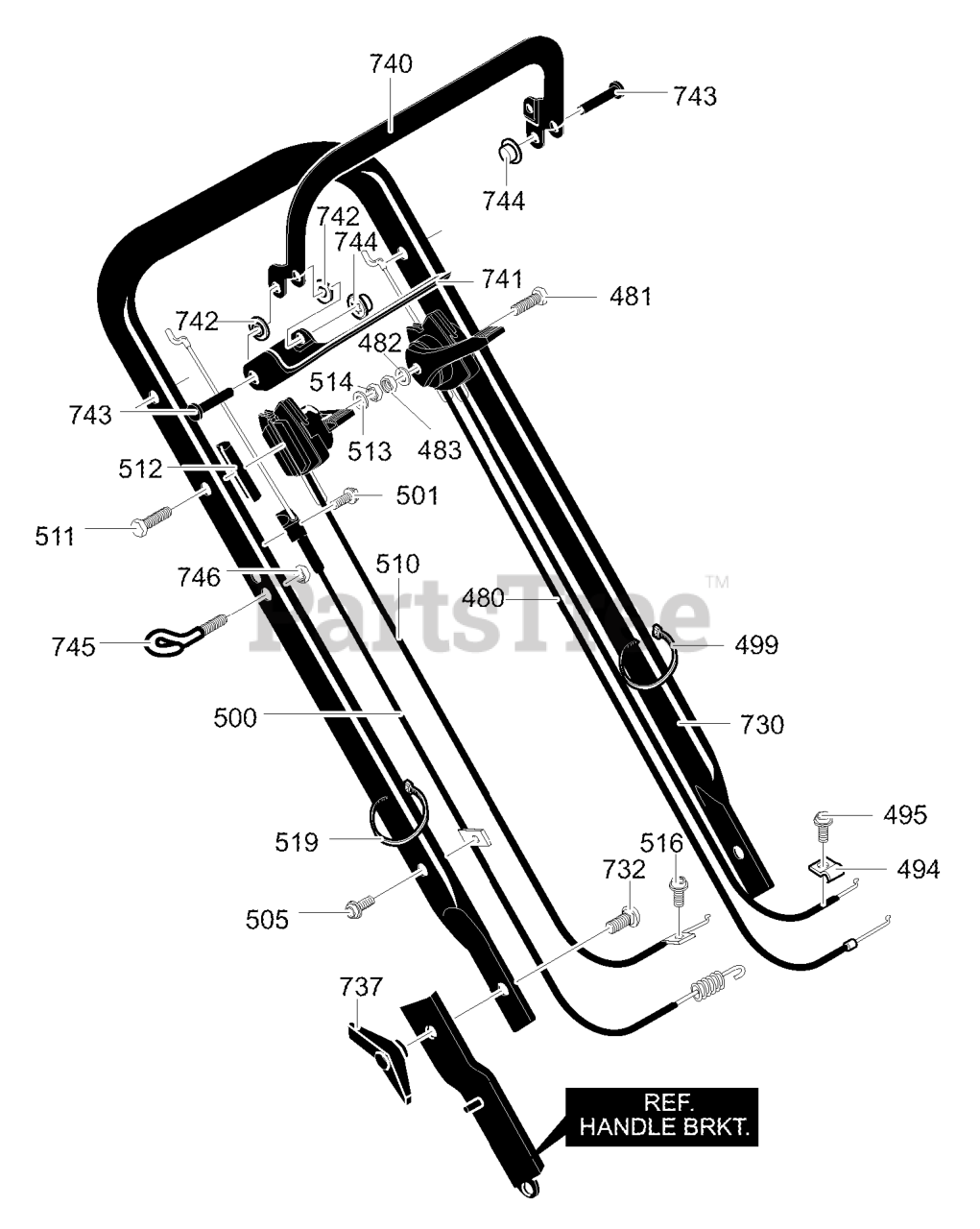

Handle Assembly Parts Diagram

  • Title

480

Murray 671594MA

Cable, Restart & Throttle

$61.99

$

Usually ships in 2-12 days

0

481

Murray 710166

Screw, 1/4-20x2.50

$80.99

$

Usually ships in 2-12 days

0

482

Murray 120385

Flatwasher

$1.99

$

Usually ships in 2-12 days

0

483

Murray 710203

Nut, 1/4-20

$19.99

$

Usually ships in 2-12 days

0

494

Murray 12425

Clamp, Throttle
(Superseded to 7012425YP)

$21.99

$

In Stock, Qty 14

0

495

Murray 710275

Screw, 10-32x.62
(Superseded to 66574)

$7.49

$

Usually ships in 2-12 days

0

499

Murray 57444

Cable Tie

$

$

Not available

500

Murray 671593MA

Cable, Drive Assy.

$49.99

$

Usually ships in 2-12 days

0

501

Murray 710272

Screw, #10-16x1.25

$11.99

$

Usually ships in 2-12 days

0

505

Murray 710273

Screw, 10-16x.50

$

$

Currently unavailable

510

Murray 671595MA

Cable, Shifter Speed

$43.99

$

Usually ships in 2-12 days

0

511

Murray 710165

Screw, 1/4-20x3.00
(Superseded to 711671)

$37.99

$

Usually ships in 2-12 days

0

512

Murray 671635

Spacer, T-Control

$

$

Currently unavailable

513

Murray 120385

Flatwasher

$1.99

$

Usually ships in 2-12 days

0

514

Murray 710203

Nut, 1/4-20

$19.99

$

Usually ships in 2-12 days

0

516

Murray 710275

Screw, 10-32x.62
(Superseded to 66574)

$7.49

$

Usually ships in 2-12 days

0

519

Murray 712267

Cable Tie

$3.99

$

Usually ships in 2-12 days

0

730

Murray 671713-806

Handle

$

$

Currently unavailable

732

Murray 710176

Bolt, 5/16-18x1.5 Carr.

$

$

Currently unavailable

737

Murray 671495

Knob, Wing

$

$

Currently unavailable

740

Murray 671567

Lever, Stop

$31.99

$

Usually ships in 2-12 days

0

741

Murray 671566MA

Lever, Drive Control

$19.99

$

Usually ships in 2-12 days

0

742

Murray 339065MA

Washer, Nylon

$3.99

$

Usually ships in 2-12 days

0

743

Murray 710289

Pin, Clevis
(Superseded to 231764)

$10.99

$

Usually ships in 2-12 days

0

744

Murray 710285

Cap, Push On
(Superseded to 231739)

$17.99

$

In Stock, only 2 left!

0

745

Murray 643956

Rope Guide

$1.49

$

Usually ships in 2-12 days

0

746

Murray 710203

Nut, 1/4-20

$19.99

$

Usually ships in 2-12 days

0
