22856x50C - Murray 22" Walk-Behind Mower (2000) Height Adjust & Discharge Parts Diagram

22" Walk-Behind Mower

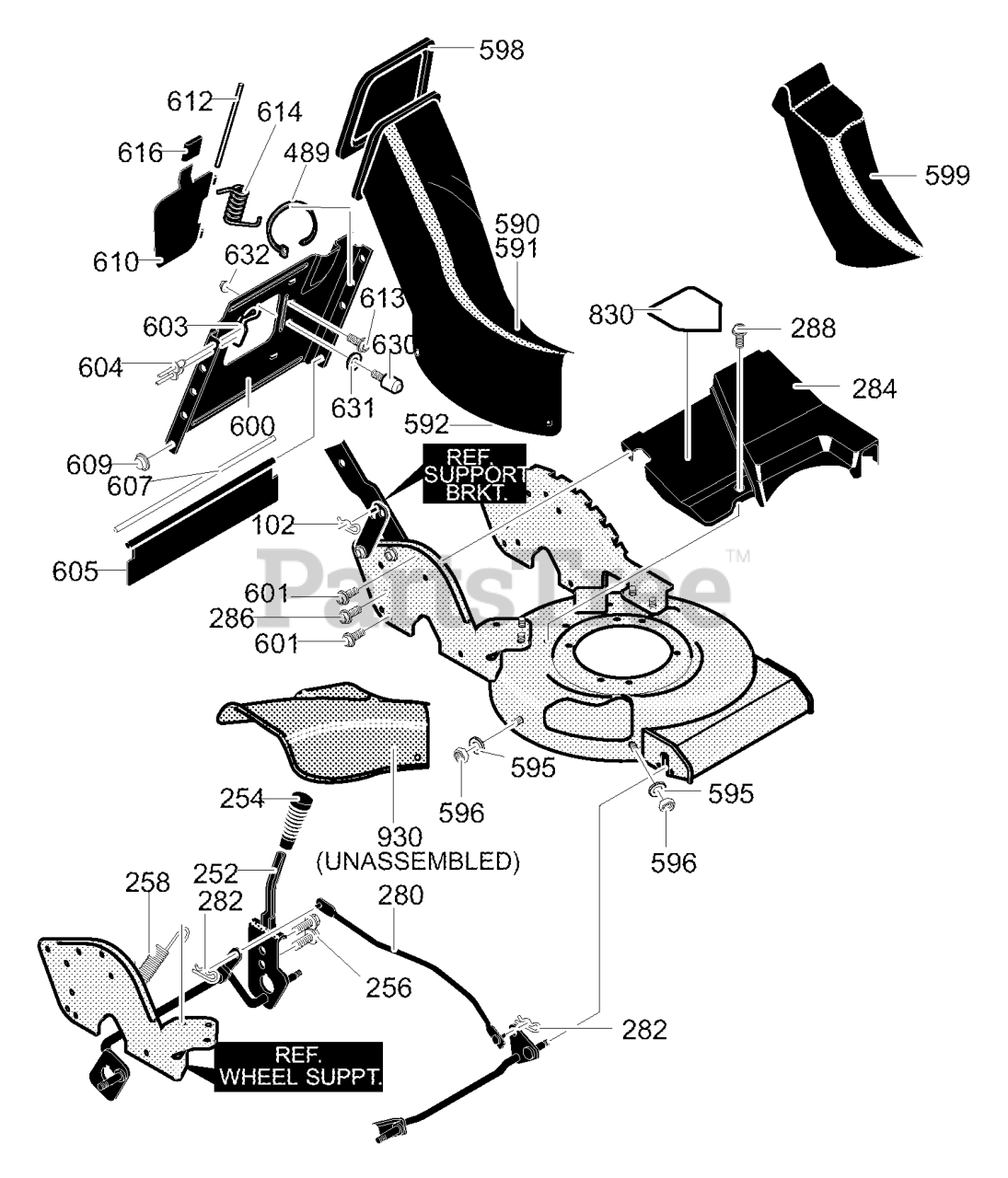

Height Adjust & Discharge Parts Diagram

  • Title

102

Murray 710291

Hair Pin

$

$

Currently unavailable

252

Murray 672278MA

Spring, Lever Hgt/Adj

$12.99

$

Usually ships in 2-12 days

0

254

Murray 671297MA

Knob, Hgt/Adj

$6.49

$

In Stock, only 1 left!

0

256

Murray 710274

Screw, 1/4-20x.63

$61.99

$

Usually ships in 2-12 days

0

258

Murray 710337

Tension Spring

$1.99

$

Usually ships in 2-12 days

0

280

Murray 671328-860

Lifter, Assy Link

$

$

Currently unavailable

282

Murray 710292

Hair Pin

$

$

Currently unavailable

284

Murray 671836

Rear Cover

$

$

Currently unavailable

286

Murray 710180

Screw, 1/4-20x.63

$11.99

$

Usually ships in 2-12 days

0

288

Murray 710269

Screw, 10-16x.75

$

$

Not available

489

Murray 57444

Cable Tie

$

$

Not available

590

Murray 671837

Chute RR Discharge

$

$

Currently unavailable

591

Murray 672230

Chute, Floor Rear

$12.99

$

Usually ships in 2-12 days

0

592

Murray 710260

Rivet, Pop

$

$

Not available

595

Murray 710142

Flatwasher

$3.99

$

Usually ships in 2-12 days

0

596

Murray 710205

Nut, 5/16-18

$14.99

$

Usually ships in 2-12 days

0

598

Murray 071906

Gasket, Compression

$

$

Not available

599

Murray 671373

Plug, Mulcher

$

$

Currently unavailable

600

Murray 671298-806

Plate, Bag

$

$

Currently unavailable

601

Murray 710276

Screw, 5/16-18 x 0.62

$22.99

$

Usually ships in 2-12 days

0

603

Murray 671443MA

Rope Guide

$5.99

$

Usually ships in 2-12 days

0

604

Murray 710259

Rivet, Pop

$25.99

$

Usually ships in 2-12 days

0

605

Murray 671289MA

Guard, Rear Toe

$30.99

$

Usually ships in 2-12 days

0

607

Murray 671319

Rod, Rear Guard

$

$

Currently unavailable

609

Murray 710285

Cap, Push On
(Superseded to 231739)

$17.99

$

In Stock, only 2 left!

0

610

Murray 671299-806

Door, Rear

$

$

Currently unavailable

612

Murray 671300

Pin, Hinge Door

$

$

Currently unavailable

613

Murray 710267

Screw, #8-32x.38

$15.99

$

Usually ships in 2-12 days

0

614

Murray 335572

Spring, Torsion

$

$

Currently unavailable

616

Murray 671306

Grip, Door

$

$

Currently unavailable

630

Murray 53446

Pin, 5/16-18

$2.49

$

Usually ships in 2-12 days

0

631

Murray 120393

Flatwasher

$

$

Not available

632

Murray 120376

Nut, 5/16-18

$

$

Not available

830

Murray 44X5430MA

Decal, Cut Finger

$9.99

$

Usually ships in 2-12 days

0

930

Murray 671839MA

Chute, Side Discharge

$22.99

$

Usually ships in 2-12 days

0

--

Murray F-000436M

Instruction Book

$

$

Currently unavailable
