22859x7A - Scotts 22" Walk-Behind Mower (1996) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

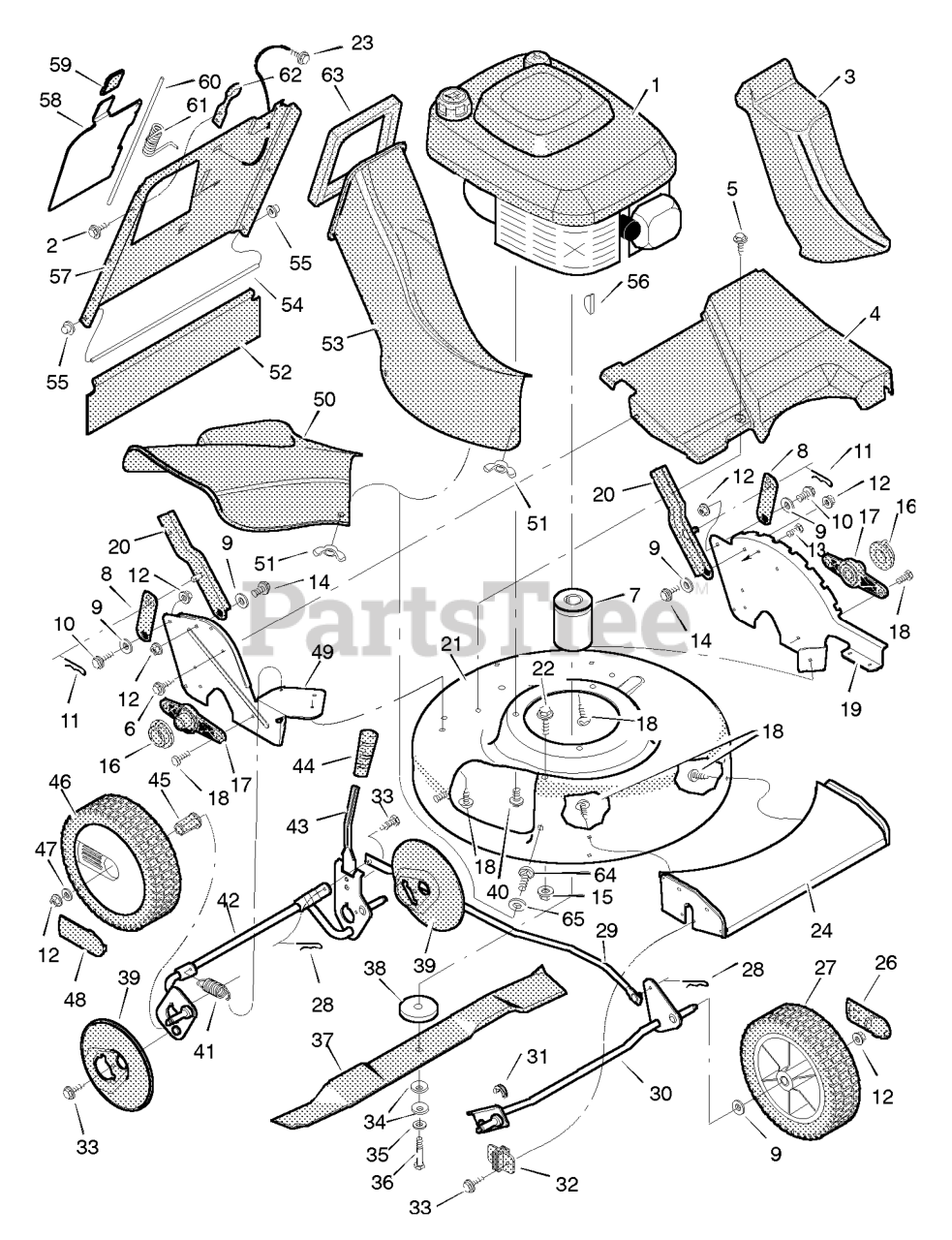

Mower Housing Assembly Parts Diagram

  • Title
1

Engine *

$

$

Not available

2

Murray 0025X2MA

Screw
(Superseded to 704130)

$3.99

$

In Stock, Qty 20+

0

3

Murray 071373MA

Plug, Mulcher

$98.99

$

Usually ships in 2-12 days

0

4

Murray 071547

Cover, Rear

$

$

Currently unavailable

5

$3.49

$

Usually ships in 2-12 days

0

6

$3.99

$

In Stock, only 2 left!

0

7

Murray 071285

Adapter, Blade

$

$

Not available

8

Murray 71318E701

Strap, Adjuster

$

$

Currently unavailable

9

Murray 0020X3MA

Washer, Spring

$4.49

$

In Stock, only 2 left!

0

10

Murray 009X49MA

Bolt, Shoulder

$5.49

$

In Stock, only 1 left!

0

11

Murray 031X10MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

12

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 19

0

13

$3.99

$

Usually ships in 2-12 days

0

14

Murray 009X49MA

Bolt, Shoulder

$5.49

$

In Stock, only 1 left!

0

15

Murray 015X68MA

Locknut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

16

Murray 043788MA

Bearing, Lifter

$4.99

$

In Stock, only 2 left!

0

17

Murray 071411MA

Support, Axle

$9.49

$

Usually ships in 2-12 days

0

18

$5.49

$

Usually ships in 2-12 days

0

19

Murray 71368E245

Index (Red)

$

$

Currently unavailable

--

Murray 71368E601

Index (Silver)

$

$

Currently unavailable

--

Murray 71368E540

Index (Green)

$

$

Currently unavailable

20

Murray 71317E701

Bracket, Handle

$

$

Currently unavailable

21

Murray 71801 E245

Housing (Red)

$

$

Currently unavailable

--

Murray 71801E601

Housing (Silver)

$

$

Currently unavailable

--

Murray 071801E540

Housing (Green)

$

$

Currently unavailable

22

Murray 009X17MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

23

$3.99

$

Usually ships in 2-12 days

0

24

Murray 071329SE245

Panel, Front (Red)

$

$

Currently unavailable

--

Murray 71329SE601

Panel, Front (Silver)

$

$

Currently unavailable

--

Murray 071329SE540

Panel, Front (Green)

$

$

Currently unavailable

26

Murray 043847MA

Cap- Ball Bearing (Gray)

$4.49

$

Usually ships in 2-12 days

0

--

Murray 071136

Cap- Ball Bearing (Red)

$

$

Currently unavailable

27

Murray 043724MA

WHEEL & TIRE ASSEMBLY, White, 8"
(Superseded to 071134MA)

$34.99

$

Usually ships in 2-12 days

0

--

Murray 071134MA

Wheel (Grey)

$34.99

$

Usually ships in 2-12 days

0

28

Murray 0031X9MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

29

Murray 071328

Link, Lifter

$

$

Not available

30

Murray 71325E701

Crossbar Assembly, Front

$

$

Currently unavailable

31

Murray 071291MA

Bushing

$2.99

$

Usually ships in 2-12 days

0

32

Murray 071292

Clip, Front Axle

$

$

Currently unavailable

33

$4.99

$

In Stock, only 1 left!

0

34

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

35

$4.49

$

Usually ships in 2-12 days

0

36

Murray 01X148MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

37

$

$

Currently unavailable

38

Murray 071470MA

Spacer, Adapter

$

$

Not available

39

Murray 043616

Cover, Dust

$

$

Currently unavailable

40

Murray 0025X7MA

Bolt, Engine
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

41

Murray 165X97

Spring, Extension

$

$

Currently unavailable

42

Murray 671315E701MA

Crossbar Assembly, Rear

$193.99

$

Usually ships in 2-12 days

0

43

Murray 71293E701

Lever, Height Adjuster

$

$

Currently unavailable

44

Murray 071297MA

Grip, Height Adjuster

$6.49

$

In Stock, only 1 left!

0

45

Murray 043886MA

Bushing

$3.99

$

Usually ships in 2-12 days

0

46

Murray 043617

Wheel, Rear (White)

$

$

Currently unavailable

--

Murray 071133MA

Wheel, Rear (Gray)

$50.99

$

In Stock, only 2 left!

0

47

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

48

Murray 043615MA

Hub Cap (Gray)

$4.49

$

Usually ships in 2-12 days

0

--

Murray 071135

Hub Cap (Red)

$

$

Currently unavailable

49

Murray 71370E245

Support, Wheel (Red)

$

$

Currently unavailable

--

Murray 71370E601

Support, Wheel (Silver)

$

$

Currently unavailable

--

Murray 71370E540

Support, Wheel (Green)

$

$

Currently unavailable

50

Murray 071295MA

Deflector, Chute

$30.99

$

Usually ships in 2-12 days

0

51

Murray 1486

Nut, Wing

$

$

Currently unavailable

52

Murray 071289

Guard, Rear

$

$

Currently unavailable

53

Murray 071381

Deflector, Rear

$

$

Currently unavailable

$

$

Currently unavailable

55

Murray 028X42MA

Cap, Push On

$3.99

$

Usually ships in 2-12 days

0

56

Murray 020062MA

Key, Woodruff #6
(Superseded to 692193)

$3.99

$

Usually ships in 2-12 days

0

57

Murray 71298E701

Plate, Bagger

$

$

Currently unavailable

58

Murray 71299E701

Door, Rear

$

$

Currently unavailable

59

Murray 071306

Grip, Door

$

$

Not available

60

Murray 713002

Rod, Door
(Superseded to 1928721SM)

$4.99

$

In Stock, Qty 8

0

61

Murray 166X36MA

Spring, Torsion

$13.99

$

Usually ships in 2-12 days

0

62

Murray 071443

Guide, Rope

$

$

Currently unavailable

63

$

$

Currently unavailable

64

Murray 002X53MA

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

65

Murray 028X64MA

Retainer
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0
