228650x6A - Murray Ultra 22" Walk-Behind Mower (2001) Handle Assembly Parts Diagram

Ultra 22" Walk-Behind Mower

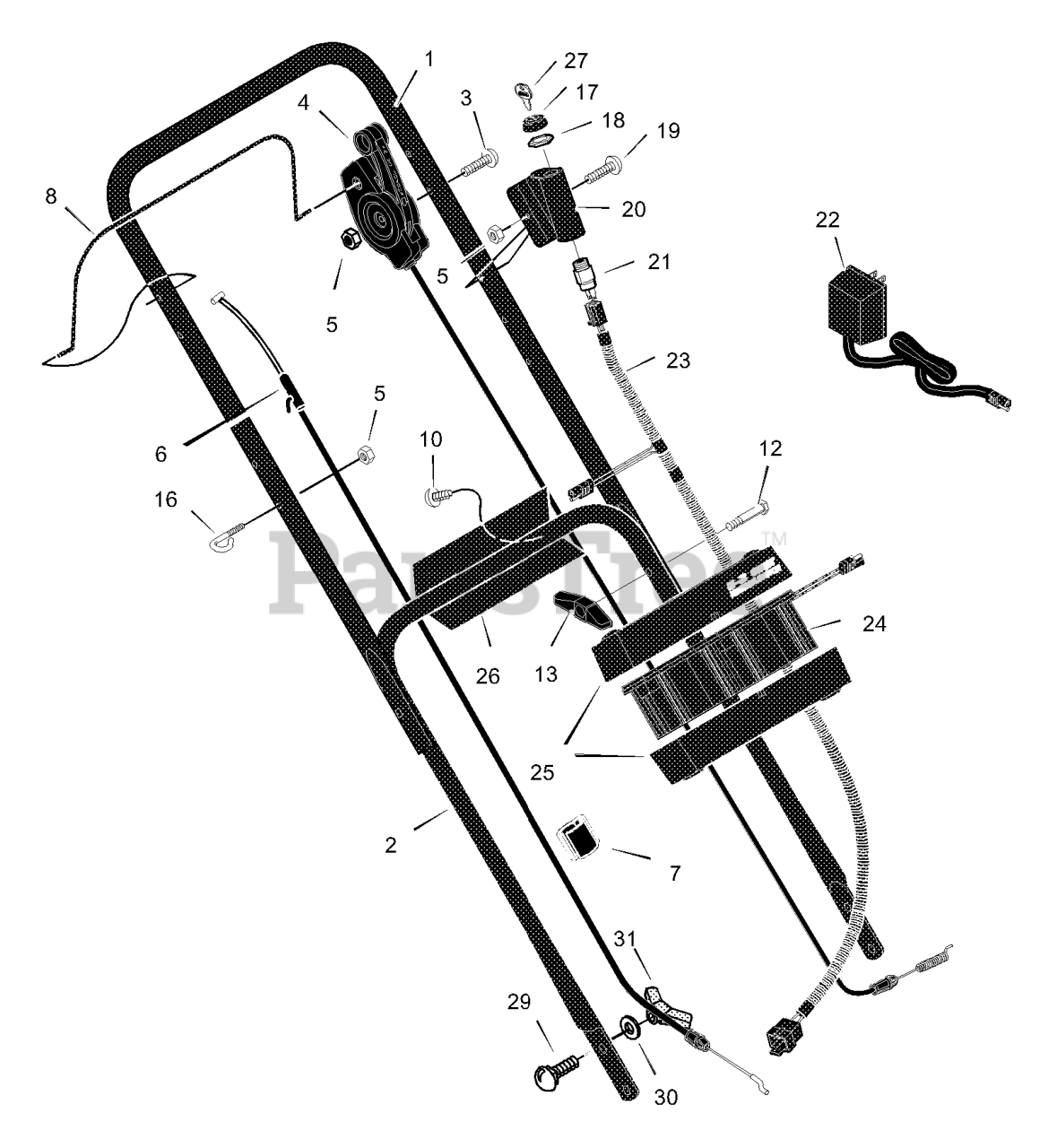

Handle Assembly Parts Diagram

  • Title

1

Murray 1101099-846

Handle, Upper

$8.99

$

Usually ships in 2-12 days

0

2

Murray 672907-846

Handle, Lower

$

$

Currently unavailable

3

Murray 025X14MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

4

Murray 1101344MA

Control, Drive

$72.99

$

Usually ships in 2-12 days

0

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 1101365MA

Cable, Stop

$29.99

$

In Stock, Qty 5

0

7

Murray 1101353MA

Fastener, Double Cable

$6.49

$

In Stock, only 1 left!

0

8

Murray 1101076-850

Lever, Stop

$

$

Currently unavailable

10

Murray 26X220MA

Screw

$

$

Not available

12

Murray 002X77MA

Bolt

$3.99

$

In Stock, Qty 11

0

13

Murray 071294

Knob
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

16

Murray 071530MA

Guide, Rope

$6.49

$

Usually ships in 2-12 days

0

17

Murray 091488

Cap
(Superseded to 091488MA)

$5.49

$

Usually ships in 2-12 days

0

18

Murray 091489MA

Nut
(Superseded to 847144)

$10.99

$

Usually ships in 2-12 days

0

19

Murray 025X16MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

20

Murray 671916MA

Cover, Ignition

$

$

Not available

21

Murray 776011MA

Switch Ignition & Key

$

$

Not available

22

Murray 671992MA

Charger, Battery

$57.99

$

Usually ships in 2-12 days

0

23

Murray 776012

Harness, Wiring

$

$

Currently unavailable

24

Murray 776014MA

Battery

$

$

Not available

25

Murray 776013

Case, Battery

$

$

Currently unavailable

26

Murray 671959-853

Bracket, Battery

$

$

Currently unavailable

27

Murray 672220

Key, Ignition

$

$

Not available

29

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

30

Murray 17X168ZMA

Washer

$6.49

$

Usually ships in 2-12 days

0

31

Murray 071495MA

Knob, Plastic

$4.99

$

In Stock, only 2 left!

0
