229610x83A - Briggs & Stratton 22" Walk-Behind Mower (2004) Handle & Bag Assembly Parts Diagram

22" Walk-Behind Mower

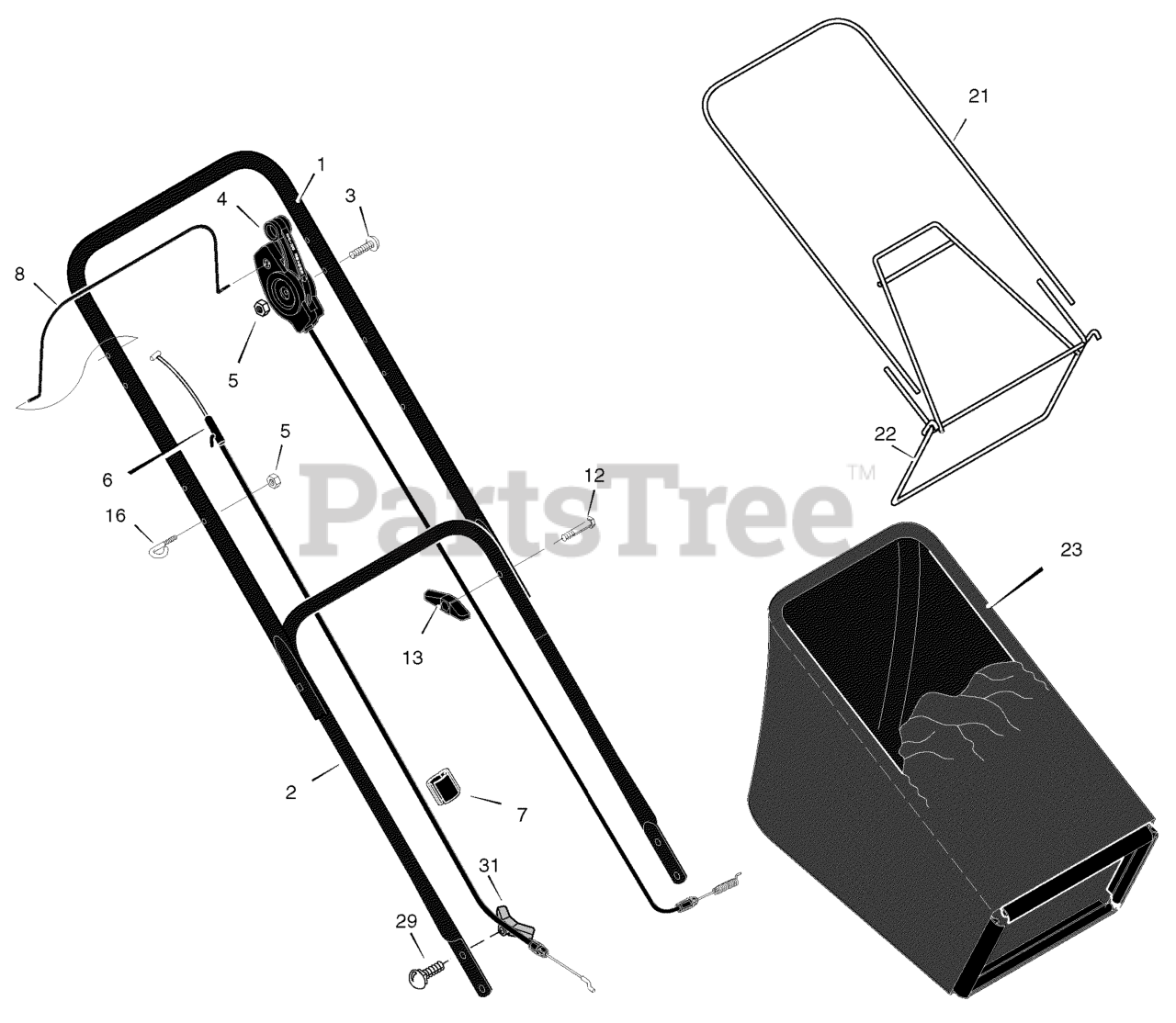

Handle & Bag Assembly Parts Diagram

  • Title

1

Murray 1101557E701

Handle, Upper (Black)

$106.99

$

Usually ships in 2-12 days

0

1

Murray 1101557E724

Handle, Upper (Gray)

$106.99

$

Usually ships in 2-12 days

0

2

Murray 672906E701

Handle, Lower (Black)

$142.99

$

Usually ships in 2-12 days

0

2

Murray 672906E724

Handle, Lower (Gray)

$

$

Not available

4

Murray 1101670

Control, Drive

$54.99

$

In Stock, only 1 left!

0

5

Murray 15X116

Locknut

$4.49

$

In Stock, Qty 20+

0

6

Murray 1101365

Cable, Stop

$27.99

$

In Stock, Qty 9

0

7

Murray 1101353

Fastener, Cable

$5.99

$

In Stock, only 1 left!

0

8

Murray 1101076E701

Lever, Stop

$

$

Not available

12

Murray 002X77

Bolt

$3.99

$

In Stock, Qty 5

0

13

Murray 71294

Knob

$7.99

$

In Stock, only 2 left!

0

16

Murray 71530

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0

21

Murray 1101075

Frame, Top

$

$

Not available

22

Murray 1101074

Frame Assembly

$71.99

$

In Stock, only 1 left!

0

23

Murray 1102019

Bag, Cloth

$189.99

$

In Stock, only 1 left!

0

29

Murray 002X81

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

31

Murray 71495

Knob, Plastic

$

$

Not available

3

Murray 025X14MA

Bolt

$3.99

$

Usually ships in 2-12 days

0
