22971 G (TRX-19) - Toro Trencher (SN: 310000001 - 310999999) (2010) OIL COOLER ASSEMBLY Parts Diagram

Trencher

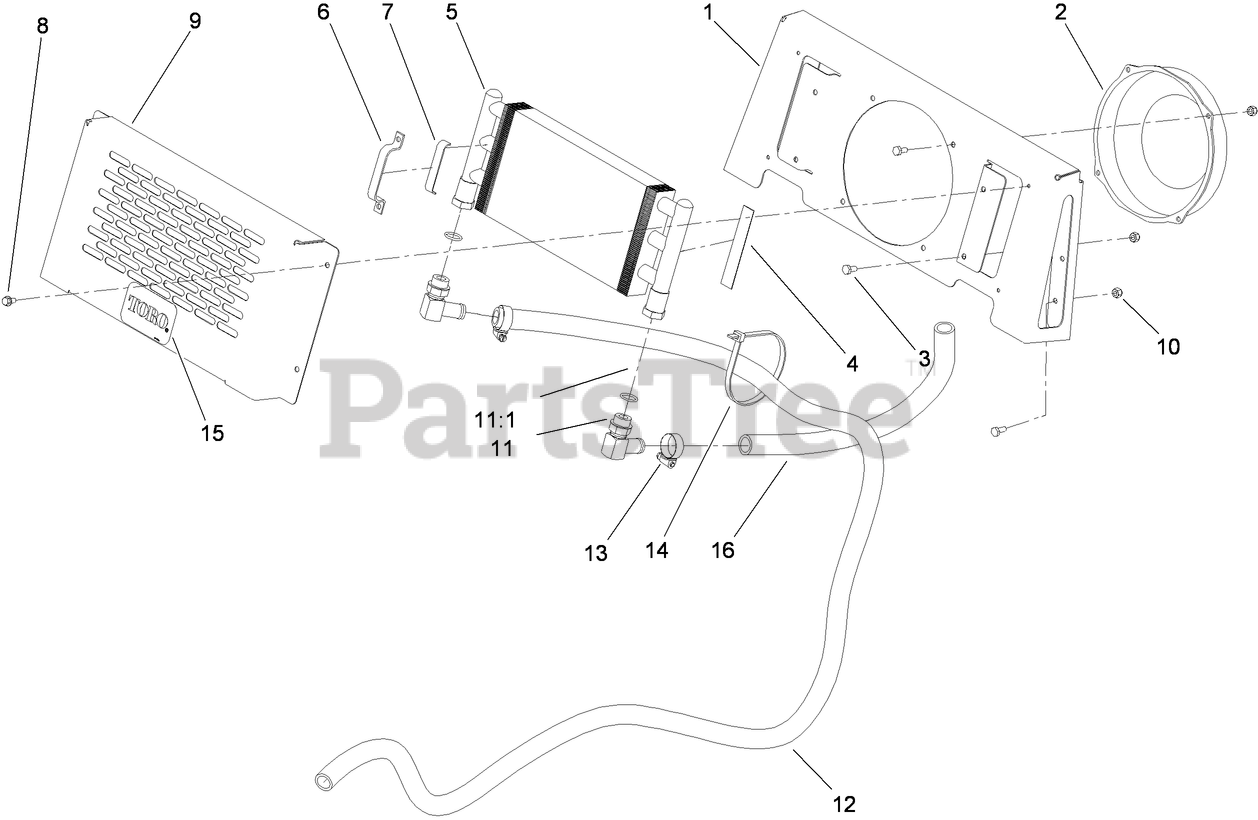

OIL COOLER ASSEMBLY Parts Diagram

  • Title

1

Toro 114-8588-03

BRACKET-FAN

$

$

Not available

2

Toro 104-2809

FAN

$541.99

$

Usually ships in 3-6 days

0

3

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 94-9566

PAD-FOOTREST

$6.49

$

Usually ships in 3-6 days

0

5

Toro 105-0352

EXCHANGER-HEAT

$1030.99

$

Usually ships in 3-6 days

0

6

Toro 104-2803

SUPPORT-COOLER

$58.99

$

Usually ships in 3-6 days

0

7

Toro 104-2816

PAD-SUPPORT

$28.99

$

Usually ships in 3-6 days

0

8

Toro 32104-116

SCREW-THD FRM,HWH

$0.99

$

Usually ships in 3-6 days

0

9

Toro 114-8591-03

BRACKET-COVER, COOLER

$

$

Not available

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 87-8170

FITTING

$51.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 16

0

12

Toro 115-1207

HOSE-RETURN

$196.99

$

Usually ships in 3-6 days

0

13

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

14

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

15

Toro 99-2385

DECAL

$5.49

$

In Stock, Qty 11

0

16

Toro 117-3966

HOSE-COOLER

$34.99

$

Usually ships in 3-6 days

0
