22971 (TRX-19) - Toro Trencher (SN: 280000201 - 280999999) (2008) ELECTRICAL ASSEMBLY Parts Diagram

Trencher

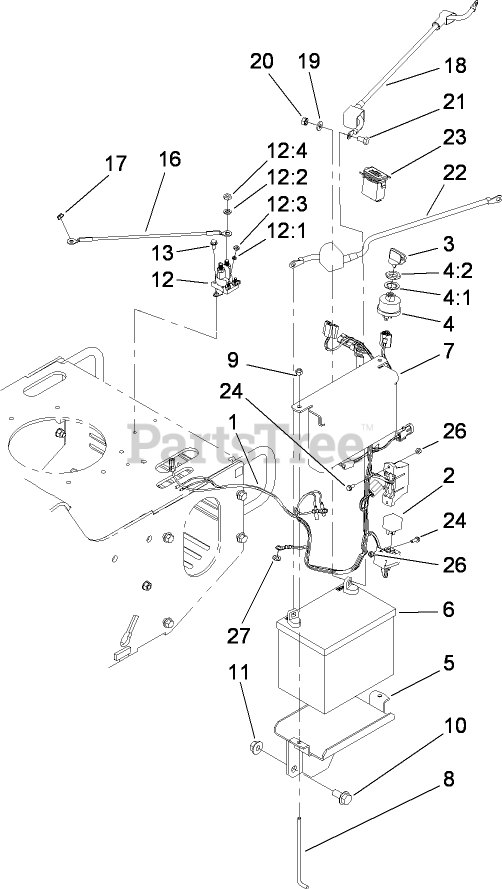

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 114-3084

HARNESS-WIRE

$

$

Not available

2

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 12

0

3

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

4

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$37.99

$

In Stock, Qty 20+

0

4:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 12

0

4:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 17

0

5

Toro 105-3150-01

TRAY-BATTERY

$116.99

$

Usually ships in 3-6 days

0

6

Toro 104-8162

BATTERY-DRY

$

$

Not available

7

Toro 115-6621-03

PLATE-HOLD DOWN, BATTERY

$74.99

$

Usually ships in 3-6 days

0

8

Toro 104-8567

HOLDOWN-BATTERY

$27.99

$

Usually ships in 3-6 days

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 3234-6

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

11

Toro 32128-49

NUT-HHF

$1.99

$

In Stock, Qty 20+

0

12

Toro 1-513075

SWITCH-SOLENOID
(Superseded to 117-1197)

$45.99

$

In Stock, Qty 20+

0

12:1

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 14

0

12:2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12:3

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

12:4

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

13

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

16

Toro 28-3891

WIRE-SOLENOID/STARTER

$27.99

$

Usually ships in 3-6 days

0

17

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

18

Toro 112-9708

CABLE-BATTERY, RED

$45.99

$

Usually ships in 3-6 days

0

19

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

21

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

22

Toro 115-4024

CABLE-BATTERY, BLACK

$

$

Not available

23

Toro 1-513374

METER-HOUR
(Superseded to 120-2244)

$67.99

$

In Stock, Qty 7

0

24

Toro 32105-2

SCREW-SHWH

$3.99

$

Usually ships in 3-6 days

0

26

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 7

0
