22972 G (TRX-16) - Toro Trencher (SN: 315000001 - 315999999) (2015) CONTROL TOWER ASSEMBLY Parts Diagram

Trencher

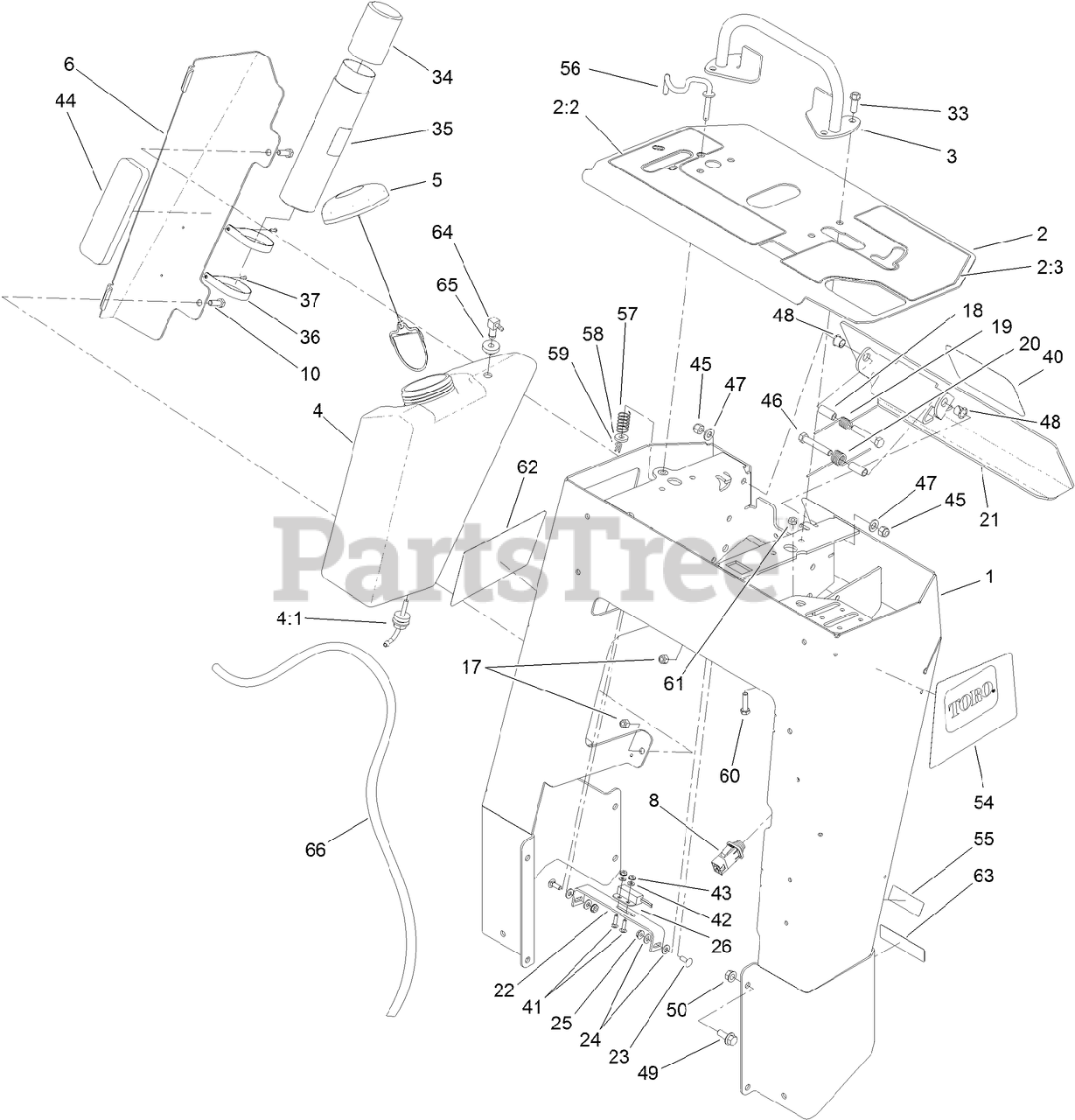

CONTROL TOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 117-6419-01

TOWER

$2001.99

$

Usually ships in 3-6 days

0

2

Toro 117-6389

PANEL-CONTROL

$333.99

$

Usually ships in 3-6 days

0

2:2

Toro 115-1231

DECAL-CONSOLE, RH

$81.99

$

Usually ships in 3-6 days

0

2:3

Toro 115-1230

DECAL-CONSOLE, LH

$80.99

$

Usually ships in 3-6 days

0

3

Toro 106-7715

BAR-REFERENCE

$226.99

$

Usually ships in 3-6 days

0

4

Toro 120-7357

TANK-FUEL

$359.99

$

Usually ships in 3-6 days

0

4:1

Toro 103-2605

FITTING-FUEL, BULKHEAD

$39.99

$

In Stock, only 3 left!

0

5

Toro 120-5461

CAP-FUEL, RATCHETING
(Superseded to 137-4119)

$29.99

$

In Stock, Qty 5

0

6

Toro 114-3065-01

BRACKET-COVER, TANK

$121.99

$

Usually ships in 3-6 days

0

8

Toro 100-1268

SWITCH-PLUNGER

$65.99

$

Usually ships in 3-6 days

0

10

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 114-1337

SPACER-SPRING

$7.99

$

Usually ships in 3-6 days

0

19

Toro 98-8425

SPRING-TORSION, LH

$28.99

$

Usually ships in 3-6 days

0

20

Toro 98-8424

SPRING-TORSION, RH

$28.99

$

Usually ships in 3-6 days

0

21

Toro 114-3012-03

PLATE-REVERSE

$160.99

$

Usually ships in 3-6 days

0

22

Toro 100-1263

PLATE-SWITCH

$37.99

$

Usually ships in 3-6 days

0

23

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 19

0

25

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

26

Toro 100-1270

SWITCH-PROXIMITY

$124.99

$

In Stock, only 1 left!

0

33

Toro 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

34

Toro 104-7048

CAP-HOUSING

$6.49

$

In Stock, only 1 left!

0

35

Toro 104-7050

TUBE-MANUAL

$9.99

$

Usually ships in 3-6 days

0

36

Toro 2412-120

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

37

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

40

Toro 105-1217

DECAL

$43.99

$

In Stock, Qty 6

0

41

Toro 3229-20

SCREW-CARR

$1.99

$

Usually ships in 3-6 days

0

42

Toro 3256-51

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

43

Toro 32149-7

NUT-KEPS

$0.99

$

In Stock, Qty 20+

0

44

Toro 107-7507

PAD-FOAM

$8.49

$

Usually ships in 3-6 days

0

45

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

46

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

47

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

48

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 20+

0

49

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 14

0

50

Toro 32128-40

NUT-FLANGE

$7.99

$

Usually ships in 3-6 days

0

54

Toro 117-6281

DECAL-SIDE, LH

$43.99

$

Usually ships in 3-6 days

0

55

Toro 120-7531

DECAL-INFO

$

$

Not available

56

Toro 114-8727

ROD-INTERLOCK

$78.99

$

Usually ships in 3-6 days

0

57

Toro 85-6750

SPRING-CONTROL

$11.99

$

Usually ships in 3-6 days

0

58

Toro 88-7200

WASHER-FLAT

$3.49

$

Usually ships in 3-6 days

0

59

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

60

Toro 3210-7

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

61

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

62

Toro 117-6270

DECAL-SIDE, RH

$27.99

$

Usually ships in 3-6 days

0

63

Toro 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 2 left!

0

64

Toro 104-5228

FITTING-ELBOW, 90 DEG

$20.99

$

In Stock, only 2 left!

0

65

Toro 46-6560

BUSHING

$6.49

$

In Stock, Qty 20+

0

66

Toro 117-6396

HOSE-VENT, TANK

$13.99

$

Usually ships in 3-6 days

0
