22977 - Toro 4ft Trencher Boom and Bar for Dingo and Dingo TX BOOM ASSEMBLY Parts Diagram

4ft Trencher Boom and Bar for Dingo and Dingo TX

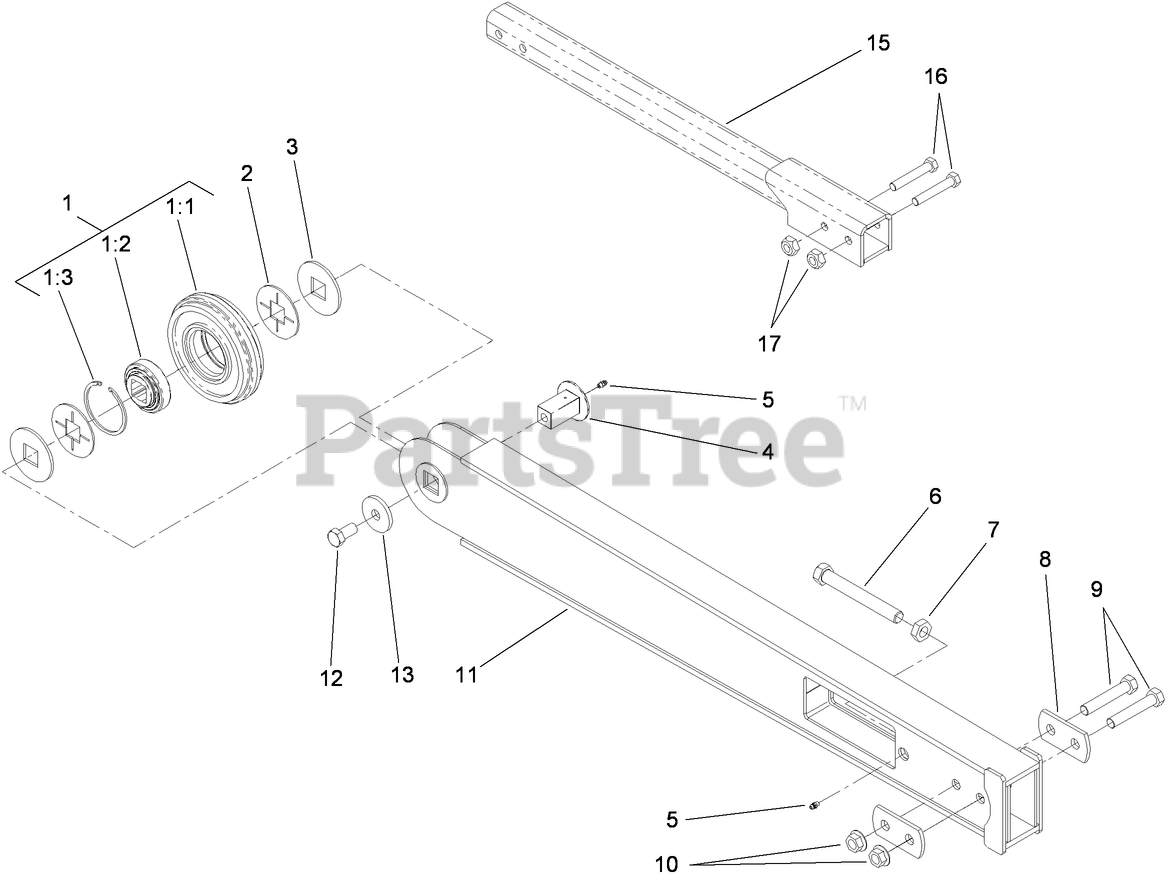

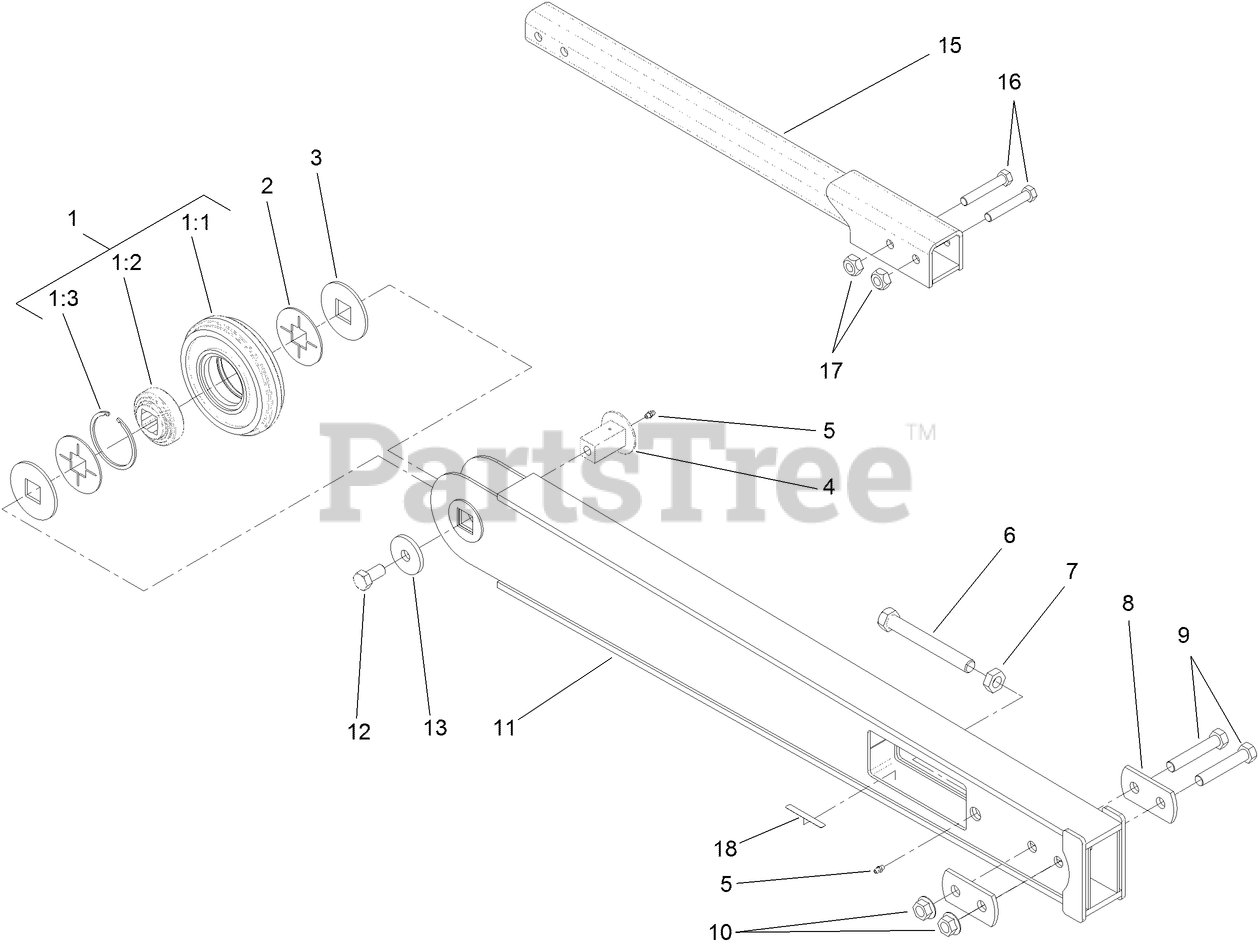

BOOM ASSEMBLY Parts Diagram

  • Title

1

Toro 107-9325

TRENCHER ROLLER ASM

$555.99

$

Usually ships in 3-6 days

0

1:1

Toro 104-1951

ROLLER-NOSE

$298.99

$

Usually ships in 3-6 days

0

1:2

Toro 104-1995

BEARING

$313.99

$

In Stock, only 1 left!

0

1:3

Toro 104-1945

RING-RETAINING

$21.99

$

In Stock, only 2 left!

0

2

Toro 104-1943

SPACER-ROLLER

$74.99

$

Usually ships in 3-6 days

0

3

Toro 104-1942

CAP-ROLLER

$58.99

$

Usually ships in 3-6 days

0

4

Toro 108-5549

AXLE-ROLLER

$108.99

$

Usually ships in 3-6 days

0

5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

6

Toro 104-1941

BOLT-ADJUSTMENT

$82.99

$

Usually ships in 3-6 days

0

7

Toro 104-1944

NUT-JAM

$13.99

$

In Stock, only 1 left!

0

8

Toro 104-1983-03

PLATE-SUPPORT

$46.99

$

Usually ships in 3-6 days

0

9

Toro 327-14

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

10

Toro 32128-50

NUT-FLANGE

$5.49

$

In Stock, Qty 5

0

11

Toro 115-1247-03

48 INCH BOOM ASM

$1990.99

$

Usually ships in 3-6 days

0

12

Toro 327-3

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

13

Toro 104-5901

WASHER

$19.99

$

Usually ships in 3-6 days

0

15

Toro 115-3899-03

SAFTEY BAR EXTENSION ASM

$

$

Not available

16

Toro 325-12

SCREW-HH

$6.49

$

In Stock, Qty 7

0

17

Toro 32146-13

NUT-HEX

$4.49

$

In Stock, only 4 left!

0
