22983 G (TRX-250) - Toro Trencher (SN: 417000000 - 999999999) Trencher Head and Lift Assembly Parts Diagram

Trencher

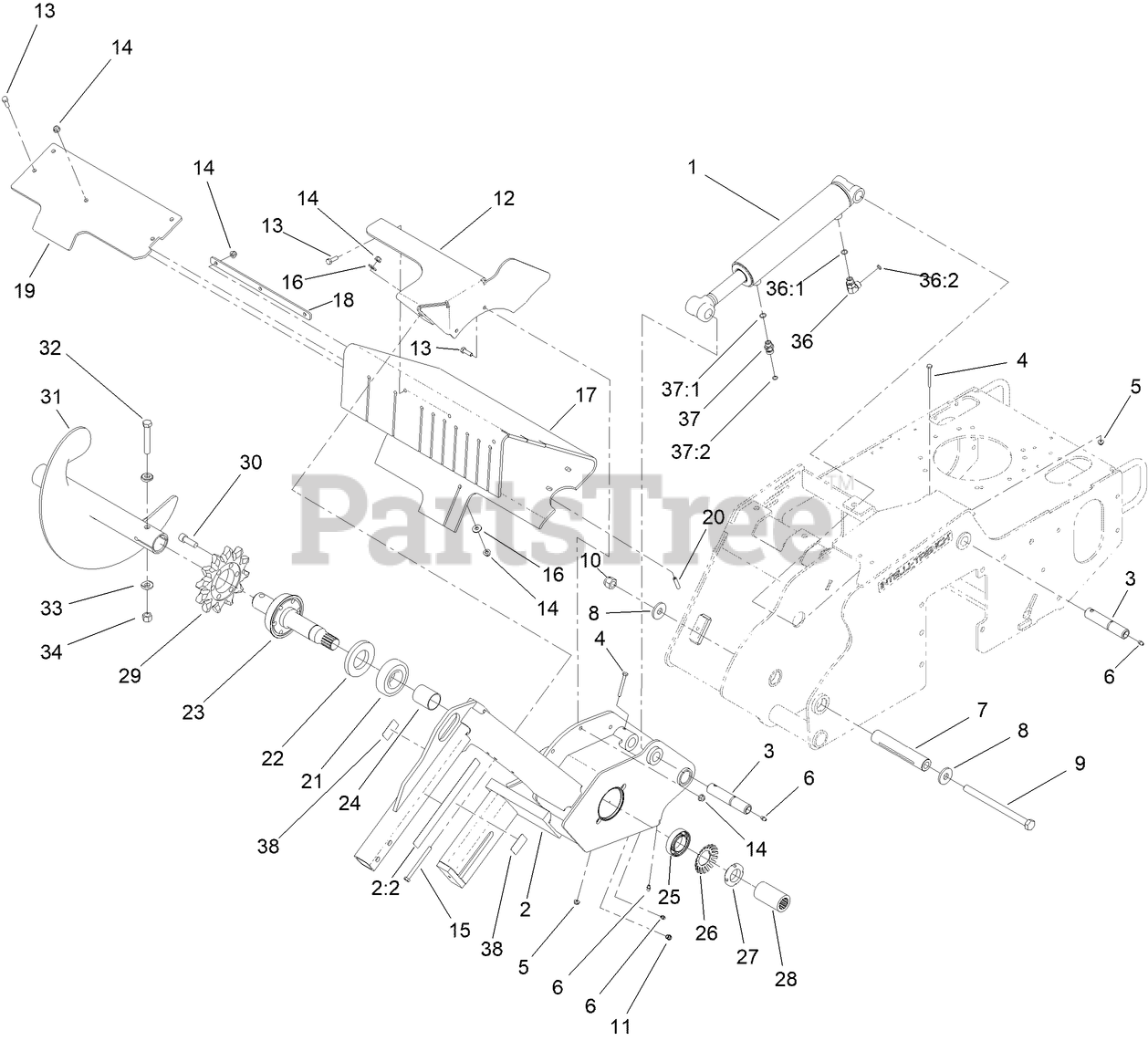

Trencher Head and Lift Assembly Parts Diagram

  • Title

1

Toro 137-3827

HYDRAULIC CYLINDER ASM

$800.99

$

Usually ships in 3-6 days

0

2

Toro 117-6423

TRENCHER HEAD ASM

$2969.99

$

Usually ships in 3-6 days

0

2:2

Toro 99-9952

DECAL-DANGER

$25.99

$

Usually ships in 3-6 days

0

3

Toro 120-7352

PIN-PIVOT

$91.99

$

Usually ships in 3-6 days

0

4

Toro 321-18

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7

Toro 121-4571

SPACER-PIVOT

$273.99

$

Usually ships in 3-6 days

0

8

Toro 104-9216

WASHER-HARDENED

$7.49

$

In Stock, only 2 left!

0

9

Toro 117-6327

BOLT-HH

$50.99

$

In Stock, only 1 left!

0

10

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 13

0

11

Toro 302-34

FITTING-LUBE

$12.99

$

Usually ships in 3-6 days

0

12

Toro 115-1279-05

BRACKET-SHIELD

$

$

Currently unavailable

13

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 322-23

SCREW-HH
(Superseded to 321-9)

$5.49

$

In Stock, only 2 left!

0

16

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 117-6317

SHIELD-DIRT

$478.99

$

Usually ships in 3-6 days

0

18

Toro 115-4001-05

PLATE-STRAP,SHIELD

$

$

Currently unavailable

19

Toro 117-6316-05

BAR-CLAMP

$

$

Currently unavailable

20

Toro 115-4049

SCREW-HSH

$6.99

$

In Stock, only 1 left!

0

21

Toro 106-8871

BEARING-BALL

$39.99

$

In Stock, only 2 left!

0

22

Toro 114-2955

SEAL-GREASE

$98.99

$

In Stock, only 2 left!

0

23

Toro 117-6308

SHAFT-TRENCHER

$847.99

$

Usually ships in 3-6 days

0

24

Toro 112-4979

SPACER

$17.99

$

In Stock, only 2 left!

0

25

Toro 111199

BEARING-BALL

$133.99

$

In Stock, only 2 left!

0

26

Toro 114-2956

LOCKWASHER-BEARING

$41.99

$

Usually ships in 3-6 days

0

27

Toro 88-1450

LOCKNUT-BEARING

$51.99

$

In Stock, only 2 left!

0

28

Toro 117-6315

COLLAR-SPLINED

$203.99

$

In Stock, only 1 left!

0

29

Toro 104-1964

SPROCKET-TRENCHER

$326.99

$

In Stock, only 2 left!

0

30

Toro 3274-4

SCREW-HSH

$2.99

$

In Stock, Qty 10

0

31

Toro 137-3737-05

TRENCHER AUGER ASM (WELDED)

$

$

Currently unavailable

32

Toro 325-13

SCREW-HH

$0.99

$

In Stock, Qty 17

0

33

Toro 117-3479

WASHER-SADDLE

$18.99

$

In Stock, only 4 left!

0

34

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

36

Toro 340-77

FITTING-ELBOW, 90 DEG

$28.99

$

Usually ships in 3-6 days

0

36:1

Toro 237-22

O-RING

$2.99

$

In Stock, only 3 left!

0

36:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

37

Toro 115-4081

VALVE-CHECK

$209.99

$

Usually ships in 3-6 days

0

37:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

37:2

Toro 237-22

O-RING

$2.99

$

In Stock, only 3 left!

0

38

Toro 147-6707

DECAL-LIFT, TIE DOWN

$1.99

$

Usually ships in 0 days

0
