22983 (TRX-250) - Toro Trencher (SN: 413000000 - 415299999) Electrical Assembly Parts Diagram

Trencher

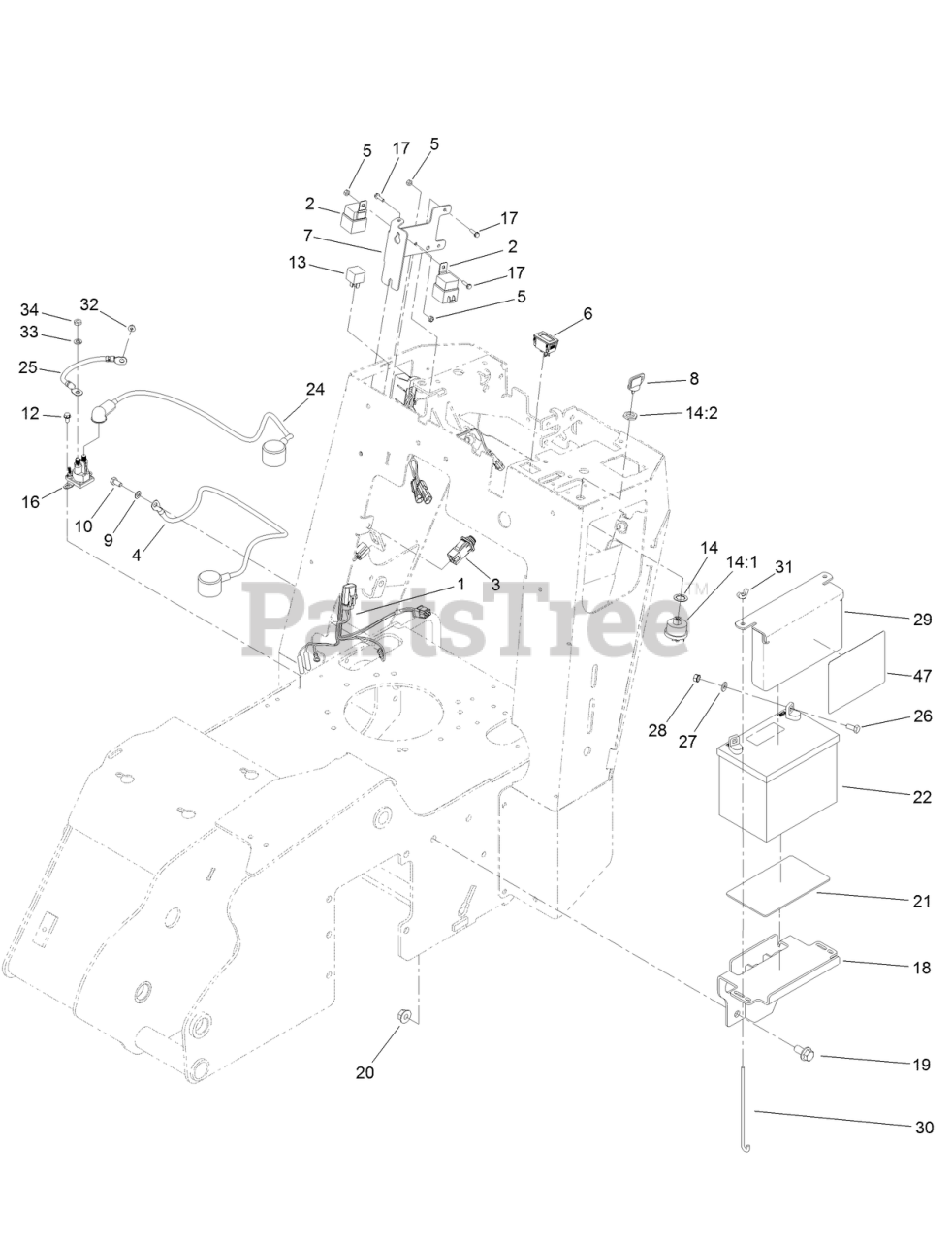

Electrical Assembly Parts Diagram

  • Title

1

Toro 138-7153

HARNESS-WIRE

$403.99

$

Usually ships in 3-6 days

0

2

Toro 99-7430

RELAY-MINI

$26.99

$

In Stock, Qty 5

0

3

Toro 100-1268

SWITCH-PLUNGER

$65.99

$

Usually ships in 3-6 days

0

4

Toro 138-3133

CABLE-BATTERY, NEGATIVE

$37.99

$

Usually ships in 3-6 days

0

5

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 13

0

6

Toro 120-2244

HOURMETER

$74.99

$

In Stock, only 4 left!

0

7

Toro 138-3104-03

BRACKET-ELECTRICAL

$53.99

$

Usually ships in 3-6 days

0

8

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

9

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, only 3 left!

0

10

Toro 322-2

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

12

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

13

Toro 98-7249

RELAY

$23.99

$

In Stock, Qty 12

0

14

Toro 88-9830

See Supercession: 104-2541
(Superseded to 104-2541)

$41.99

$

In Stock, Qty 20+

0

14:1

Toro 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 8

0

14:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

16

Toro 117-1197

SOLENOID

$49.99

$

In Stock, Qty 20+

0

17

Toro 32105-13

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

18

Toro 138-3114-03

TRAY-BATTERY

$146.99

$

Usually ships in 3-6 days

0

19

Toro 3234-6

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

20

Toro 32128-49

NUT-HHF

$2.49

$

In Stock, Qty 8

0

21

Toro 62-4300

PAD-SKID, ANTI

$21.99

$

Usually ships in 3-6 days

0

22

Toro 104-8162

BATTERY-DRY

$

$

Not available

24

Toro 138-3134

CABLE-BATTERY, POSITIVE ASM

$37.99

$

Usually ships in 3-6 days

0

25

Toro 138-3132

CABLE-BATTERY, POSITIVE

$13.99

$

Usually ships in 3-6 days

0

26

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

28

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 5

0

29

Toro 115-6621-03

PLATE-HOLD DOWN, BATTERY

$83.99

$

Usually ships in 3-6 days

0

30

Toro 1-633651

BOLT-HOLDDOWN

$8.49

$

In Stock, Qty 9

0

31

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 10

0

32

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

33

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

34

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

47

Toro 137-3882

DECAL-SERVICE

$18.99

$

Usually ships in 3-6 days

0
