22984 (TRX-300) - Toro Trencher (SN: 405600000 - 407679999) Handle Control Assembly Parts Diagram

Trencher

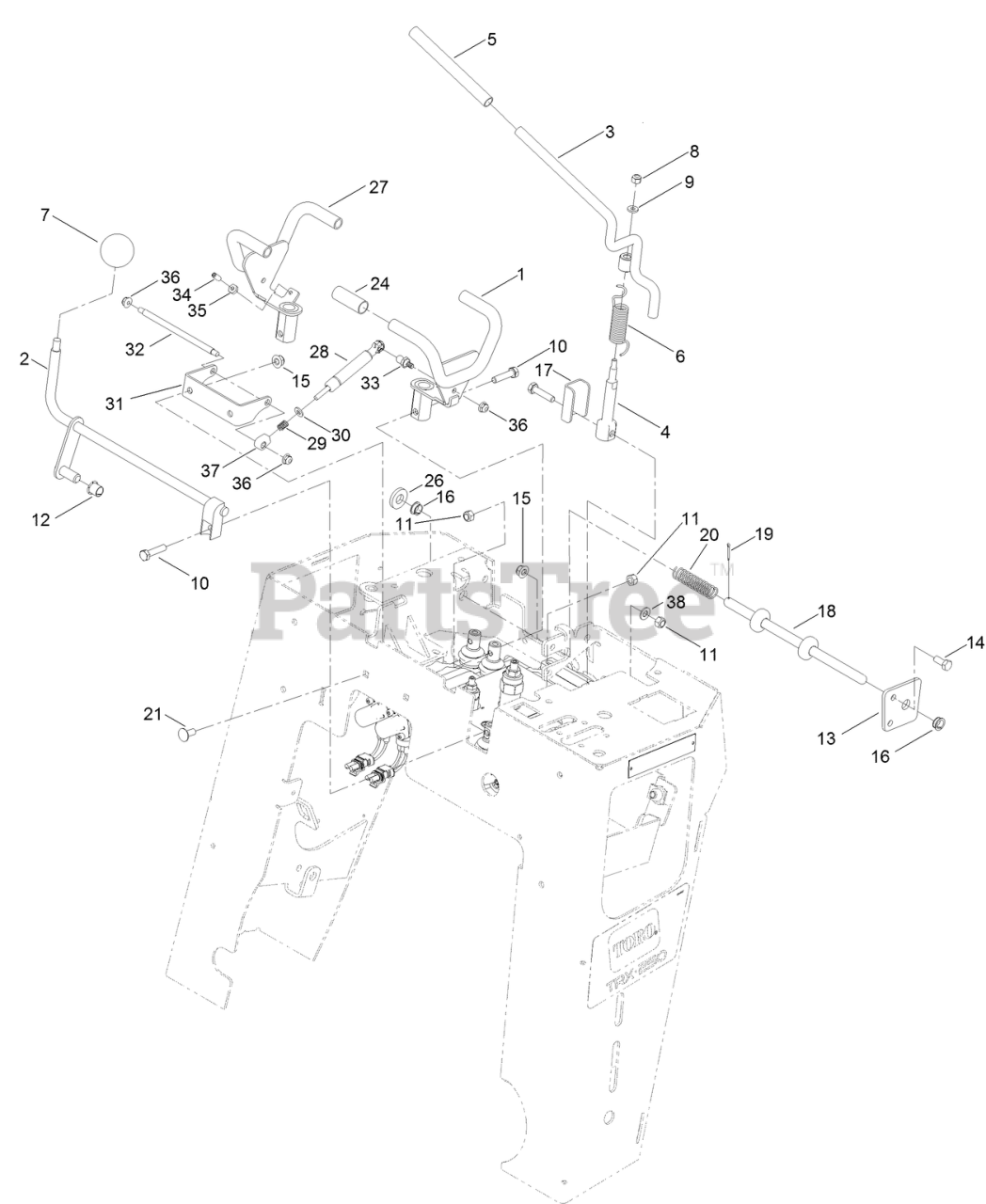

Handle Control Assembly Parts Diagram

  • Title

1

Toro 139-1303-03

HANDLE-TRACTION, LH
(Superseded to 140-5764-03)

$155.99

$

Usually ships in 3-6 days

0

2

Toro 139-1306

LEVER-LIFT

$132.99

$

Usually ships in 3-6 days

0

3

Toro 137-7651

AUXILIARY LEVER ASM

$87.99

$

Usually ships in 3-6 days

0

4

Toro 137-7649

LEVER-DRIVE, CHAIN

$40.99

$

Usually ships in 3-6 days

0

5

Toro 138-3168

GRIP

$4.49

$

Usually ships in 3-6 days

0

6

Toro 112-2738

SPRING-TORSION

$13.99

$

Usually ships in 3-6 days

0

7

Toro 233-21

KNOB

$14.99

$

Usually ships in 3-6 days

0

8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Toro 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 33114-035

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

11

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

12

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 20+

0

13

Toro 138-3123-03

PLATE-BUSHING

$35.99

$

Usually ships in 3-6 days

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 116-1393

BUSHING

$5.99

$

Usually ships in 3-6 days

0

17

Toro 138-3124

BRACKET-LEVER

$19.99

$

Usually ships in 3-6 days

0

18

Toro 138-3127

ROD-LOCKOUT
(Superseded to 138-7163)

$20.99

$

Usually ships in 3-6 days

0

19

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

20

Toro 95-4256

SPRING-COMPRESSION

$3.49

$

Usually ships in 3-6 days

0

21

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

24

Toro 139-1307

GRIP

$3.99

$

Usually ships in 3-6 days

0

26

Toro 107-3395

WASHER-HARDENED

$2.49

$

Usually ships in 3-6 days

0

27

Toro 139-1305-03

HANDLE-TRACTION, RH
(Superseded to 140-5765-03)

$155.99

$

Usually ships in 3-6 days

0

28

Toro 139-1314

DAMPER

$48.99

$

In Stock, only 2 left!

0

29

Toro 139-1321

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

30

Toro 139-1323

WASHER-SPCL

$0.99

$

Usually ships in 3-6 days

0

31

Toro 139-1299-03

BRACKET-DAMPER

$16.99

$

Usually ships in 3-6 days

0

32

Toro 139-1316

ROD-DAMPER

$27.99

$

Usually ships in 3-6 days

0

33

Toro 139-1315

STUD-BALL

$4.99

$

Usually ships in 3-6 days

0

34

Toro 3245-3

SCREW-SET, HS

$3.49

$

In Stock, only 4 left!

0

35

Toro 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

36

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

37

Toro 140-1122

FITTING-CLEVIS

$5.99

$

Usually ships in 3-6 days

0

38

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
