22999 (ST 424) - Ariens 20" Sno-Thro Snow Blower, 4hp Tecumseh (SN: 000001 - 009999) BLOWER PARTS LIST Parts Diagram

20" Sno-Thro Snow Blower, 4hp Tecumseh

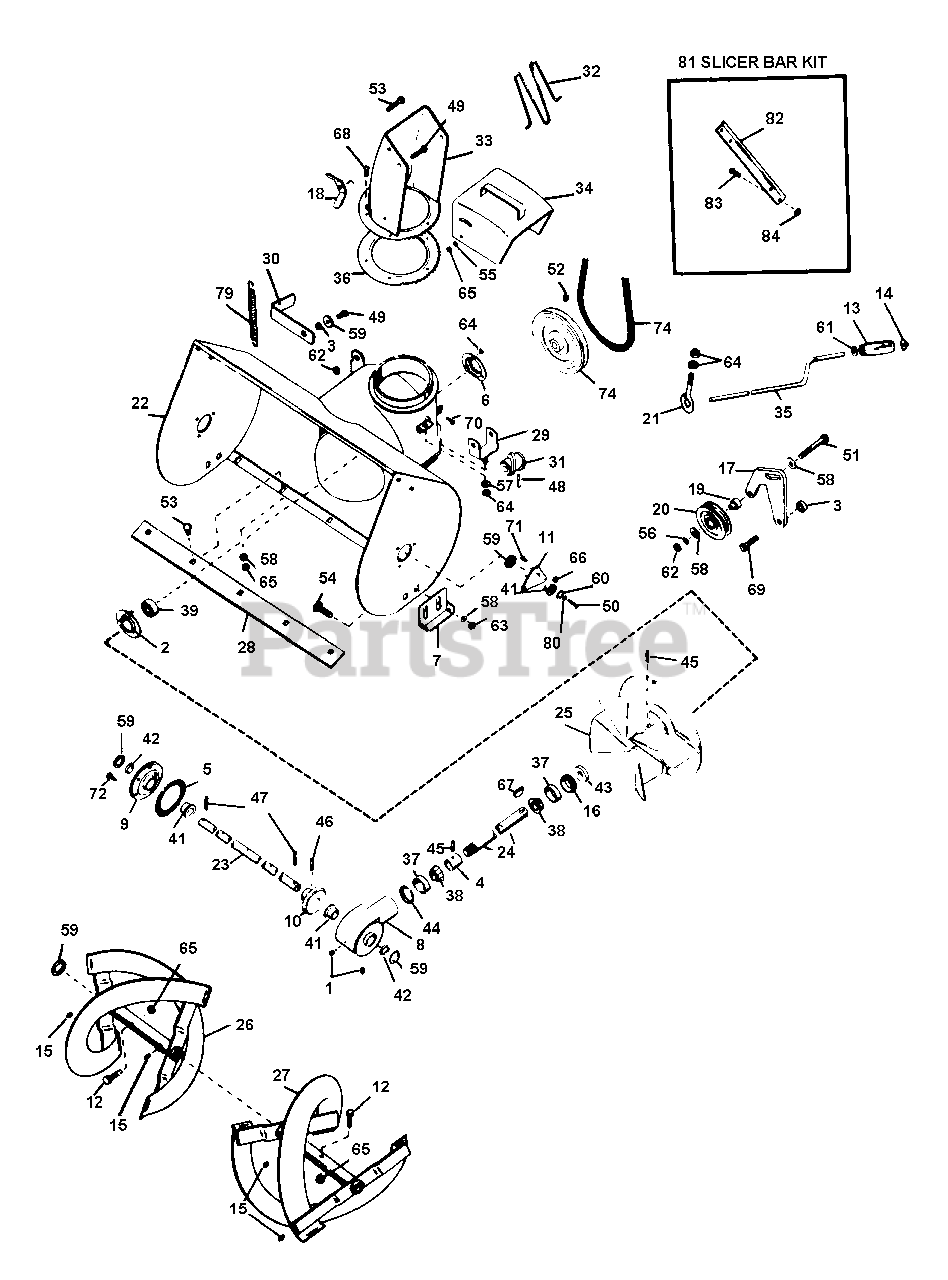

BLOWER PARTS LIST Parts Diagram

  • Title

1

Ariens 00113800

PIPE PLUG

$5.99

$

Usually ships in 4-12 days

0

2

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, Qty 8

0

3

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

4

Ariens 01010700

BEARING SPACER

$31.99

$

Usually ships in 4-12 days

0

5

Ariens 01010800

GASKET

$5.99

$

In Stock, only 1 left!

0

6

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, only 3 left!

0

7

Ariens 01016500

RUNNER
(Superseded to 02483859)

$19.99

$

In Stock, Qty 20+

0

8

Ariens 01018000

CASE, GEAR - C.I.

$

$

Not available

9

Ariens 01018100

GEAR CASE FLANGE

$

$

Not available

10

Ariens 01018300

HELICON GEAR - 41 TOOTH
(Superseded to 51001400)

$

$

Not available

11

Ariens 01018400

BEARING SUPPORT

$

$

Not available

12

Ariens 01019500

SHEAR BOLT YWZC
(Superseded to 51001500)

$4.99

$

In Stock, Qty 8

0

13

Ariens 01019700

HANDLE

$

$

Not available

14

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 7

0

15

Ariens 01035400

HYDRAULIC DRIVE FITTING

$5.99

$

In Stock, Qty 14

0

16

Ariens 01037100

ADJUSTMENT PLUG

$77.99

$

Usually ships in 4-12 days

0

17

Ariens 01038900

IDLER ARM

$33.99

$

Usually ships in 4-12 days

0

18

Ariens 01101200

WING NUT, .312-18
(Superseded to 07534800)

$7.99

$

In Stock, Qty 13

0

19

Ariens 01213100

SPCR, BRG .315X.50X.688X.281

$3.49

$

In Stock, Qty 6

0

20

Ariens 01213200

IDLER
(Superseded to 52007000)

$39.99

$

In Stock, Qty 15

0

21

Ariens 02204600

EYEBOLT

$

$

Not available

22

Ariens 02210100

BLOWER HOUSING

$

$

Not available

23

Ariens 02210200

FRONT GEAR SHAFT

$

$

Not available

24

Ariens 02210300

SHAFT
(Superseded to 52201000)

$475.99

$

Usually ships in 4-12 days

0

25

Ariens 02210400

FAN

$

$

Not available

26

Ariens 02210500

R H RAKE

$

$

Not available

27

Ariens 02210600

L H RAKE

$

$

Not available

28

Ariens 02210700

SCRAPER BLADE

$30.99

$

Usually ships in 4-12 days

0

29

Ariens 02210800

WORM CLEVIS

$

$

Not available

30

Ariens 02210900

CLTCH LEVER

$

$

Not available

31

Ariens 02211000

WORM GEAR

$

$

Not available

32

Ariens 02211200

SAFETY WIRE

$

$

Not available

33

Ariens 02211300

DISCHARGE CHUTE

$

$

Not available

34

Ariens 02211400

DEFLECTOR CHUTE
(Superseded to 53201300)

$

$

Not available

35

Ariens 02211500

CNTL CRANK
(Superseded to 02208100)

$

$

Not available

36

Ariens 02211900

LOWER COLLAR GEAR
(Superseded to 02216000)

$51.99

$

Usually ships in 4-12 days

0

37

Ariens 05404400

BRG-CUP 1.781X.475

$9.49

$

In Stock, Qty 20+

0

38

Ariens 05404500

BRG-CONE .750X.61

$22.99

$

In Stock, Qty 20+

0

39

Ariens 05406300

BRG-BALL .750X1.750X.50

$25.99

$

In Stock, only 2 left!

0

40

Ariens 05408000

BRG-BALL .500X1.38X.437

$5.99

$

In Stock, Qty 20+

0

41

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$12.99

$

In Stock, Qty 18

0

42

Ariens 05606100

SEAL 1.000X1.312X.150

$11.99

$

In Stock, Qty 7

0

43

Ariens 05606200

SEAL .750X1.499X.225

$6.99

$

In Stock, only 4 left!

0

44

Ariens 05703200

RG-RTNG INT 1.781 HSG X.062
(Superseded to 05707500)

$9.49

$

In Stock, only 1 left!

0

45

Ariens 05800700

PIN-ROLL .250X1.25

$0.99

$

In Stock, Qty 20+

0

46

Ariens 05802200

PIN-ROLL .313X1.38

$2.49

$

Usually ships in 4-12 days

0

47

Ariens 05803000

PIN-ROLL .188X1.50

$0.99

$

In Stock, Qty 20+

0

48

Ariens 05803400

PIN-ROLL .125X.75

$0.99

$

In Stock, Qty 9

0

49

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 12

0

50

Ariens 05902400

BLT-HEX .50-13X1.00 PL GR2
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

51

Ariens 05904500

BLT-HEX .31-18X1.50 PL GR2
(Superseded to 05952400)

$1.49

$

Usually ships in 4-12 days

0

52

Ariens 06001200

SCR-SET .32-18X.38 SKHCUPNL OH
(Superseded to 06005500)

$2.99

$

In Stock, Qty 17

0

53

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, only 4 left!

0

54

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.99

$

In Stock, Qty 20+

0

55

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$0.99

$

Usually ships in 4-12 days

0

56

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, only 4 left!

0

57

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$1.99

$

In Stock, only 2 left!

0

58

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 14

0

59

Ariens 06404600

WSHR-FL-STL 1.010X1.505X.062PL
(Superseded to 06436300)

$1.49

$

In Stock, Qty 16

0

60

Ariens 06404700

WSHR-FL-STL .511X1.441X.125 PL
(Superseded to 06436400)

$2.99

$

In Stock, Qty 14

0

61

Ariens 06405200

WSHR-FL-STL .382X.812X.023 PL
(Superseded to 06436500)

$2.49

$

In Stock, only 2 left!

0

62

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

63

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

64

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

65

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

66

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 17

0

67

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 7

0

68

Ariens 06803100

RVT-POP.125 X .294 DOME

$

$

Not available

69

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.99

$

Usually ships in 4-12 days

0

70

Ariens 07001000

BLT-SCRHFWH .38-16X.50 PL

$3.99

$

Usually ships in 4-12 days

0

71

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

72

Ariens 07001200

BLT-SERHFWH .25-20X.75 PL
(Superseded to 07049400)

$2.99

$

Usually ships in 4-12 days

0

73

Ariens 07205600

V-BELT, 4L-WRAPPED

$31.99

$

In Stock, Qty 5

0

74

Ariens 07303600

PLY-? 8.0X.75
(Superseded to 07307100)

$

$

Not available

75

Ariens 07801000

SNO-THRO HELICON PATENT LABEL

$

$

Not available

76

Ariens 07801200

SNO-THRO DECAL

$

$

Not available

77

Ariens 07801400

CAUTION LABEL
(Superseded to 52416300)

$58.99

$

In Stock, only 1 left!

0

78

Ariens 07805800

IN OUT LABEL
(Superseded to 07822400)

$

$

Not available

79

Ariens 08300400

SG-TENS .125X.437X5.5 WLD 20

$20.99

$

In Stock, only 1 left!

0
